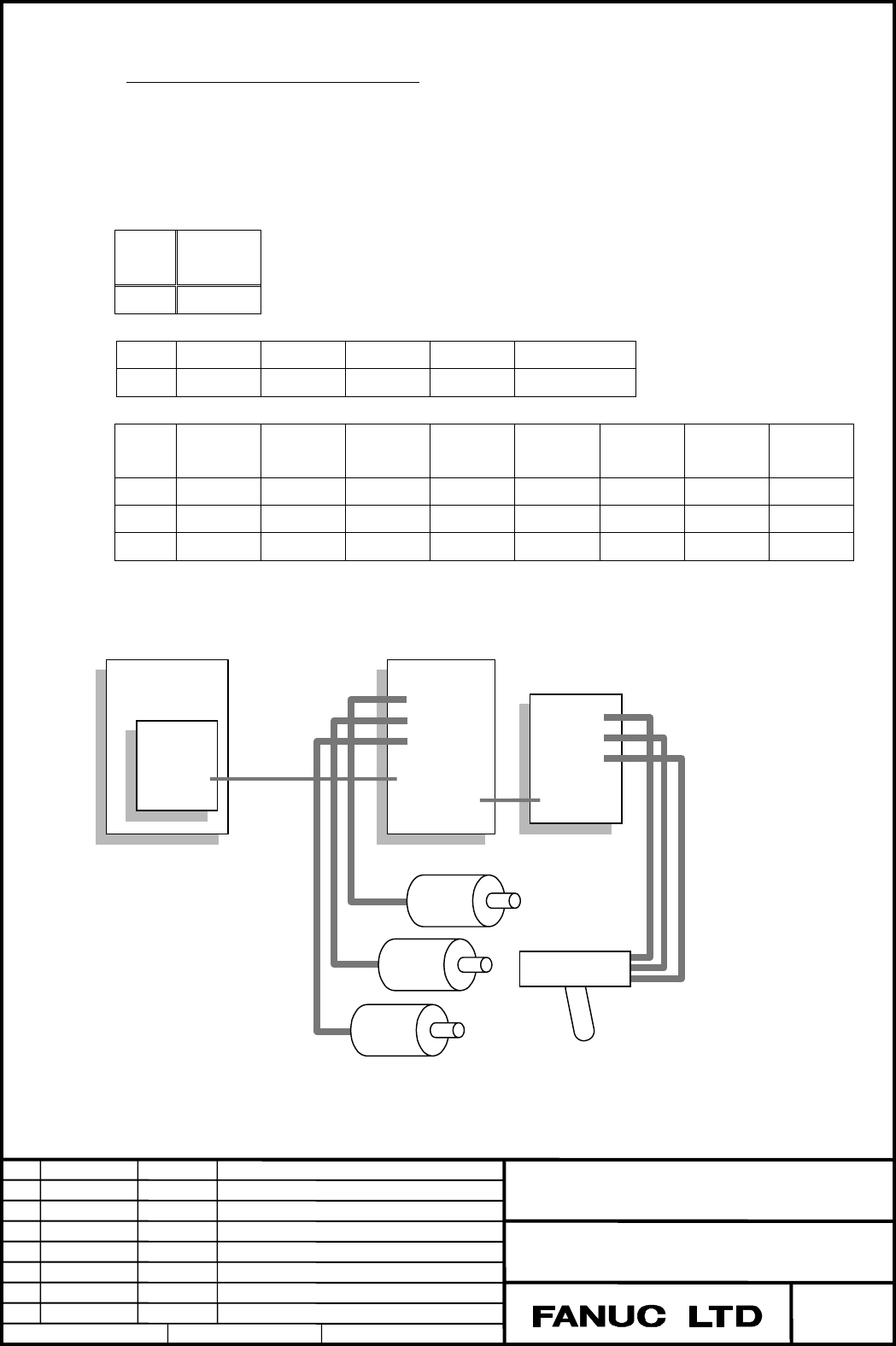

Example of parameter settings
The machine with 3 axes (X, Y and Z axis), 3-axes amplifier, and the sum of position
feedback and the sum of feedback via the separate detector interface unit for all axes
are read.
No.
1902#0
FMD
1
No. 1910 1911 1912 1913 1914~1919
01216 40
No. 1023
1905#0
FSL
1905#6
PM1
1905#7
PM2
1936 1937
2016#4
SSS
2223#1
PFS
X10100011
Y21101011
Z30102011
CNC
COP10A
Servo control card
JF1
JF2
JF3
COP10B
COP10A
SERVO AMPLIFIER
JF101
JF102
JF103
COP10B
SEPARATE DETECTOR
INTERFACE UNIT
Digitizing probe
FSSB
cable
X axis
Motor
Y axis
Motor
Z axis
Motor
Feedback of X direction
Feedback of Y direction
Feedback of Z direction
