2. Matters to be attended to operate DNC operation or Memory operation
*3
with memory card in
PCMCIA port
*3: Memory operation with memory card corresponds only by FS30i series.
When operating DNC operation or Memory operation with these CF cards, pay attention to the
following matters.
(1) In case of 16i series, 15i series and 0i-C/0i Mate-C, it is necessary to use the following PCMCIA
card attachment.
• 16i series and 15i series (In case of using CF card, it is necessary to use CF card adapter, too)
A02B-0236-K163 (for 7.2" or 8.4"LCD unit)
A02B-0236-K164 (for 9.5" or 10.4"LCD unit)

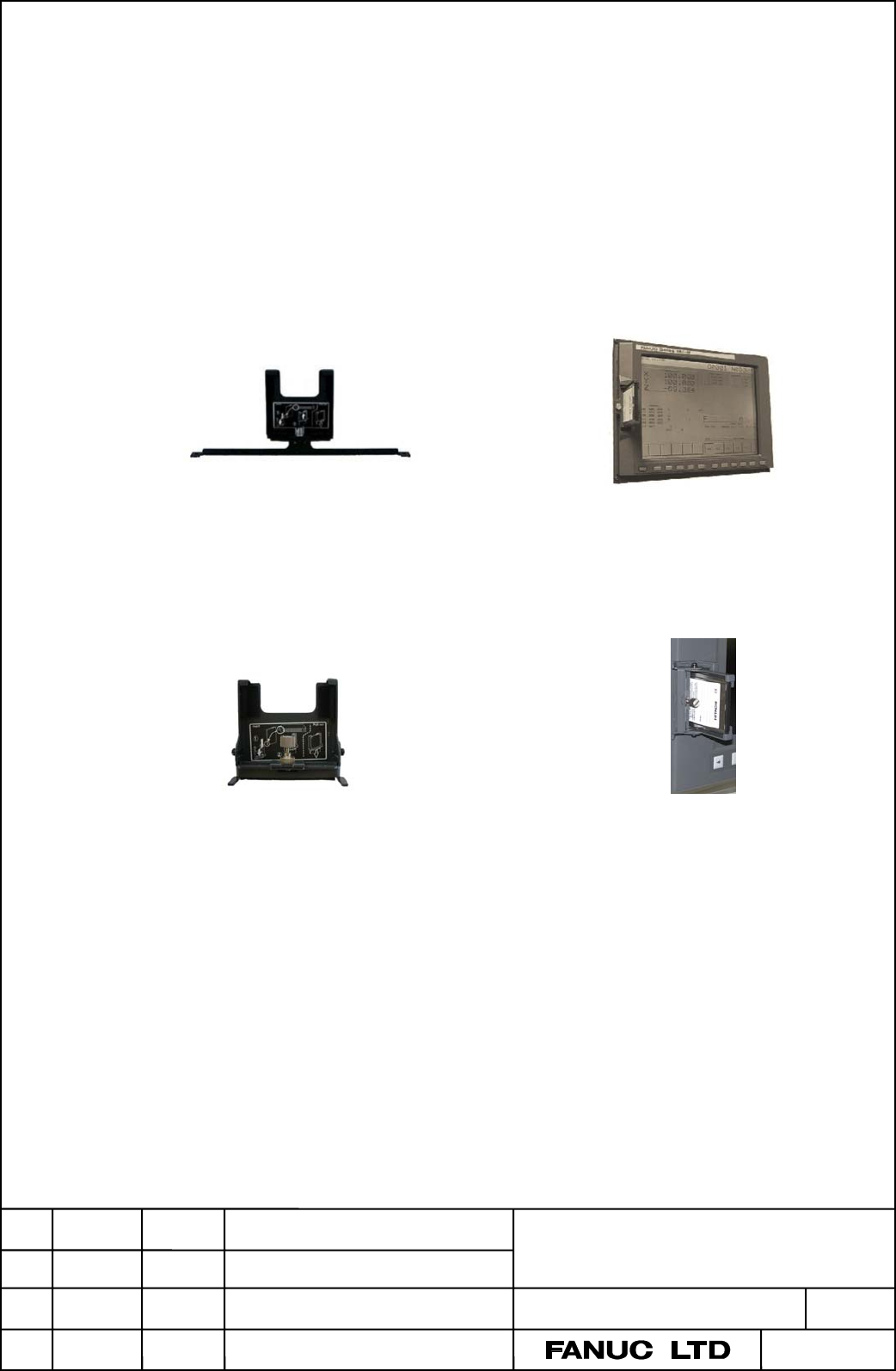

Fig. 2-1) PCMCIA card attachment Fig. 2-2) Appearance after connection
for 16i series and 15i series
• 0i-C/0i Mate-C (In case of using CF card, it is necessary to use CF card adapter, too)
A02B-0309-K160 (for all display unit)
Fig. 2-3) PCMCIA card attachment Fig. 2-2) Appearance after connection
for 0i-C/0i Mate-C
(2) In case of 30i series, it is unnecessary to use PCMCIA card attachment. You set a CF card in the
CF card adaptor, A02B-0303-K150, and then insert the CF card adaptor into the PCMCIA slot.
You must fix it depressing the lock lever of the PCMCIA slot without fail. Please close the lid in
the memory card interface when you use it. (For all display unit)
