FANUC Servo Amplifier ßi Series I/O Link Option Modification from I/O Link ß Additional Manual Page 12

Additional Manual
FANUC SERVO AMPLIFIER βi series I/O Link Option
Modification from I/O Link β
EDIT
DRAW. NO. CUST
TITLE
DESCRIPTION
DESIG.
DATE
A-79487E
12
/
23
01
04.03.15
SHEET
Newly designed

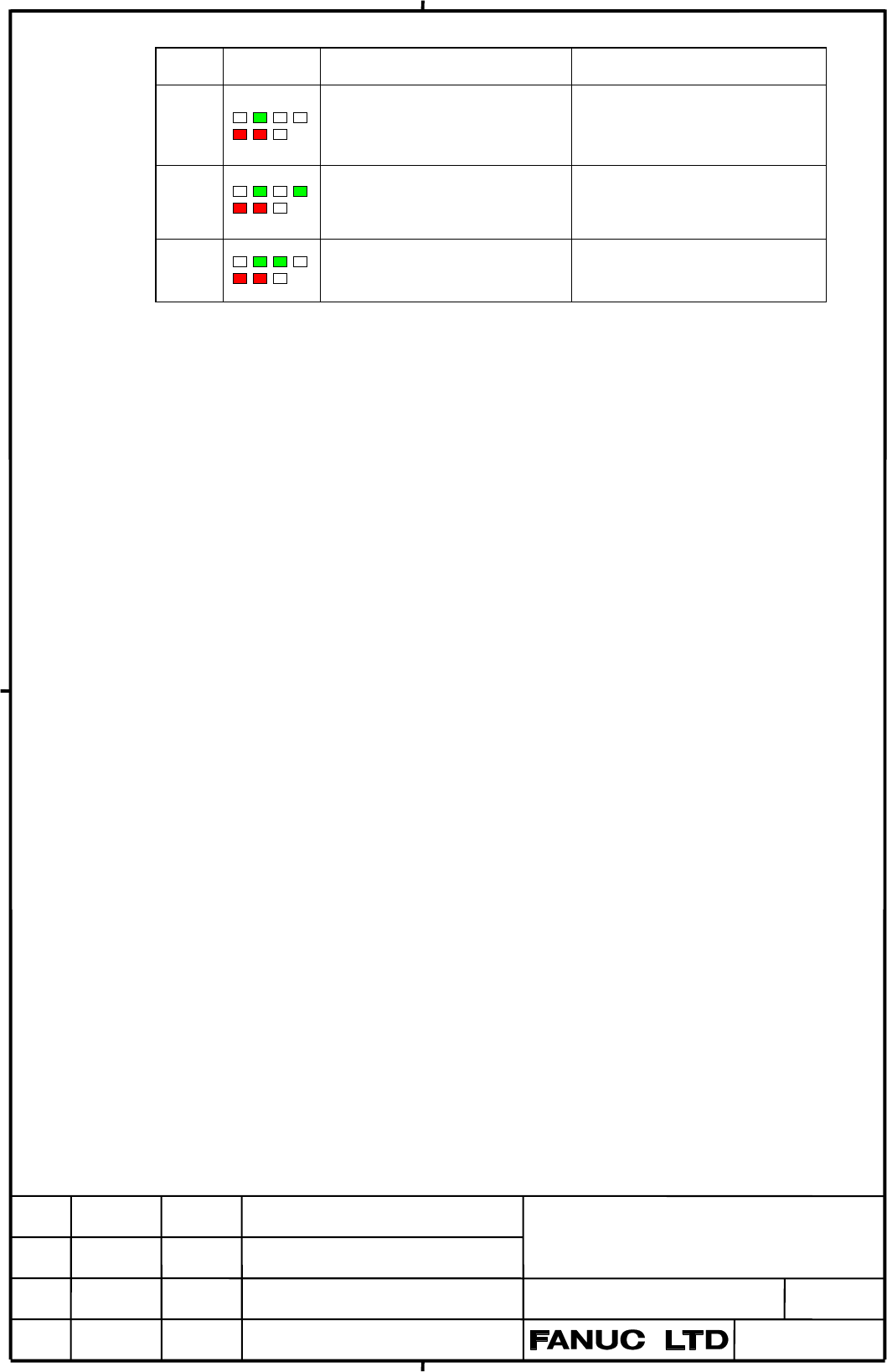

No. LED display
Description
Countermeasure
319
When the absolute pulse coder is
used, the motor has not yet
rotated through more than one
turn after the first power-up.
Cause the motor to rotate through
more than one turn in jog feed
mode, then turn the power off
then back on.
350
The battery voltage of the
absolute pulse coder is low.
Replace the battery.
Restart the operation from
reference position return.
351
The battery voltage of the
absolute pulse coder is low.
(warning)
Replace the battery.
