FANUC Servo Amplifier ßi Series I/O Link Option Modification from I/O Link ß Additional Manual Page 8

Additional Manual
FANUC SERVO AMPLIFIER βi series I/O Link Option
Modification from I/O Link β
EDIT
DRAW. NO. CUST
TITLE
DESCRIPTION
DESIG.
DATE
A-79487E
8
/
23
01
04.03.15
SHEET
Newly designed

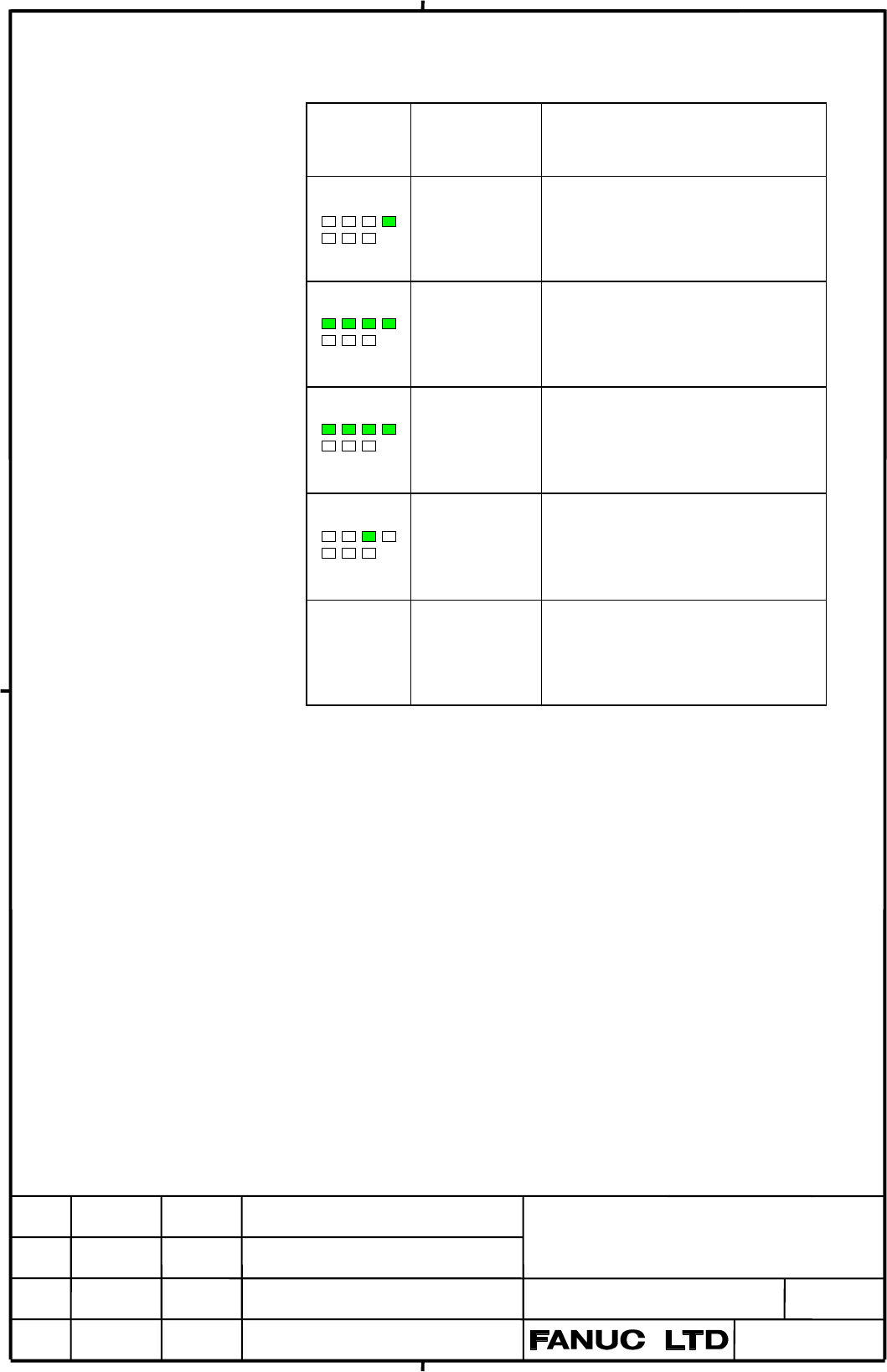

Table 4.1 LED Indications and Meanings
LED
indication
State Description
Servo amplifier
unit not ready
This indicates that control power (+24
VDC) is supplied. No alarm is issued,
but the motor is not activated.
Servo amplifier
unit ready
This indicates that the motor is
activated, and that commands can now
be accepted.
Blinking
Command being
executed
This indicates that an accepted
command is now being executed.
Blinking
Parameters being
loaded
This indicates that parameters are
being loaded in a batch from the
power mate CNC manager.
Indication
other than
the above
Alarm
An alarm is issued.
For information about alarms, see the
explanation of troubleshooting in Part
III.
