FANUC Series 30i-MODEL A
Tool management function oversize
tools su
pp
ort

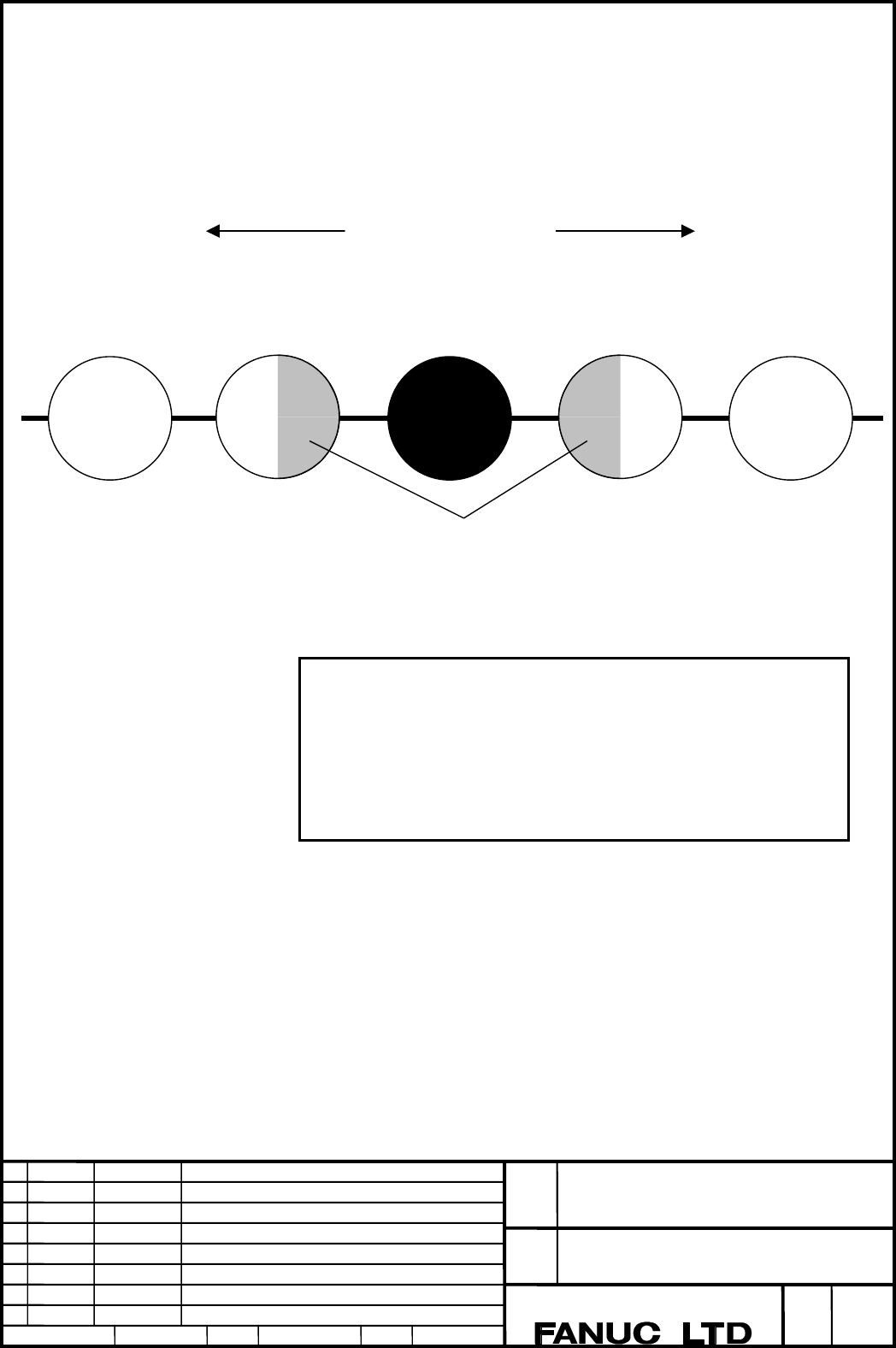

Cartridge of chain type
The area occupied by a tool stored in a cartridge of chain type is described below.
As with the matrix type, input data on the tool figure setting screen. In this case, set pots to
be occupied only in the left and right directions. The specification of pots in the upper and
lower directions and a figure are ignored.
N: Pot No.
N+1 N+2 N-1 N-2
Reference pot
Occupied area
Fig. 4 : For tool figure data 19
Right direction
Left direction
NOTE
・Tool figure data cannot be modified if the tool for which the tool figure
number is set is registered in the cartridge.
・When changing the tool figure number of a tool registered in the
cartridge, ensure that the figure after the change does not interfere with
other tools. If interference with other tools occurs, a warning is issued
to disable an attempt to change the tool figure number.
G10 format
By G10 data input, an oversize tool number can be set in the tool management data.
Moreover, tool figure data can be set.
<Registration of new tool management data>
G10 L75 P1;
N＿ ; Specify tool management data number
T_ C_ L_ I_ B_ Q_ H_ D_ S_ F_ J_ K_A_；
P0 R_ ; Customize data ０
P1 R_ ; Customize data １
P2 R_ ; Customize data ２
P3 R_ ; Customize data ３
