B-65262EN/03 FANUC AC SERVO MOTOR αiS SERIES 3.SPECIFICATIONS AND CHARACTERISTICS

- 129 -

odel Specificatio

A06B-0272-B

□

Data sheet

Parameter Symbol Unit

Stall Torque

(*)

Ts 40 Nm

408 kgfcm

Stall Current

(*)

Is 36.2 A (rms)

Rated Output

(*)

Pr 5.5 kW

7.3 HP

Rating Speed

Nr 3000

min

-1

Maximum Speed

Nmax 4000

min

-1

Maximum Torque

(*)

Tmax 115 Nm

1170 kgfcm

Rotor Inertia

Jm 0.0099

kgm

0.101

kgfcms

Rotor Inertia (with Brake)

Jm 0.0105

kgm

0.107

kgfcms

Torque constant

(*)

Kt 1.10 Nm/A (rms)

11.3 kgfcm/A (rms)

Back EMF constant (

１

１１

１

phase)

(*)

Ke 39

V (rms)/1000 min

-1

Kv 0.37 V (rms)sec/rad

Armature Resistance (1 phase)

(*)

Ra 0.058

Mechanical time constant tm 0.001 s

Thermal time constant tt 40 min

Static friction Tf 1.2 Nm

12 kgfcm

Weight w28 kg

Weight (with Brake) w34 kg

Maximum Current of Servo Amp. Imax 160 A (peak)

Value

(*) The values are the standard values at 20

℃

and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting,

and input voltage of the digital servo software. (The above figures show average values.)

These values may be changed without notice.

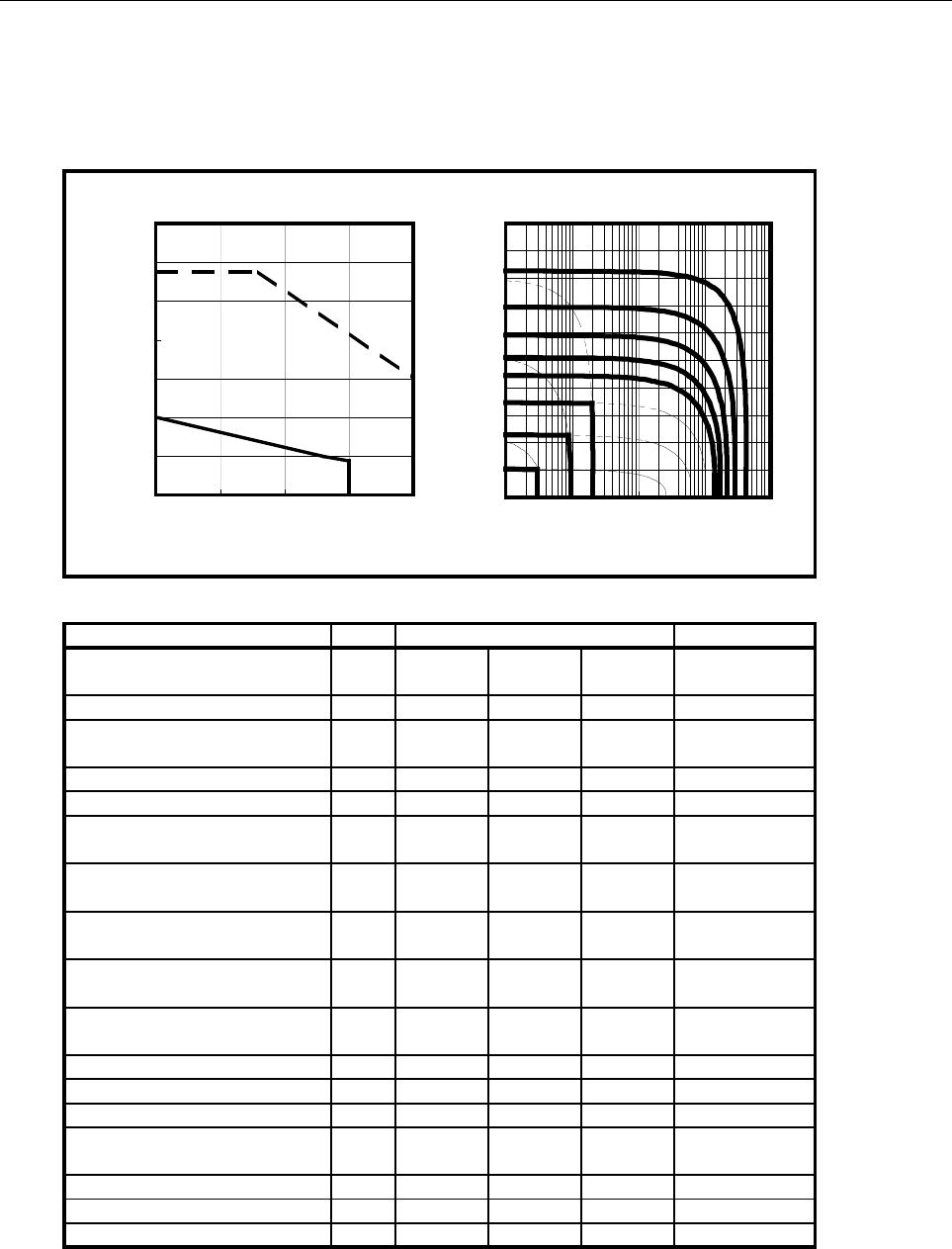

@40/4000*s

Over Load Duty

100

1 10 100 1000 10000

"On" time (sec)

Duty (time%)

Speed-Torque Characteristics

100

120

140

0 1000200030004000

Speed (min

-1

)

Torque (Nm)

Intermitting

Operation

110%

120%

130%

140%

150%

170%

210%

MAX

Continuous

Operation
