AC Servo Motor Alpha i/is Series Descriptions Page 277

Descriptions

Page of 368

/ 368

B-65262EN/03 FANUC AC SERVO MOTOR α(HV)i SERIES 5.CONNECTION OF POWER LINE

- 259 -

5 CONNECTION OF POWER LINE

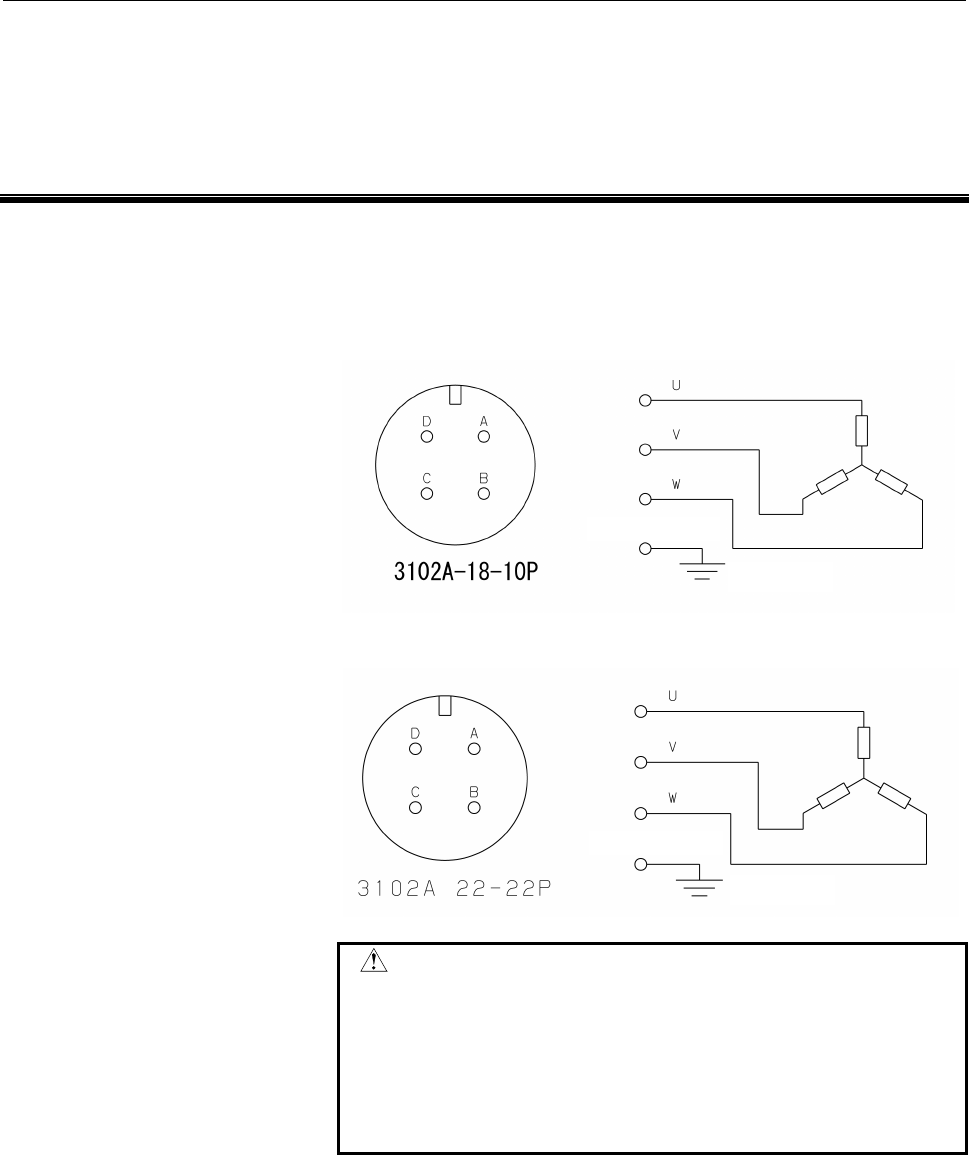

This chapter describes the connecting table of the motor side of the

motor power line. Other connectiong table for using the motor, refer

to "I-2.2.2 Connection of servo motor".

Models α

αα

α4/4000HVi and α

αα

α8/3000HVi

Motor body

Grounding plate

Models α

αα

α12/3000HVi and α

αα

α22/3000HVi

Motor body

Grounding plate

CAUTION

The motors should be installed with their connector

facing downward as long as possible. When it is

impossible to install a motor in this position, allow slack

in the cable to keep liquids such as a dielectric fluid from

going along the cable into the cable or motor. If there is a

possibility that the motors and connectors get wet,

provide a cover to protect them.
