Example
Specify the name of the spindle position(111) is “SP1”, the name of the wait
position (121) is “WT1”.
G10L77P4; Setting of a name of the spindle and the wait
position mode
N111; Specify the spindle position 1
P1 R83; ASCII code of “S” is 53h
P2 R80; ASCII code of “P” is 50h
P3 R49; ASCII code of “1” is 31h
N121; Specify the wait position 1
P1 R87; ASCII code of “W” is 57h
P2 R84; ASCII code of “T” is 54h
P3 R49; ASCII code of “1” is 31h
G11; Mode cancel

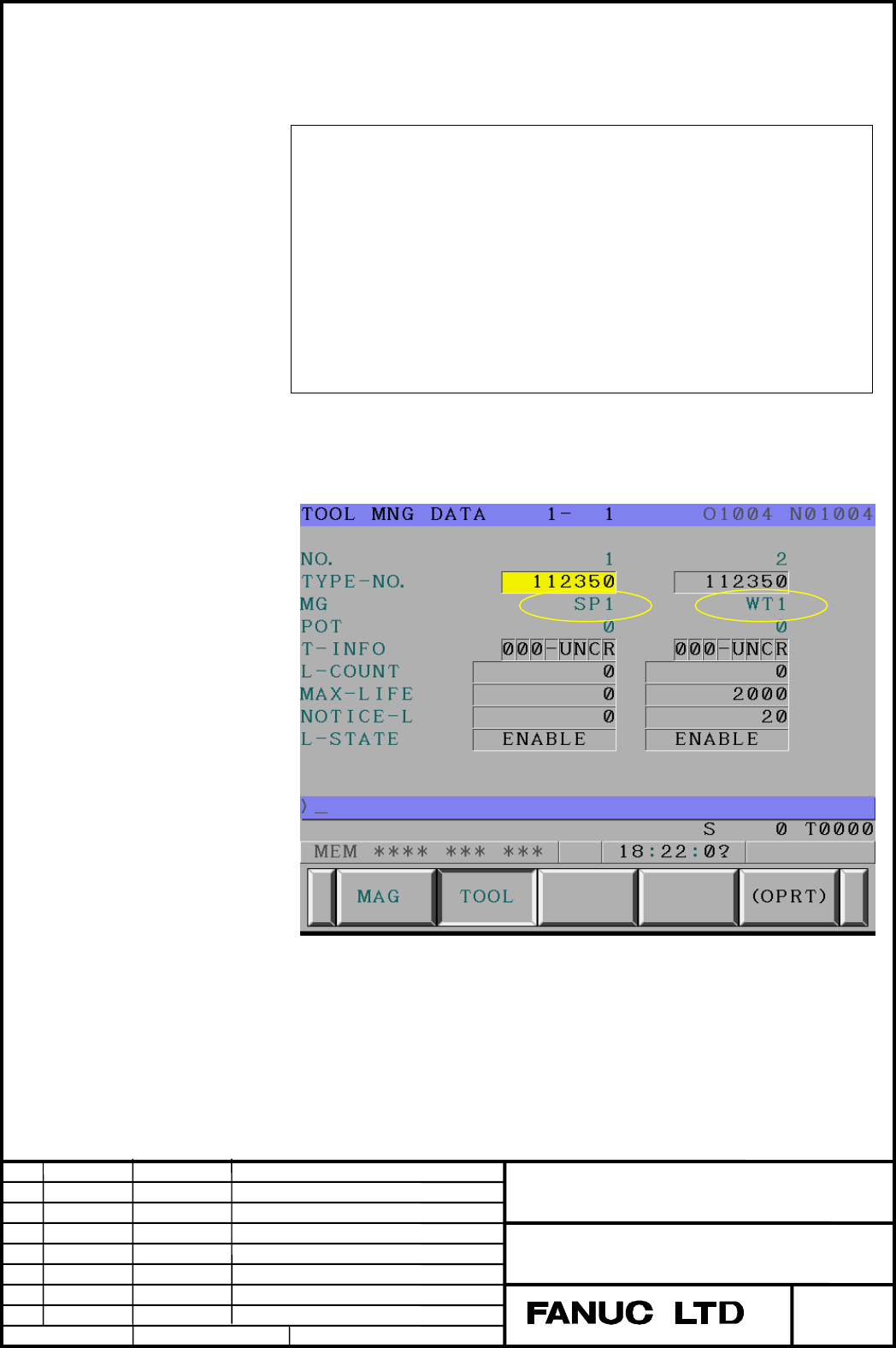

At the MG item of the tool management data table screen, the spindle
position 1 is displayed as “SP1”, the wait position 1 is displayed as “WT1”.
Setting the name of the spindle 1 to “SP1”, the name of the wait 1 to “WT1”
