Example) When the pulses for one rotation (360000) are specified to the tool axis (master

axis) on the following conditions, the pulses for position control are distributed as

figure 2.6.

Hob threads L : 10

Number of teeth of the work T : 100

Number of pulse per one revolution of position detector on the tool axis A : 360000

Number of pulse per one revolution of position detector on the work axis B : 360000

Synchronous ratio :

100

360000

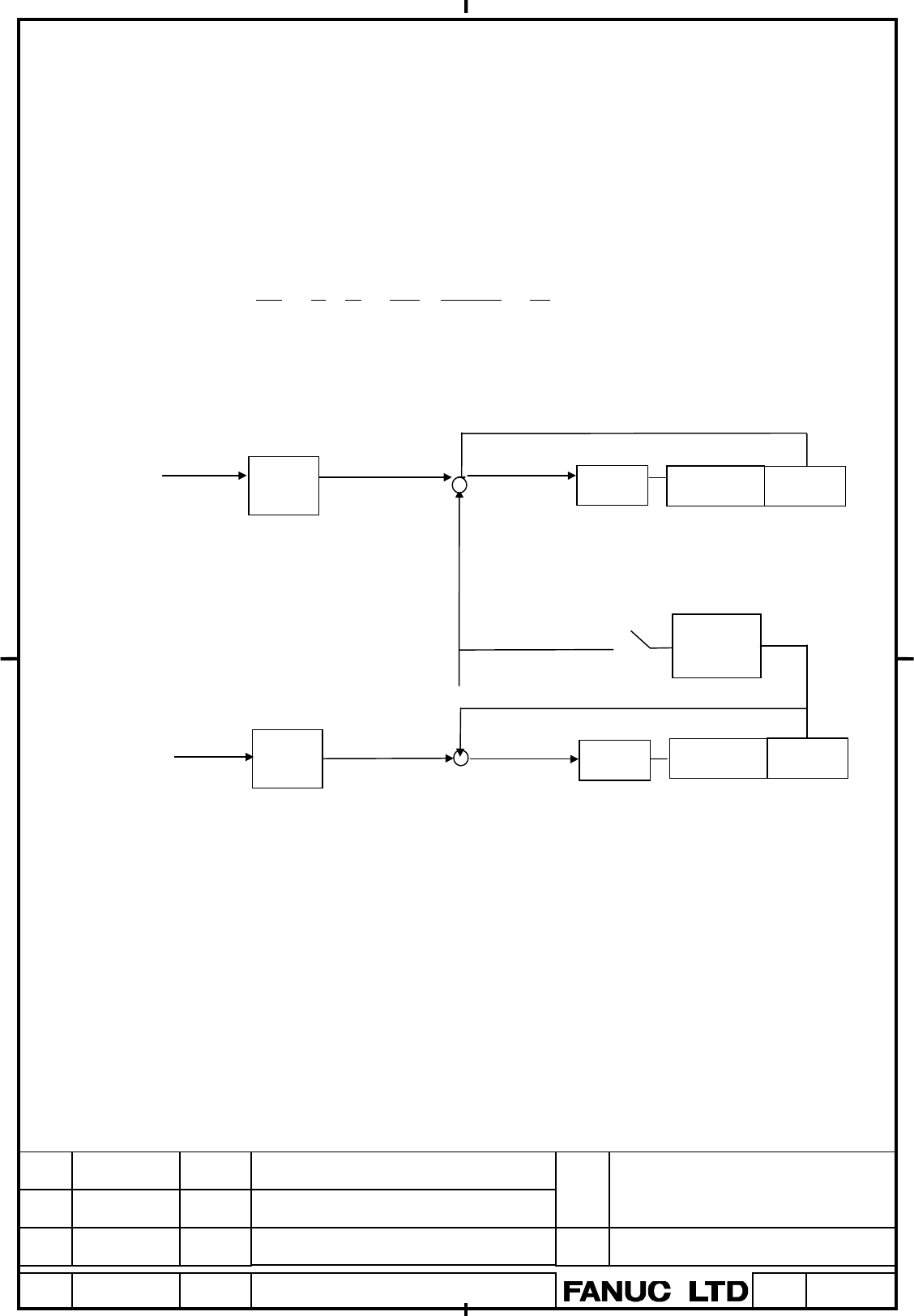

Fig.2.6 Pulse distribution

As Fig. 2.6, when 360000 pulses (Number of pulse for one rotation of the master axis)

are specified, the pulses for slave axis by EGB are equal to the value which is multiplied

to the number of pulse for one rotation of the slave axis by the ratio of Hob thread and

number of teeth (rotation ratio between master axis and slave axis).

360000

× 1/10 = 36000

Position feedback

36000

360000

EGB

Slave axis

Cs command

Motor

*CMR

(

*1)

360000

*K2/K1

(*1/10)

*CMR

(

*1)

Motor

Workpiece

Detector

K2/K1 : Synchronous ratio

Master axis

Cs command

Detector

Tool axis
