2.3 Starting/canceling of synchronization
When the rotation of the tool axis (master axis) starts after G81 is specified, the EGB
synchronization starts with the synchronous relationship specified in G81 block, and the
rotation of the workpiece axis (slave axis) starts. When the EGB synchronization starts,
the synchronization mode signal SYNMOD(F65#6) is turned to “1”.
When the rotation of the tool axis is stopped, the workpiece axis stopped in
synchronism. Then the EGB synchronization is canceled by specifying G80. When the
EGB synchronization is canceled, the synchronization mode signal SYNMOD(F65#6) is
turned to “0”.
G81 cannot be specified again during the EGB synchronization. Moreover, the
specification of T, L, Q, and P cannot be modified during the synchronization. Specify
the starting and canceling of synchronization at the tool axis (master axis) stopping.

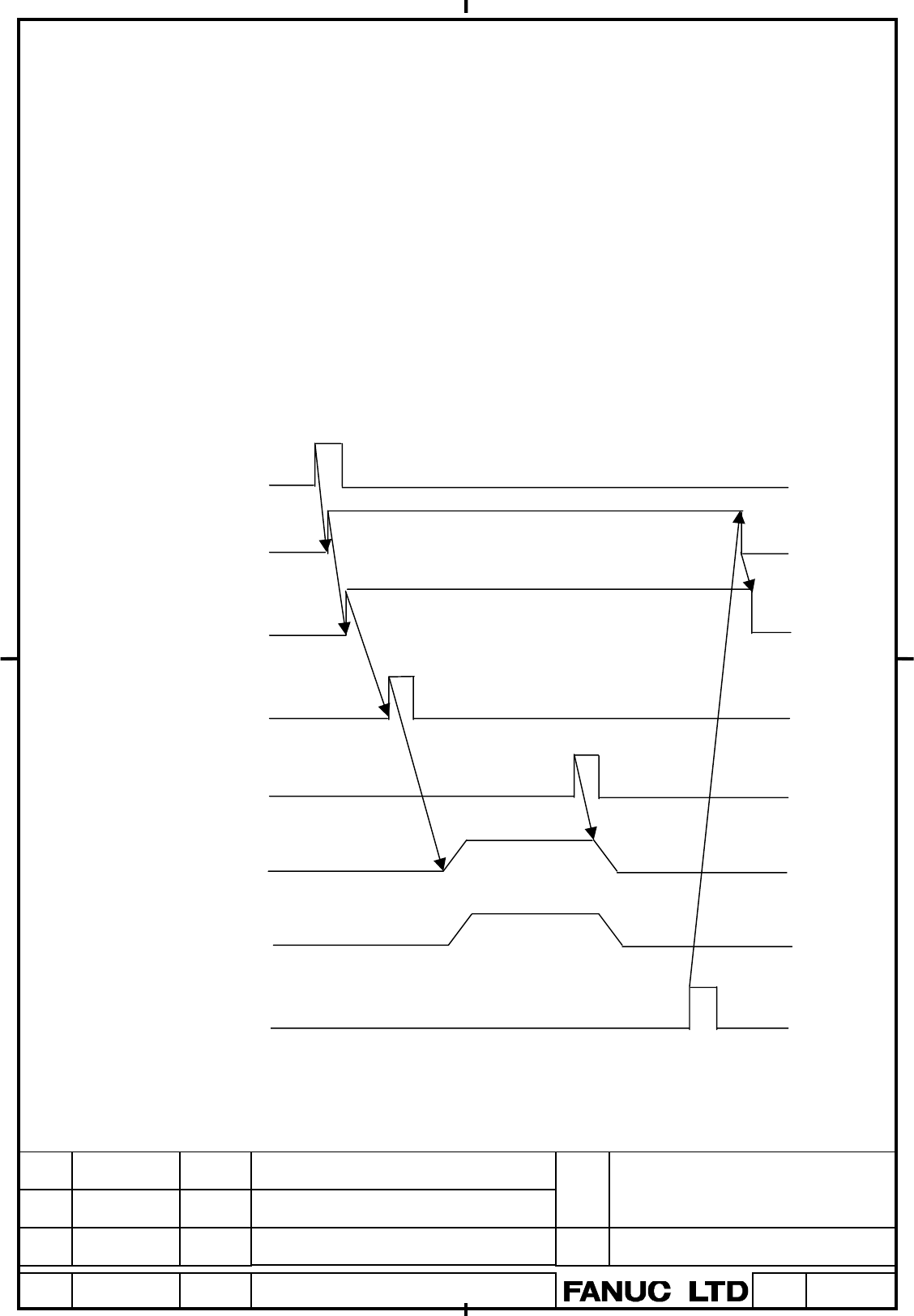

Fig.2.3 Example timing for starting/canceling synchronization
Synchronization
mode signal
SYNMOD<F65#6>
Synchronization start
command (G81)
Synchronization mode
Tool axis rotation
command
Tool axis stop
command
Tool axis rotation
speed
Work axis
rotation speed
Synchronization cancel
command (G80)
