Fanuc Synchronous Built-In Spindle Motor BiS Series Descriptions Page 17

Descriptions
B-65342EN/01 SPECIFICATIONS 1.SPECIFICATIONS
- 3 -

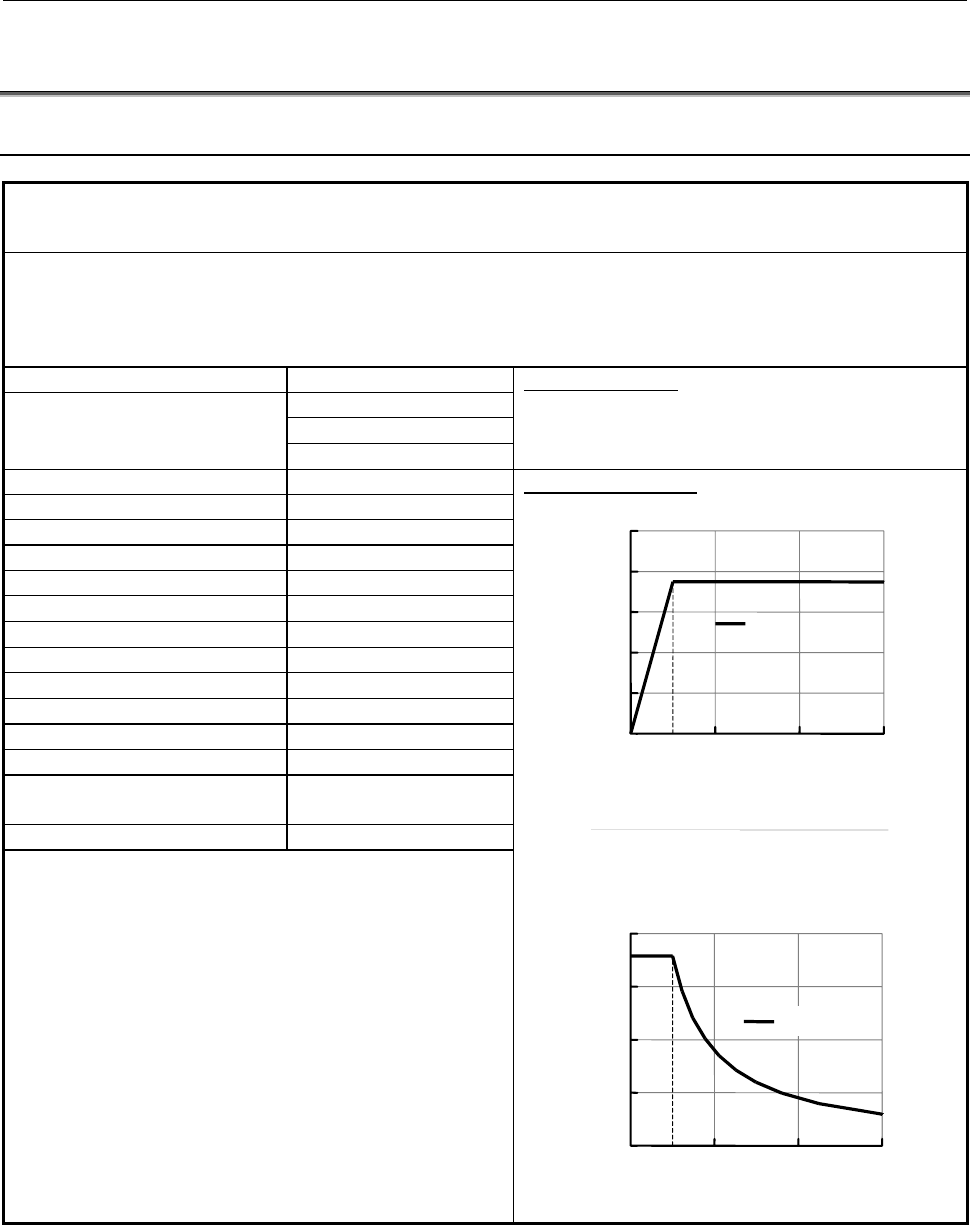

1.1 132 FRAME
1.1.1 132 Frame Specifications
Model: BiS132L2/6000
A06B-1842-B141#0P4A
Amplifier A06B-6122-H045#H553 (αiSP-45HV Type B)
Sub module A06B-6111-H403 (SSM-100)
O-Ring Kit A06B-1840-K002
Sensor α
iBZ, αiCZ (*) Check the permissible speed of the sensor.
Amplifier Input 460 V
Max. 430 V
Max. 100 A
Motor input
Rated 77 A
PSM selection data
* These are not guaranteed values as motor output.
Maximum Power 34 kW
Constant Power 7.5 kW
Mass of Stator 20 kg Output characteristics
Mass of Rotor 7 kg
Rotor moment of Inertia 0.023 kgm
2
Cooling Power More than 4 kW
Cooling medium flow rate More than 12 L/min
Temperature of medium inlet 22 °C
The rise of outlet from inlet 10 K
Density of medium 0.88 g/cm
3
Specific heat 1.78 J/gK
Thermal class F
Degree of protection Main body IP00 (*2)
Built-in Must be minimum IP54
Allowable angular acceleration
and deceleration (*1)
A06B-1842-B141 12000 rad/sec
2
(*1)Danger :
In any conditions, the angular acceleration (deceleration) of
the spindle must never exceed this value. The excess
acceleration(deceleration) might cause a slip of the rotor, and
in the worst case, there is some possibility being
uncontrollable state because of the loss of pole position.
If some accident is happen, such as the crash of spindle etc.,
the motor never been restarted without running a pole
position detecting function.
(*2)Notice :
The stator is IP00 itself. Even if the stator is resin molded, the
performance for environment is same as non molded motor.
Therefore protection class must be IP54 or more.
Power
7.5
7.5kW
0
2
4
6
8
10
0 2000 4000 6000
min
-
1
kW
S1 Cont.
1000
1000
Torque
71.6
0
20
40
60
80
0 2000 4000 6000
min
-
1
Nm
S1 Cont.
