Fanuc Synchronous Built-In Spindle Motor BiS Series Descriptions Page 23

Descriptions

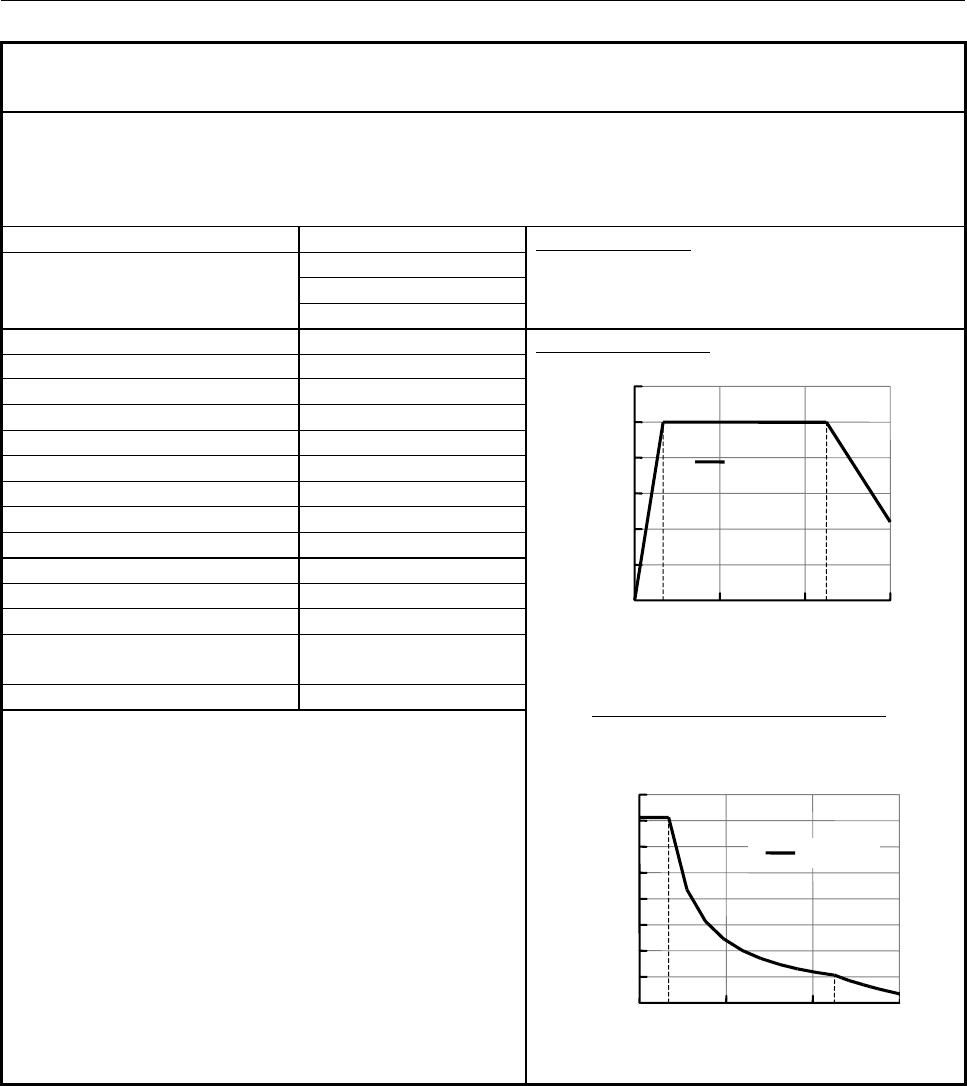

B-65342EN/01 SPECIFICATIONS 1.SPECIFICATIONS
- 9 -
Model: BiS160L6/6000
A06B-1856-B141#0P4A
Amplifier A06B-6122-H045#H553 (αiSP-45HV Type B)
Sub module A06B-6111-H403 (SSM-100)
O-ring Kit A06B-1850-K002
Sensor α
iBZ, αiCZ (*) Check the permissible speed of the sensor.
Amplifier Input 460 V
Max. 430 V
Max. 100 A
Motor input
Rated 77 A
PSM selection data
* These values are not guaranteed for motor output.
Maximum Power 60 kW
Constant Power 25 kW
Mass of Stator 70 kg Output characteristics
Mass of Rotor 24 kg
Rotor moment of Inertia 0.120 kgm
2
Cooling Power More than 12 kW
Cooling medium flow rate More than 15 L/min
Temperature of medium inlet
20 ℃
The rise of outlet from inlet 22 K
Density of medium 0.88 g/cm
3
Specific heat 1.78 J/gK
Thermal class F
Degree of protection Main body IP00 (*2)
Built-in Must be minimum IP54
Allowable angular acceleration and
deceleration (*1)
A06B-1856-B141 7100 rad/sec
2
(*1)Danger :
In any conditions, the angular acceleration (deceleration) of the
spindle must never exceed this value. The excess
acceleration(deceleration) might cause a slip of the rotor, and
in the worst case, there is some possibility being uncontrollable
state because of the loss of pole position.
If some accident is happen, such as the crash of spindle etc.,
the motor never been restarted without running a pole position
detecting function.
(*2)Notice :
The stator is IP00 itself. The protection class of the stator
housing must be IP54 or more. Even if the stator is resin
molded, the performance for environment is same as non
molded motor.
Torque
356.3
0
50
100
150
200
250
300
350
400
0 2000 4000 6000
min
-
1
Nm
S1 Cont.
Power
25kW
11
0
5
10
15
20
25
30
0 2000 4000 6000
min
-
1
kW
S1 Cont.
670
670
4500
4500
