3-dimensional cutter compensation Additional Manual Page 20

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
19/
38
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa
1.2 Leading Edge Offset

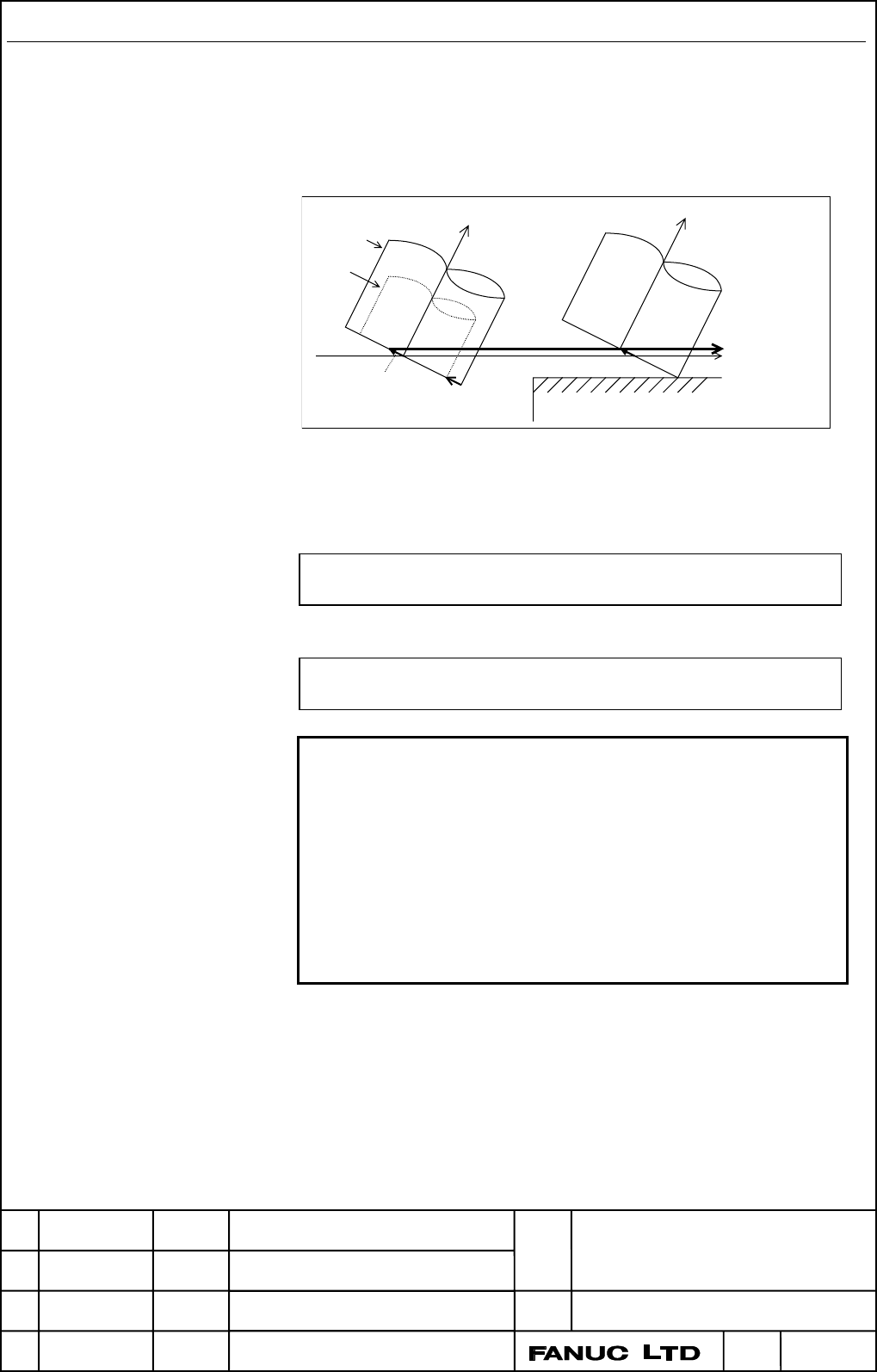

Leading edge offset is a type of cutter compensation that is used when a workpiece is
machined with the edge of a tool. A tool is automatically shifted by a specified cutter
compensation value on the line where a plane formed by a tool direction vector and tool
movement direction intersects a plane perpendicular to the tool axis direction.
Tool used
Reference
tool
Cutter compensation
vector
Cutter compensation
amount
Tool center path
(after
compensation)
Programmed
tool path
Tool vector
Fig.1.2 (a) Reading edge offset
Format
- Leading edge offset
G41.3 D_ ;
- Leading edge offset cancel
G40 ;
NOTE
1 G41.3 can be specified only in the G00 or G01 mode. In a
block containing G41.3 or G40, only the addresses D, O,
and N can be specified.
2 The block after a block containing a G41.3 command must
contain a move command. In that block, however, tool
movement in the same direction as the tool axis direction
or the opposite direction cannot be specified.
3 No continuous-state G code that belongs to the same group
as G00 and G01 can be specified in the G41.3 mode.
Previous page
Next page
