3-dimensional cutter compensation Additional Manual Page 36

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
35/
38
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa
Linear axis 2
Linear axis 1
Linear axis 3

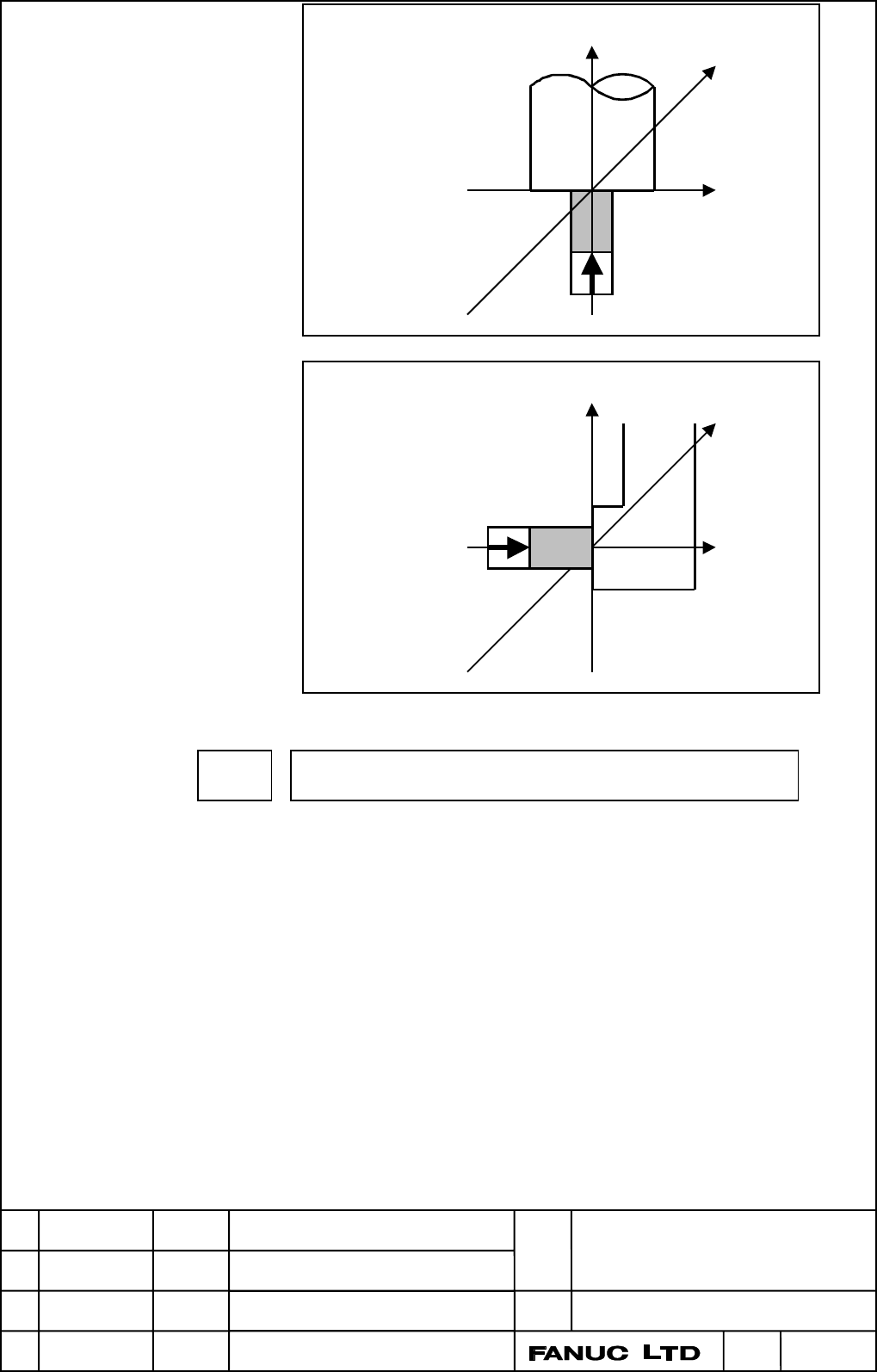

When tool axis and
linear axis 3 match
R
A
= 0.0
R
B
= 0.0
Linear axis 2
Linear axis 1
Linear axis 3
When tool axis and
linear axis 1 match
R
A
= 0.0
R
B
= 90.0
19630 Limit for assuming the block as a non-movement block in intersection
calculation for tool side compensation (G41.2, G42.2)
[Input type] Parameter input
[Data type] 2 word type
[Unit of data] mm, inch (input unit)
[Minimum unit of data] Depend on the increment system of the reference axis
[Valid data range] -99999999 - +99999999
When an intersection calculation is made for tool side compensation, the block is
assumed to be a block involving no movement if the difference in the coordinates of
two points on the compensation plane is smaller than the value set in this parameter.
In such a case, an additional block ahead is read for intersection calculation.
Usually, set a value about 0.01 mm.
Previous page
Next page

Contents Summary of 3-dimensional cutter compensation Additional Manual
