3-dimensional cutter compensation Additional Manual Page 21

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
20/
38
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa
Explanation
- Operation at compensation start-up and cancellation
Unlike tool side compensation the operation performed at leading edge compensation
start-up and cancellation does not vary. When G41.3 is specified, the tool is moved by
the amount of compensation (V
C
) in the plane formed by the movement vector (V
M
) of
the block after a G41.3 block and the tool vector (V
T
) obtained at the time of G41.3
specification. The tool movement is perpendicular to the tool vector. When G40 is
specified, the tool is moved to cancel VC. The following illustrates how the
compensation is performed.

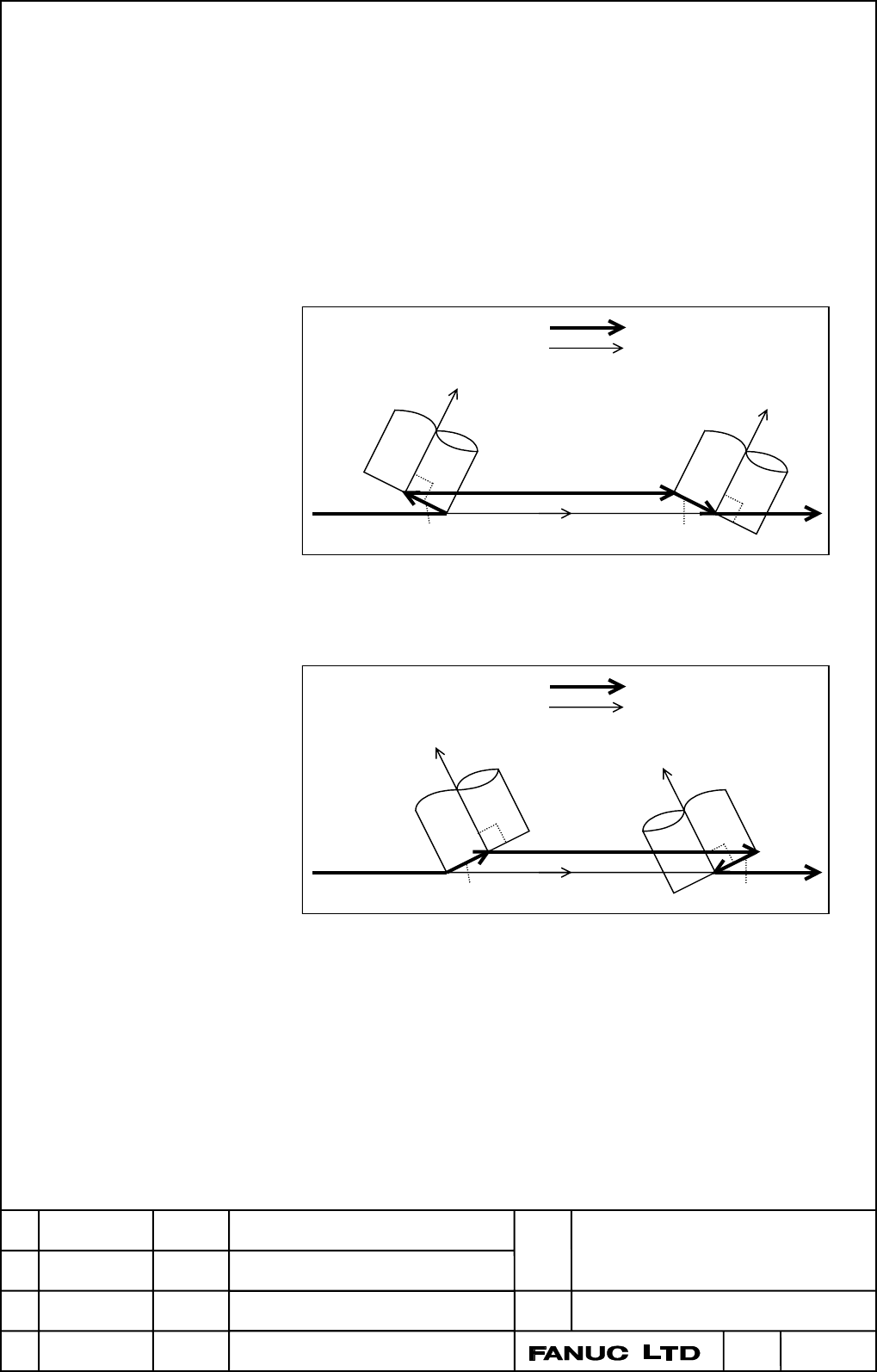

(1) When the tool vector is inclined in the direction the tool moves
Tool
Tool vector(V
T
)
V
M
G41.3(V
C
)
G40
: Tool center path
: Programmed tool path
Fig.1.2 (b) When the tool vector is inclined in the direction the tool moves
(2) When the tool vector is inclined in the direction opposite to the
direction the tool moves
: Tool center path
: Programmed tool path
Tool
Tool vector (V
T
)
V
M
G41.3(V
C
)
G40
Fig.1.2 (c) When the tool vector is inclined in the direction opposite to the direction
the tool moves
- Operation in the compensation mode
The tool center moves so that a compensation vector (V
C
) perpendicular to the tool vector
(V
T
) is created in the plane formed by the tool vector (V
T
) at the end point of each block
and the movement vector (V
M
) of the next block.
Previous page
Next page
