3-dimensional cutter compensation Additional Manual Page 37

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
36/
38
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa
#7 #6 #5 #4 #3 #2 #1 #0
19605 NIC
[Input type] Parameter input
[Data type] Bit
# 5 NIC
Specifies whether to perform an interference check when compensation
pla n e swit ch in g occu r s du r in g t h r ee-dim en sion a l cu t t er com pen sa t ion .
0: Perform.
1: Do not perform.
19635 Effective angle in an interference check for three-dimensional cutter
compensation
[Input type] Parameter input
[Data type] 2 word type
[Unit of data] degree
[Minimum unit of data] Depend on the increment system of the reference axis
[Valid data range] -99999999 - +99999999
A tool direction change is assumed when the angle difference between two tool
direction vectors in three-dimensional cutter compensation is equal to or greater
than the value set in this parameter.
When 0 is set, the specification of 45 degrees is assumed.

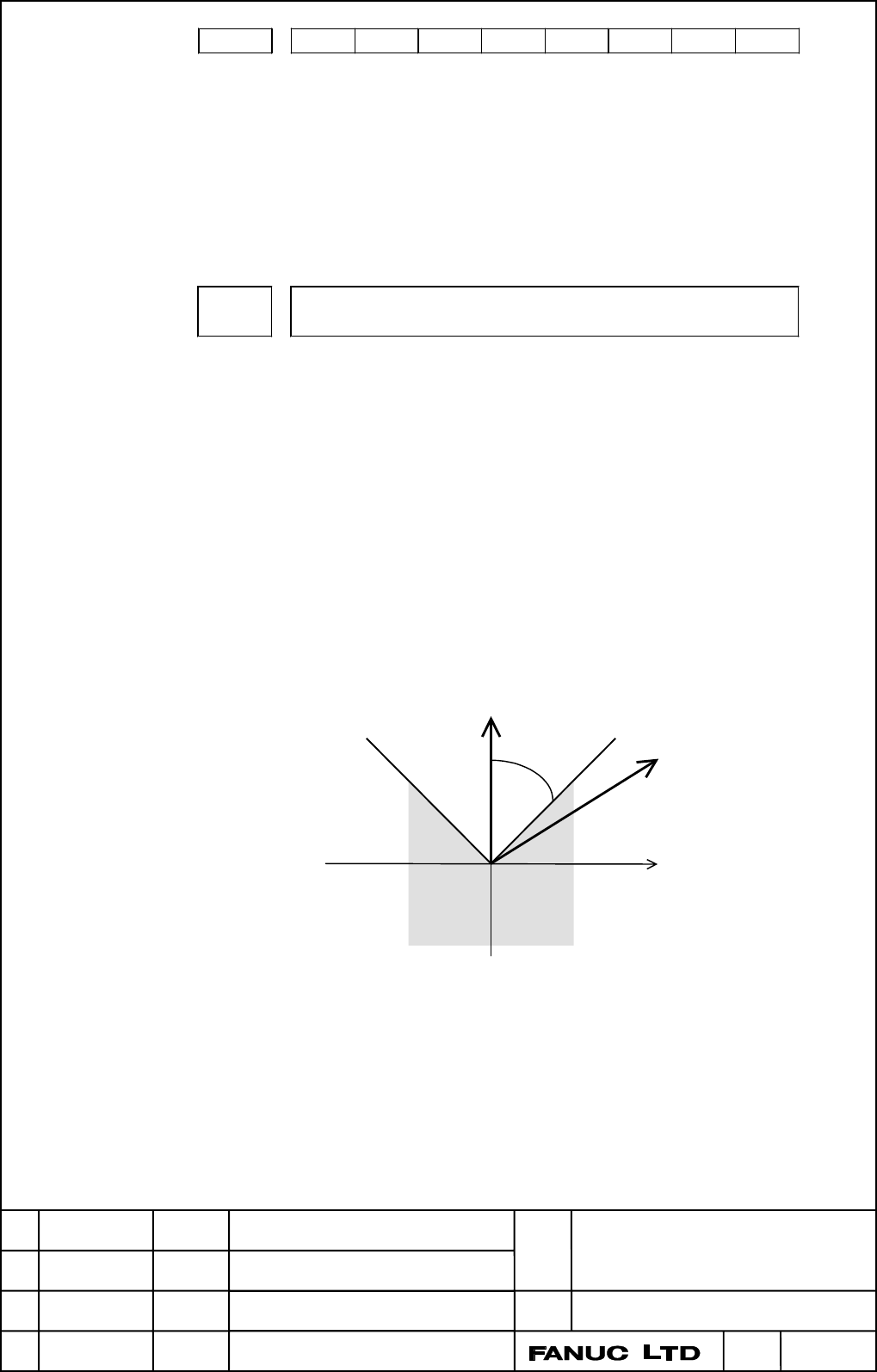

Let two tool direction vectors be Va and Vb. When the difference in angle is
α
degrees or more as shown in the figure below, the tool direction vector is
determined to have been changed.
α degrees
Va
Vb
Previous page
Next page

Contents Summary of 3-dimensional cutter compensation Additional Manual
