FANUC Series 16i/18i-MB/18i-MB5 Small-Hole Peck Rigid Tapping, Specifications Additional Manual Page 6

Additional Manual
2002/08/19 T.Inagaki
Changing the tapping conditions
In a single G84/G74 cycle, tapping override is changed for each tapping
operation (advance→drilling→retraction). (When 13400#0 and #1 are both
set to '0', override value is not changed.)
In parameters, 13411 and 13412, specify the respective rates of change
applied when the skip signal is detected and when it is not detected in the
previous tapping operation.
Cutting feedrate = F×α
<First drilling>
α=1.0
<Second or subsequent drilling>
α=α×β÷100, where β is the rate of change for each tapping operation
When the skip signal is detected during the previous tapping operation
: β=b1% (parameter No.13411,effective when No.13401#0(OLR) is '1')
When the skip signal is not detected during the previous tapping operation
: β=b2% (parameter No.13412,effective when No.13401#1(NOL) is '1')

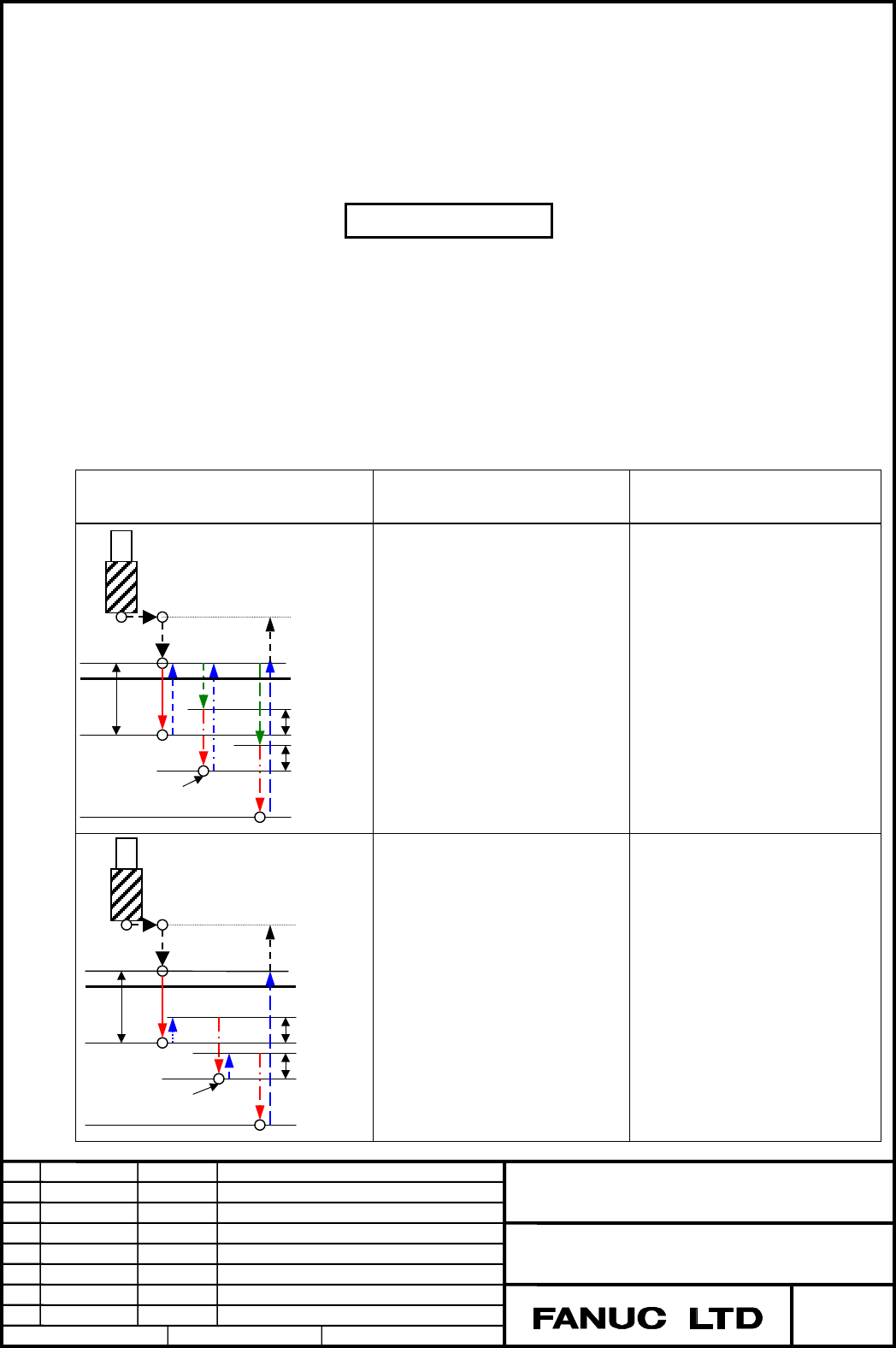

G84,G74(G98) Rigid tapping feedrate (with rigid
tap extraction override)
Rigid tapping feedrate (without
rigid tap extraction override)
[Small-hole peck rigid tapping]
Initial level
Point R Lv
Q 1 3 5 5
2 3 d
4 d
Overload torque 6
Point Z
Cutting feedrate : F
Percentage of cutting feedrate to
be changed without over-torque: γ
Percentage of cutting feedrate to
be changed after over-torque : δ
Extraction override : ε
1. F
2. F×ε
3. F×γ×ε
4. F×γ
5. F×γ×δ×ε
6. F×γ×δ
※Skip is effective only on block
1,4,and 6.
Cutting feedrate : F
Percentage of cutting feedrate to
be changed without over-torque: γ
Percentage of cutting feedrate to
be changed after over-torque : δ
Extraction override : ε
1. F
2. F
3. F×γ
4. F×γ
5. F×γ×δ
6. F×γ×δ
[Small-hole hi-speed peck rigid tapping]
Initial level
Point R Lv.
Q 1
2 3 d
4 d
Overload torque 5 6
Point Z
Cutting feedrate : F
Percentage of cutting feedrate to
be changed without over-torque: γ
Percentage of cutting feedrate to
be changed after over-torque : δ
Extraction override : ε
1. F
2. F×ε
3. F×γ×ε
4. F×γ
5. F×γ×δ×ε
6. F×γ×δ
※ Skip is effective only on block
1,3,and 5.
Cutting feedrate : F
Percentage of cutting feedrate to
be changed without over-torque: γ
Percentage of cutting feedrate to
be changed after over-torque : δ
Extraction override : ε
1. F
2. F
3. F×γ
4. F×γ
5. F×γ×δ
6. F×γ×δ
A-78641EN
FANUC Series 16i/18i–MB/18i–MB5
Small-hole peck rigid tapping
Title
Drawing No.
Page
Descri
p
tionDate Edit
6/14
