Small Machine Operators Panel (M/T) - Connection Manual Additional Manual Page 3

Additional Manual
EDIT DATE DESIG.
Small Machine operator’s panel
connection manual
TITLE
DESCRIPTION
DRAW.NO.
A-83122E
SHEET
CUST
3
/

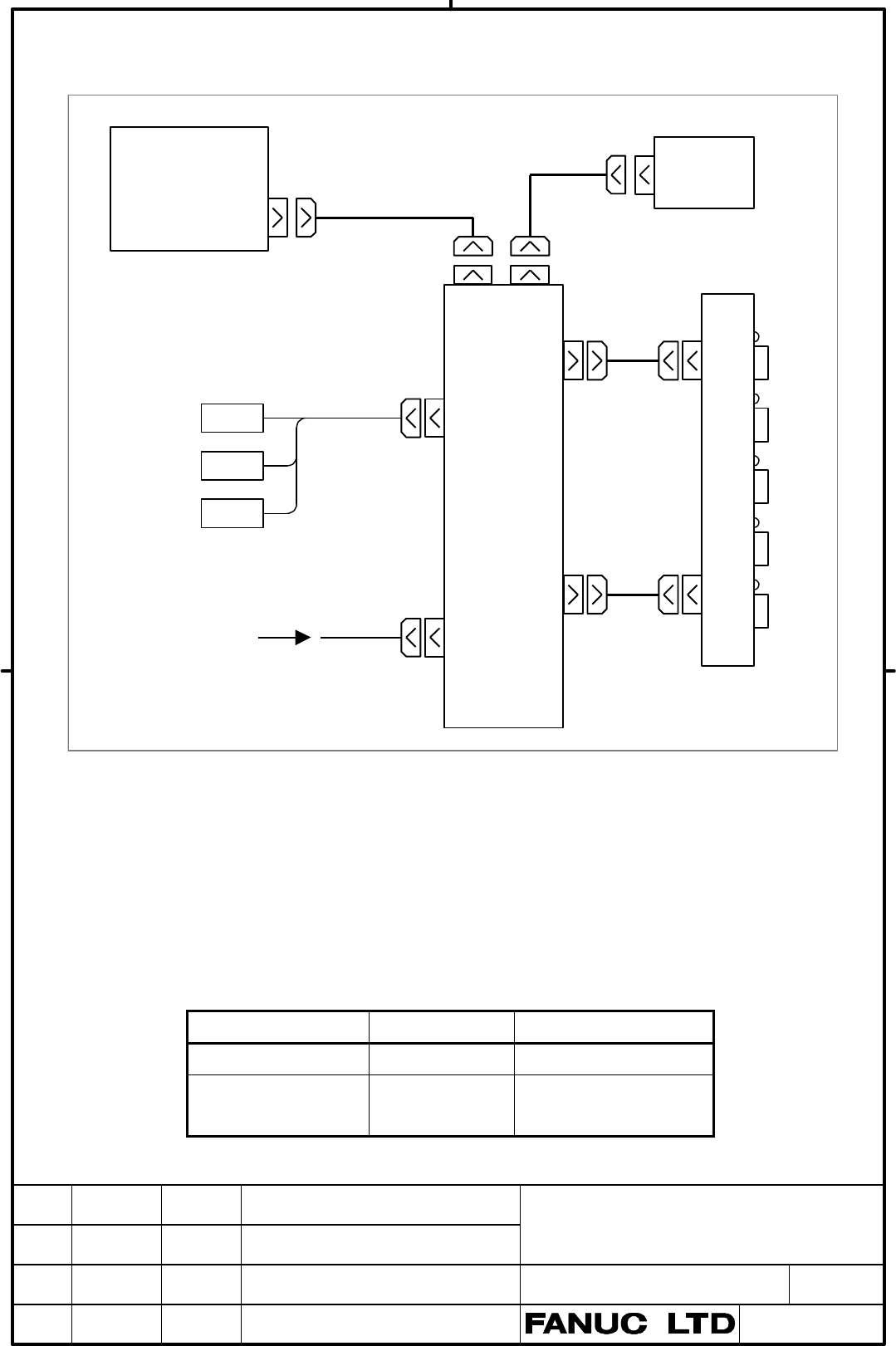

2 Overall Connection Diagram
NOTE
The MPG can be connected to this Small Machine Operator’s Panel only when the i series
CNC is used. When the Small Machine Operator’s Panel is used together with a unit
(Connector Panel I/O Module) connected to the I/O Link supporting another MPG interface,
only the MPG interface of unit (module) closest to the CNC connected to the I/O Link is
enabled.
The following screw type connectors, newly incorporated into the i series main board,
cannot be used to connect the I/O Link or MPG.
CNC
I/O Link
JD1A
CPD1(IN)
CE56
+24 V power
supply
CE57
achine operator's panel （Keyboard）
Small
Machine
Operator’s
panel
JD1B
I/O UNIT
JA3
MPG
MPG
MPG
Connectors that cannot be used on the cable side
Specification Manufacturer
Connector FI-20-CV7 Hirose Electric Co., Ltd.
Connector case and
connector
FI30-20S-CV7 Hirose Electric Co., Ltd.
