Small Machine Operators Panel (M/T) - Connection Manual Additional Manual Page 5

Additional Manual
EDIT DATE DESIG.
Small Machine operator’s panel
connection manual
TITLE
DESCRIPTION
DRAW.NO.
A-83122E
SHEET
CUST
5
/

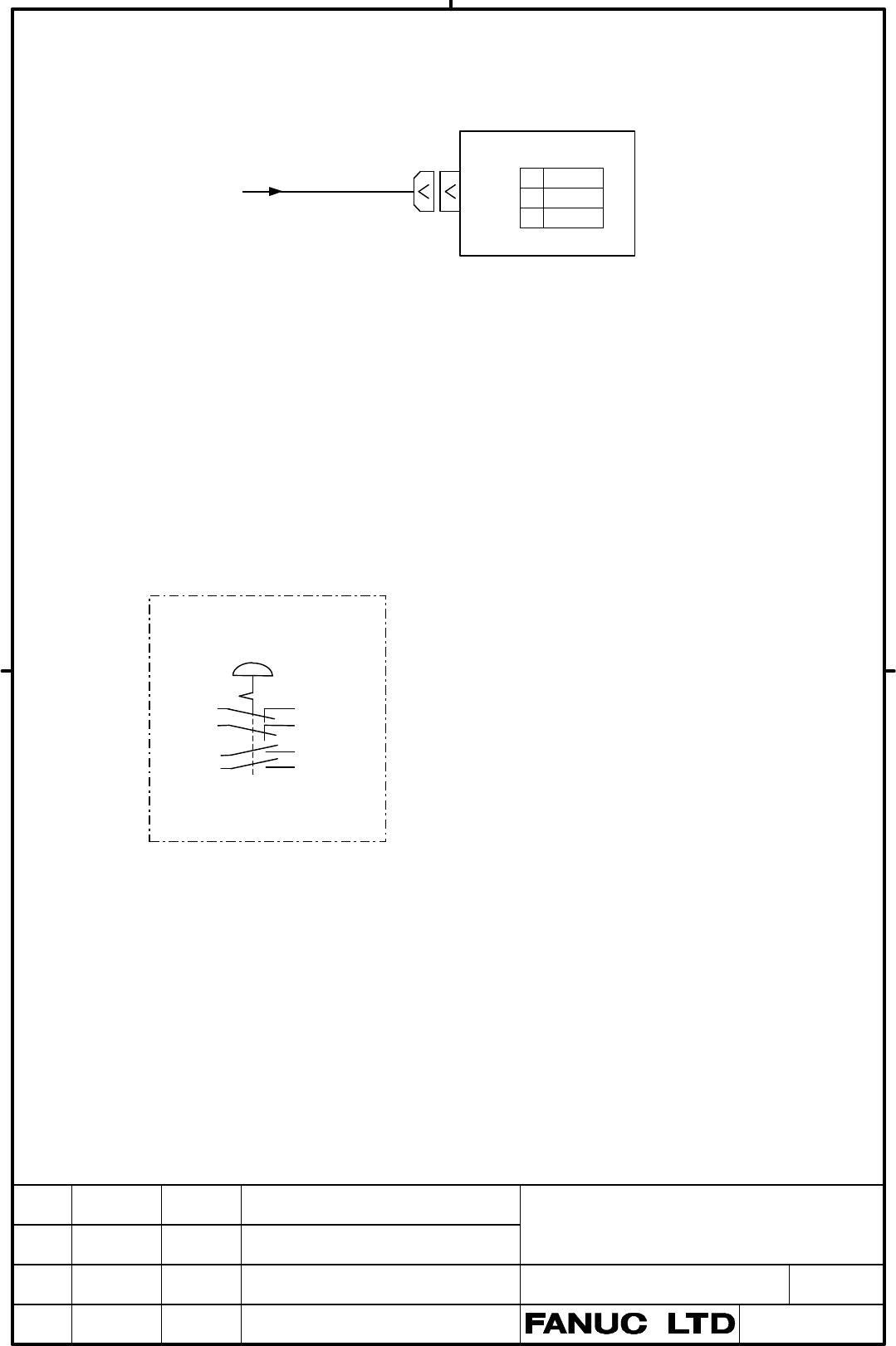

3.2 Power Connection
Provide the CPD1 connector, shown below, with the power necessary for printed circuit board
operation.
NOTE
Don’t turn off the +24V supply to the connector during operation. Turning off the +24V
supply will case a CNC communication alarm.
When turning on the power, the +24V supply to the Small machine operator’s panel
must be turned on before or at the same time as the power supply to the CNC.
When turning off the power, the +24V supply to the Small machine operator’s panel
must be turned off after or at the same time as the power supply to the CNC.
3.3 Emergency Stop Switch
Emergency stop switch has two A contacts and two B contacts,
(This signal cannot be sent to the FANUC I/O Link.)
Small Machine operator’s panel
01
+24V
02
0V
03
CPD1
+24V Power
supply
Emergency Stop
Switch (SB1)
