Modification of Connecting and Maintenance Manual for LCD Unit for is Series CNC (Model A) Additional Manual Page 15

Additional Manual

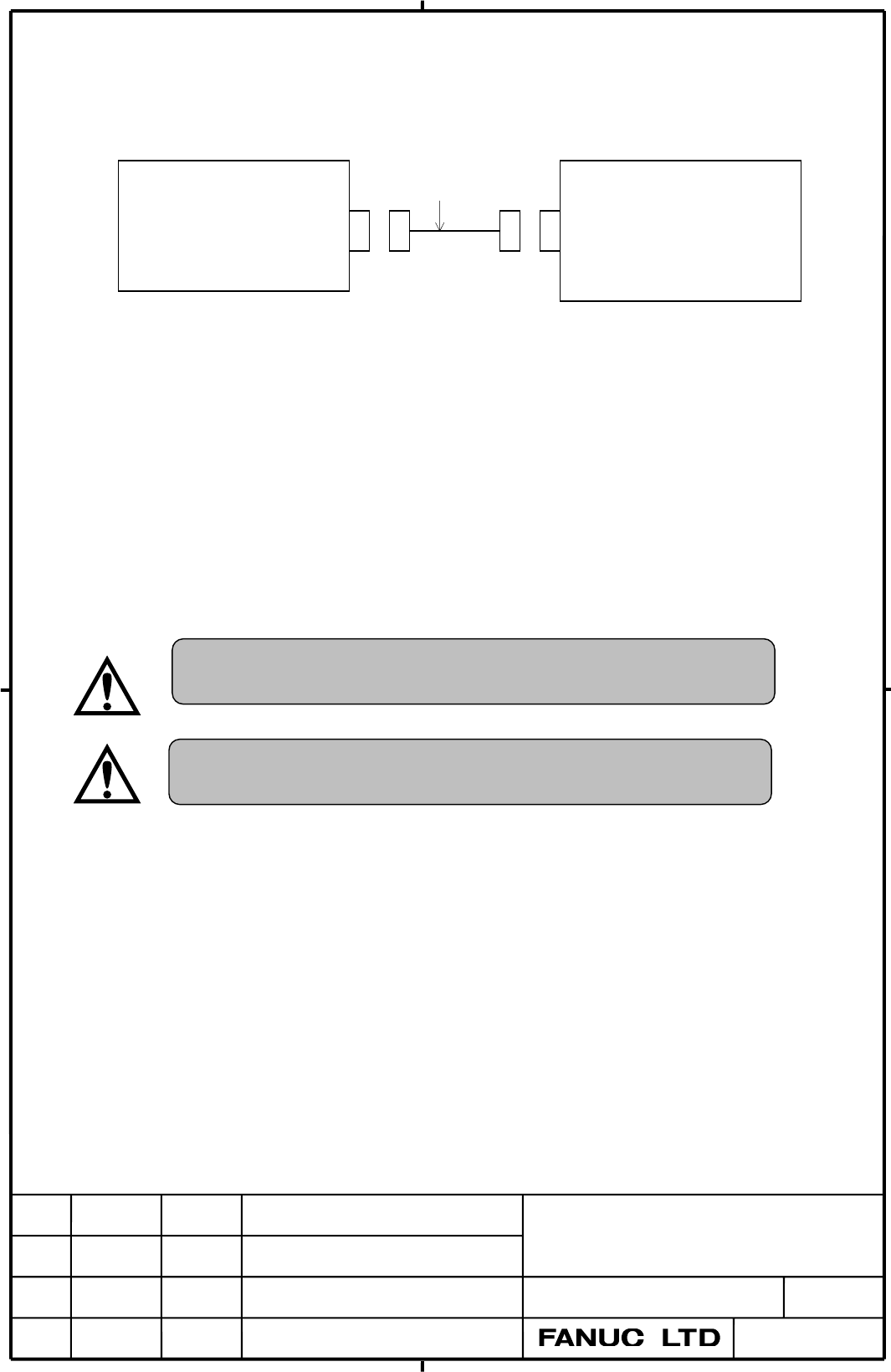

3.5. High Speed Serial Bus (HSSB)
HSSB Interface
Board
LCD Unit for
is Series CNC
COP7
COP7
O
p
tical Fiber Cable
1) Recommended cable (Optical Fiber Cable)
A66L-6001-0026#L1R003 …… Cable Length = 1 m
A66L-6001-0026#L3R003 …… Cable Length = 3 m
A66L-6001-0026#L5R003 .….. Cable Length = 5 m
A66L-6001-0026#L7R003 .….. Cable Length = 7 m
A66L-6001-0026#L10R03 …… Cable Length = 10 m
A66L-6001-0026#L15R03 …… Cable Length = 15 m
A66L-6001-0026#L20R03 …… Cable Length = 20 m
A66L-6001-0026#L30R03 …… Cable Length = 30 m
A66L-6001-0026#L50R03 …… Cable Length = 50 m
A66L-6001-0026#L100R3 …… Cable Length = 100m
Optical fiber cable used for FANUC I/O Link, for FSSB and for
Serial Spindle can not be used.
Optical fiber cable can not be cut or joined by customer.
Use one of above cables.
EDIT
SHEET 14
CUST
DESCRIPTION
DESIG.
DATE
CONNECTION and MAINTENANCE
MANUAL for
LCD Unit for is Series CNC
A-80907E
TITLE
DRAW. NO.
