  2. Modification of Connecting and Maintenance Manual for LCD Unit for is Series CNC (Model A)

Modification of Connecting and Maintenance Manual for LCD Unit for is Series CNC (Model A) Additional Manual Page 24

Additional Manual
4.3. Exchange of Compact Flash Card

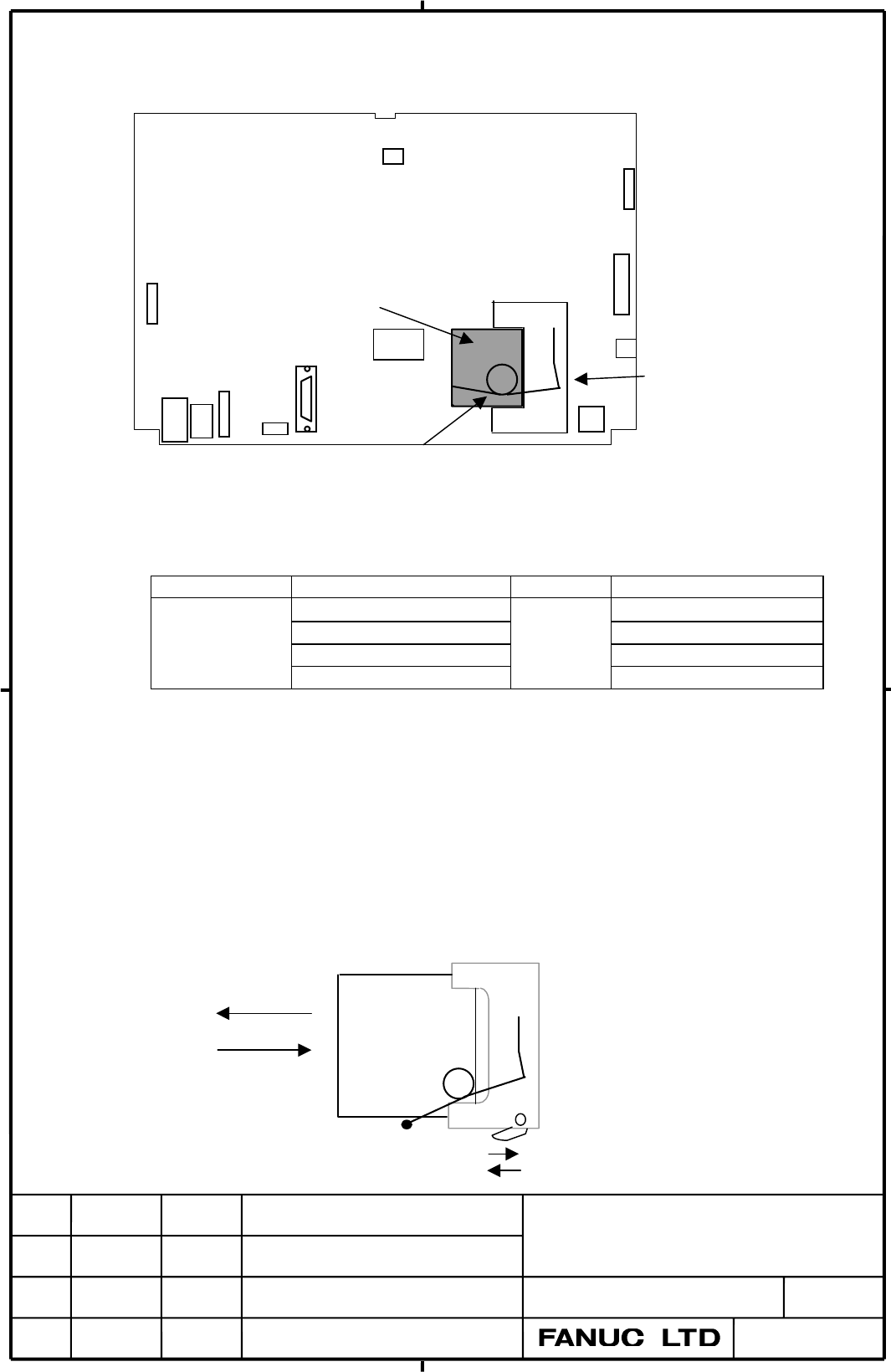

4.3.1. Compact Flash Card location
Main board
Compact Flash Card
Socket
Compact Flash Card Stopper
(A97L
0201
0926)
4.3.2. Consist of Compact Flash Card unit
Name Spec Quantity Remark
Compact Flash
A87L-0001-0173#016MB
1(Choose
16MB
Card A87L-0001-0173#032MB from. 32MB
A87L-0001-0173#048MB these). 48MB
A87L-0001-0173#064MB 64MB
Compact Flash Card Stopper (A97L-0201-0926) is included in LCD Unit for is Series
CNC
unit.
Note that Compact Flash Card unit does not include Compact Flash Card Stopper.
4.3.3. Exchange of the Compact Flash Card
(1) Keep the Compact Flash Card Stopper away.
(2) Remove the Compact Flash Card d by pushing the CF removing lever.
(3) Insert new Compact Flash Card.
(4) Return the Compact Flash Card Stopper.
Compact Flash Card
Compact Flash Card
Stopper
CF removing lever
EDIT
SHEET 23
CUST
DESCRIPTION
DESIG.
DATE
CONNECTION and MAINTENANCE
MANUAL for
LCD Unit for is Series CNC
A-80907E
TITLE
DRAW. NO.
Previous page
Next page
