  2. Modification of Connecting and Maintenance Manual for LCD Unit for is Series CNC (Model A)

Modification of Connecting and Maintenance Manual for LCD Unit for is Series CNC (Model A) Additional Manual Page 22

Additional Manual

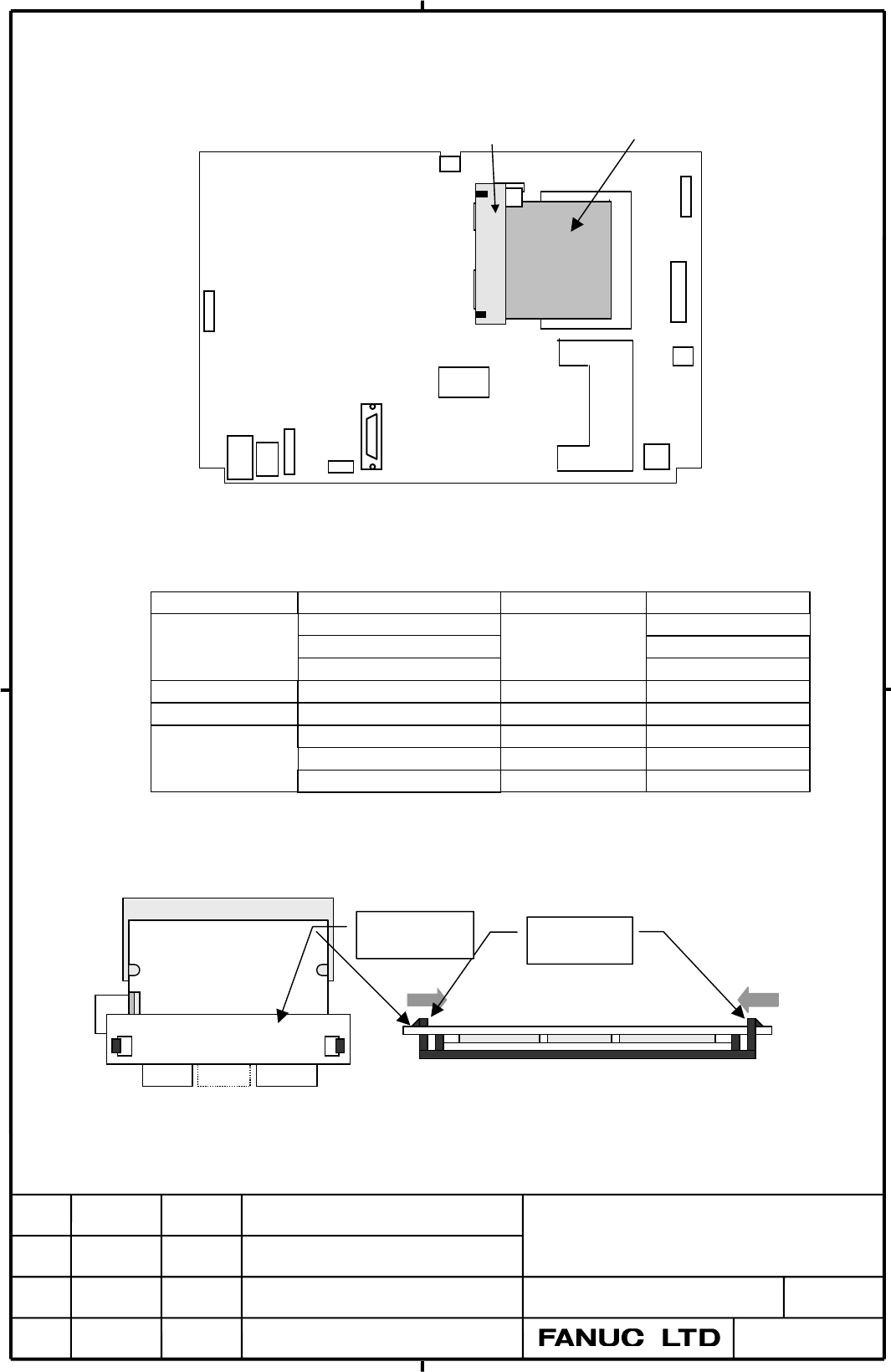

4.2. Exchange of CardEngine
4.2.1. CardEngine location
CardEngine
Metal plate
Main board
4.2.2. Component of CardEngine unit
Name Spec Quantity Remark
CardEngine A15L-0001-0073#16AJ 1 (Choose from Japanese version
A15L-0001-0073#16AE these) English version
A15L-0001-0069#16CJ for ROBOSHOT
Card Mount A98L-0005-0155/GD 1
Metal Plate A98L-0005-0155/MF 1
Flat Cable A66L-0001-0439/24 1
A66L-0001-0439/30 1
A66L-0001-0439/40 1
4.2.3.Method of exchange
(1) Take off the Metal Plate that holds the flat cable connector.
Projection
CardEngine
Metal Plate
EDIT
SHEET 21
CUST
DESCRIPTION
DESIG.
DATE
CONNECTION and MAINTENANCE
MANUAL for
LCD Unit for is Series CNC
A-80907E
TITLE
DRAW. NO.
Previous page
Next page
