FANUC Series 30i/31i-A Specifications of Path Table Operation Workpiece Coordinate Command Additional Manual Page 14
Additional Manual
A-90078E
*ABSM<Gn006#2>=0
Manual absolute on
2.0
4.0
6.0
0.0

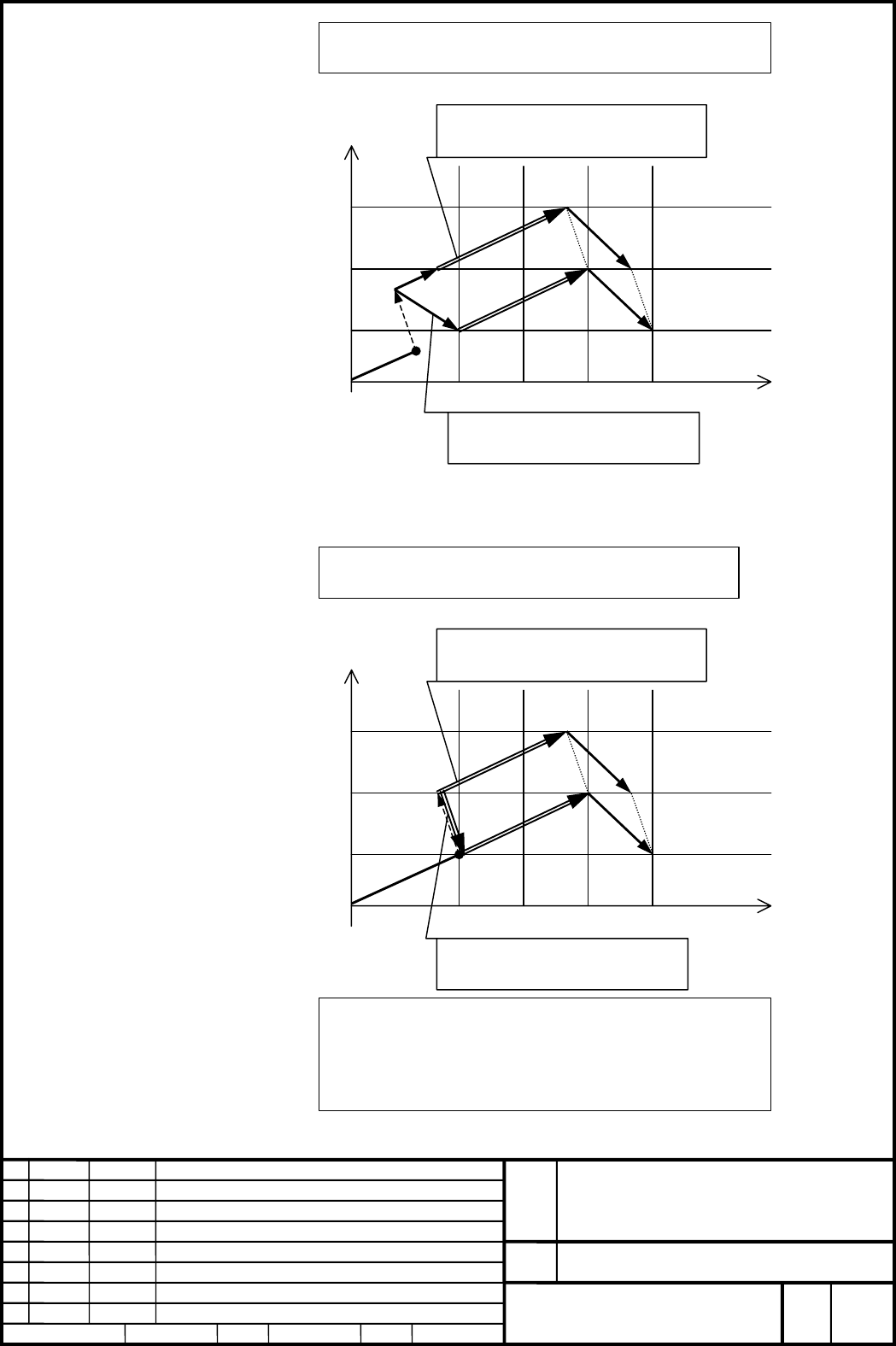

Manual operation interrupts during the NC block before path
table operation block:
X
Z
*ABSM<Gn006#2>=1
Manual absolute off
2.0 4.0
3.0 5.0
*ABSM<Gn006#2>=0
Manual absolute on
2.0
4.0
6.0
0.0
A
fter manual operation, automatic operation starts from the
path table operation block:
X
Z
*ABSM<Gn006#2>=1
Manual absolute off
If Path Table Operation starts with manual absolute on, there is
possibility that the manually intervening axis moves rapidly.
For safely, set tolerance to parameter No.11101. When the
manual intervention quantity is bigger than the tolerance, P/S
alarm No.442 occurs.
2.0 4.0
3.0 5.0
Sheet
Title
Draw
No.
FANUC Series 30i/31i
Specifications of Path Table Operation
Workpiece coordinate command
FANUC LTD
14/17
Ed. Date Design Description
Date Jun.06.’5 Desig. T.Watanabe Apprv. Y.Takeuchi
