Operators manual
4.TAPER CYCLE CYCLE MACHINING B-64254EN/02
- 116 -
4. Roughing + finishing, cutting direction DIR=X, tool in [B]

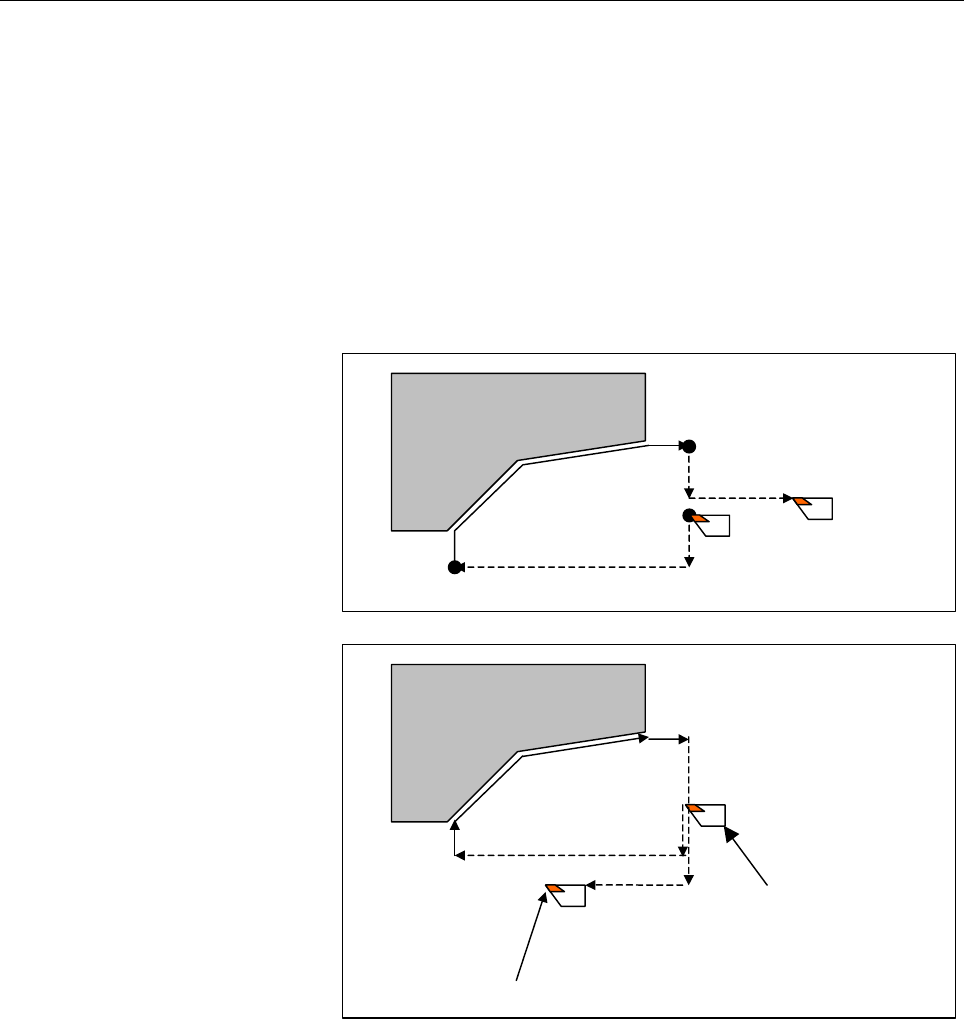

The following description refers to tool cutting motions described in
Subsections 7 and 8 of rough cutting motions.
(1) The tool moves from position Ez, to P1 moving in rapid traverse
first along the X axis and then along the Z axis.
(2) From P1 the tools moves in cutting feed along the programmed
figure until P3.
(3) The tool return to the initial position in rapid traverse, moving
first along X axis and then along Z axis.
1
Tool Initial Position
Somewhere in [B]
P1
P3
2
3
Ez
Tool position of roughness
processing end
Tool Initial Position somewhere in [B]
