B-64254EN/02 CYCLE MACHINING 7.FREE FIGURE CYCLE
- 131 -
7.2 INPUT DATA
In the following description the input data for outer free figure cycle is
explained in detail. As the meaning of the data input for the others for
free figure cycles is the same they are not explained in this document.
Input data for outer free figure cycle
Item Meaning Tab Mandatory Note
D-CUT Amount of cut FIG
×
Equal or bigger than zero
DIR The direction of cutting is specified
with the button on the touch screen.
[X] :Direction along X (1)
[Z] :Direction along Z (2)
METH.
×
As default cutting direction
along X is selected
R+F The cutting method is specified with
the button on touch screen.
[R+F]: Rough + Finishing cutting (1)
[R]: Rough cutting (2)
[F]: Finish cutting (3)
METH.
×
As default Rough + Finishing
cutting is selected
FIN-X Finish amount X METH.
×
The default value of FIN-X is
specified in the set screen.
FIN-Z Finish amount Z METH.
×
The default value of FIN-Z is
specified in the set screen.
T Tool number METH.
×
The default value of FIN-X is
specified in the set screen.
F Feedrate METH.
×
The default value of FIN-Z is
specified in the set screen.
CSS Constant surface speed
ON (1)
OFF (2)
COND.
×
S Spindle speed COND.
×
S-MAX Maximum spindle speed COND.
×

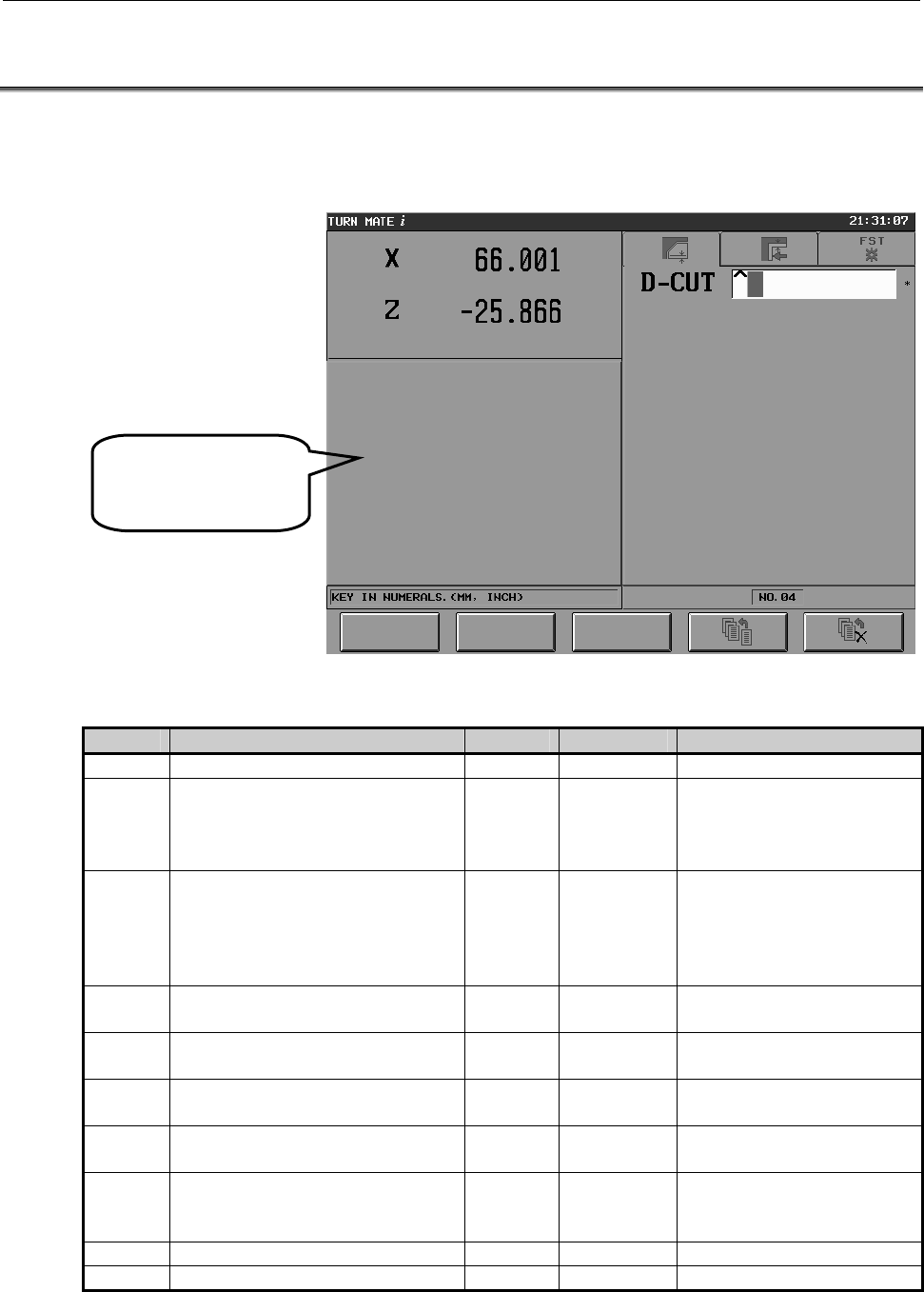

Screen area where the
edited figure is
displayed
Previous page
Next page
