Operators manual
B-64254EN/02 CYCLE MACHINING 2.STANDARD CORNER CYCLE
- 79 -

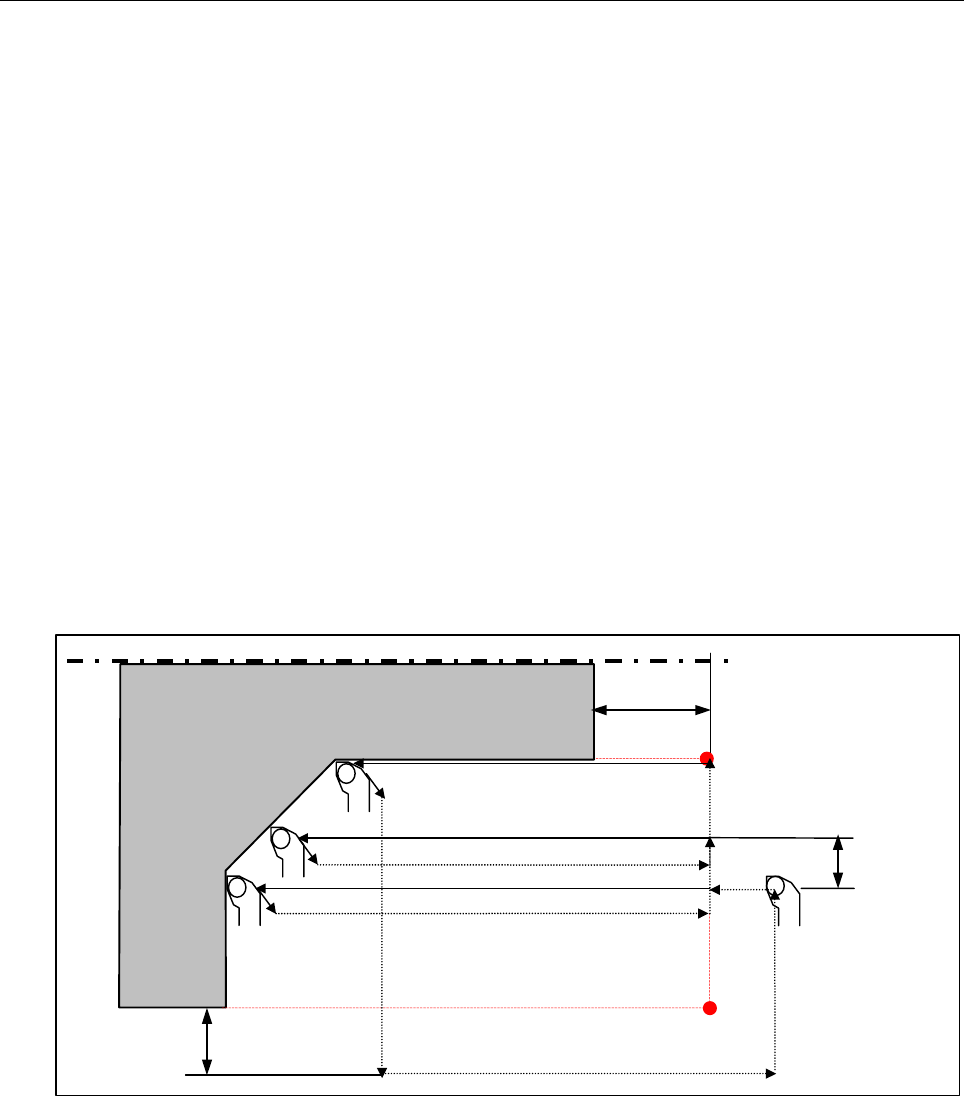

4. Depth of cut D-CUT>0, cutting direction DIR=Z, tool in [F]
(1) The tool moves from the initial position, somewhere in [F], to the
edge of clearance Z moving in rapid traverse first along the Z
axis.
(2) The tool moves in cutting feedrate, along the Z axis, until the
edge of the programmed figure is reached.
(3) The tool retracts by the escape amount (ESCPAMT) specified in
parameter No. 9212.
(4) The tool moves in rapid traverse along the Z axis until the edge
of clearance Z.
(5) The tool retract in rapid traverse along the X axis by
−(D-CUT+ESCPAMT).
(6) Steps 2 - 5 are repeated until the tool reaches P1
(7) The tool moves in cutting feedrate until the edge of the
programmed figure is reached.
(8) The tool retracts by the escape amount (ESCPAMT) specified in
parameter No. 9212.
(9) The tool moves in rapid traverse along the X axis until the edge
of clearance X Ex.
(10) The tool return to the initial position in rapid traverse, moving
first along Z and then along X.
Tool Initial Position
Somewhere in [F]
Clearance Z
D-CUT
Clearance X
P3
1
2
3
4
5
P1
7
8
6
9
10
Ex
