TURN MATE i Operators manual Page 35

Operators manual
B-64254EN/02 OPERATION 1.SPINDLE
- 23 -
1.2 CONSTANT SURFACE SPEED ON

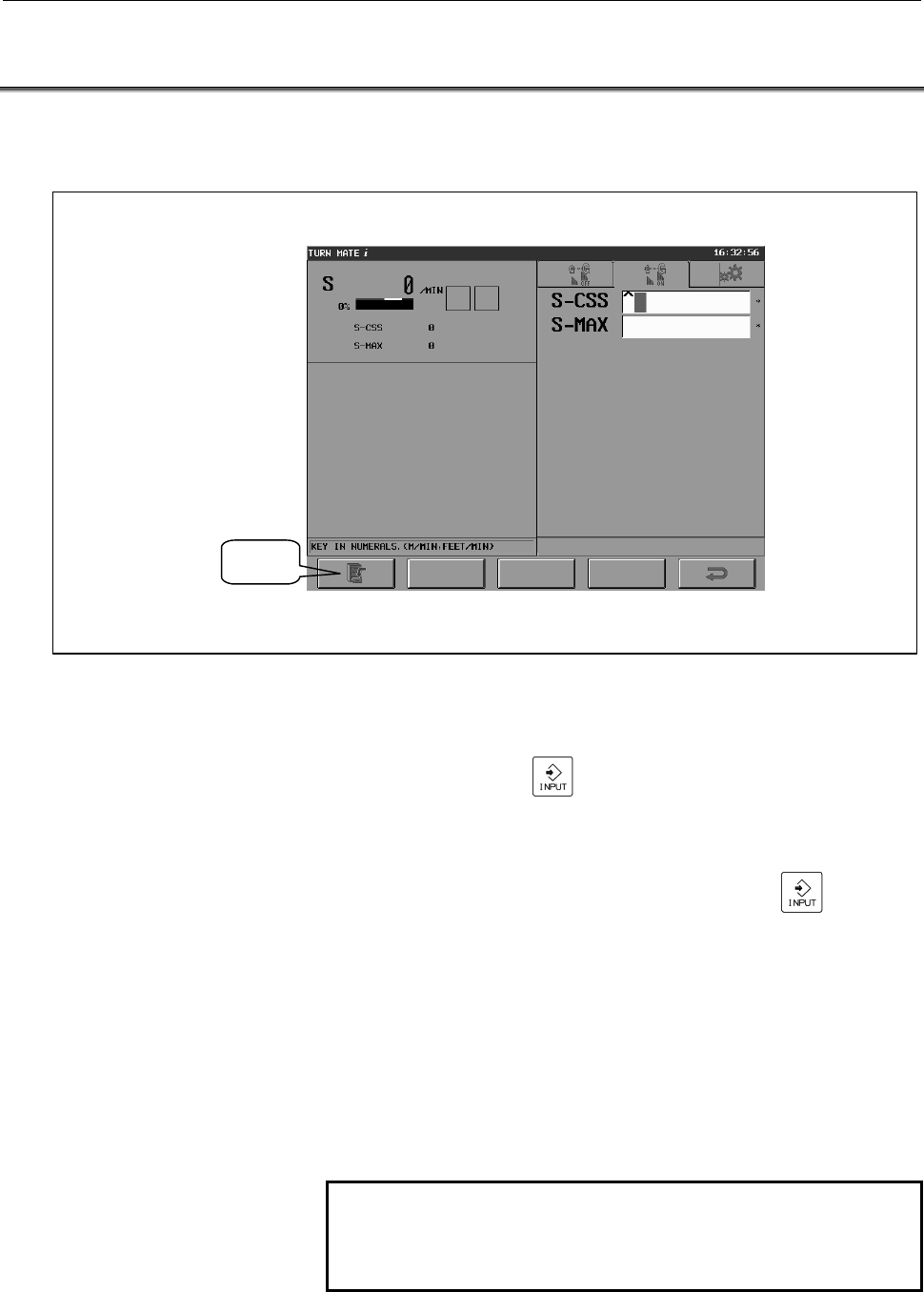

If tab CSS ON is selected, then following screen is displayed. On this
screen the spindle speed is specified in mm/min.
SET
The workflow is as follows.
(1) Input into the data area named S-CSS the desired spindle speed,
then push INPUT (
) key.
(The message “KEY IN NUMERALS. (M/MIN, FEET/MIN)” is
displayed on the bottom left side of the screen).
(2) Input into the data area named S-MAX the value of the
maximum spindle speed, then push INPUT key (
).
(The message “KEY IN NUMERALS. (/MIN)” is displayed on
the bottom left side of the screen).
(3) Then push SET button.
(4) The specified value for constant surface speed is displayed next
to string S-CSS on the left side of the screen. The specified value
for maximum spindle speed is displayed next to string S-MAX
on the left side of the screen
(The value displayed next to S represents the actual spindle speed
read from the CNC)
NOTE
The input unit for constant surface speed is
changed into feet/min by inch/metric parameter
switch.
