PROGRAMMING

5. FEED FUNCTIONS

B–62094E/04

Feedrate of linear interpolation (G01), etc. are commanded with numbers

after the F code.

In cutting feed, the next block is executed so that the feedrate change from

the previous block is minimized.

Two modes of specification are available:

1.Feed per minute (G94)

After F, specify the amount of feed of the tool per minute.

2.Feed per revolution (G95)

After F, specify the amount of feed of the tool per position coder

revolution.

Feed per minute

G94 ; G code (group 05) for feed per minute

F_ ; Feedrate command (mm/min or inch/min)

Feed per revolution

G95 ; G code (group 05) for feed per revolution

F_ ; Feedrate command (mm/rev or inch/rev)

Cutting feed is controlled so that the tangential feedrate is always set at

a specified feedrate.

End point

Starting

point

Center

End point

Start

point

Linear interpolation

Circular interpolation

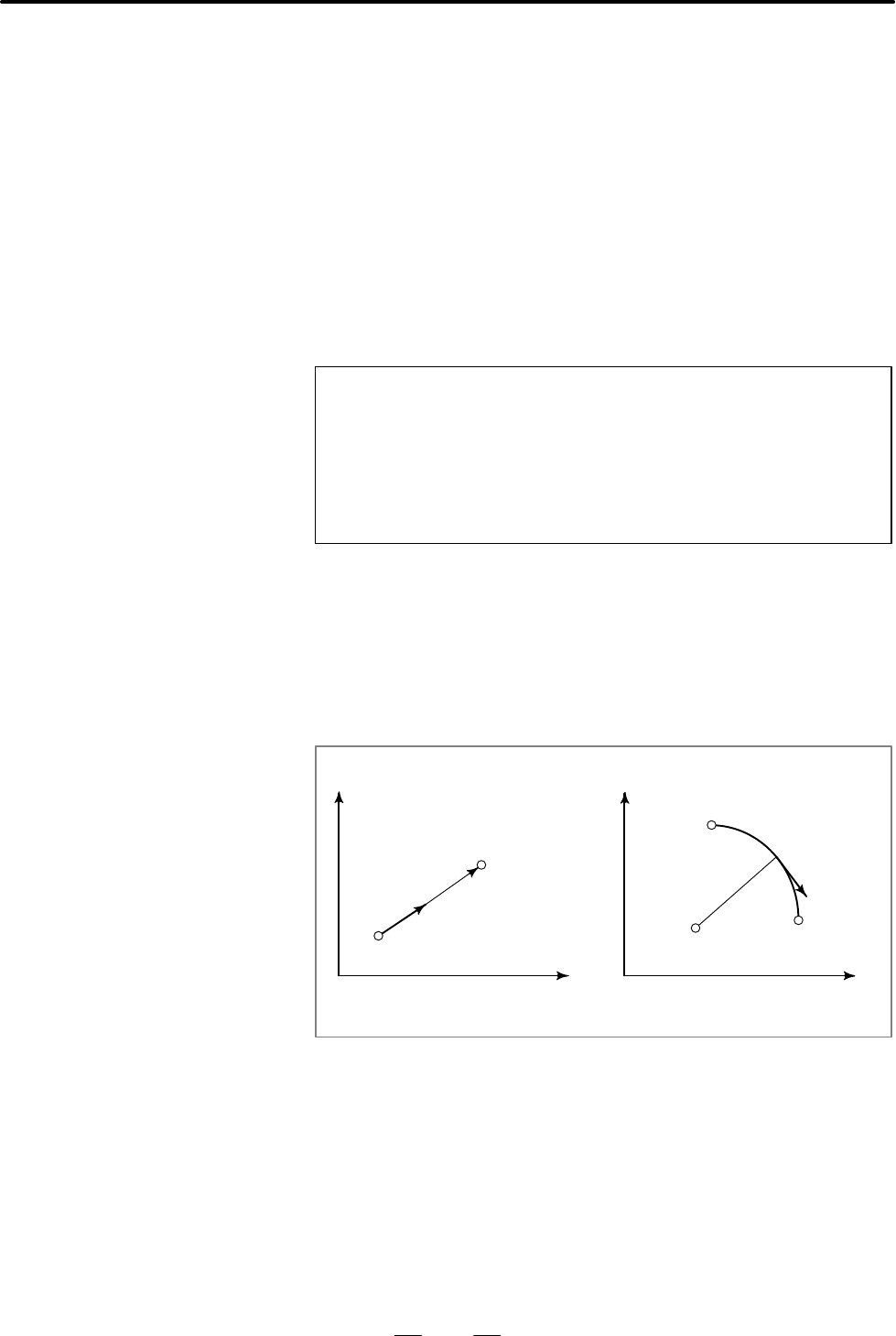

Fig. 5.3 (a) Tangential feedrate (F)

After specifying G94 (in the feed per minute mode), the amount of feed

of the tool per minute is to be directly specified by setting a number after

F. G94 is a modal code. Once a G94 is specified, it is valid until G95 (feed

per revolution) is specified. At power–on, the feed per minute mode is

set.

An override from 0% to 254% (in 1% steps) can be applied to feed per

minute with the switch on the machine operator’s panel. For detailed

information, see the appropriate manual of the machine tool builder.

5.3

CUTTING FEED

Format

Explanations

D Tangential speed

constant control

D Feed per minute (G94)
