Fanuc Laser C Series Improved Mirror Stage Additional Manual Page 3
Additional Manual
FANUC LASER C series
Improved Mirror Stage
03
MURAKAMI
030303
02
MURAKAMI

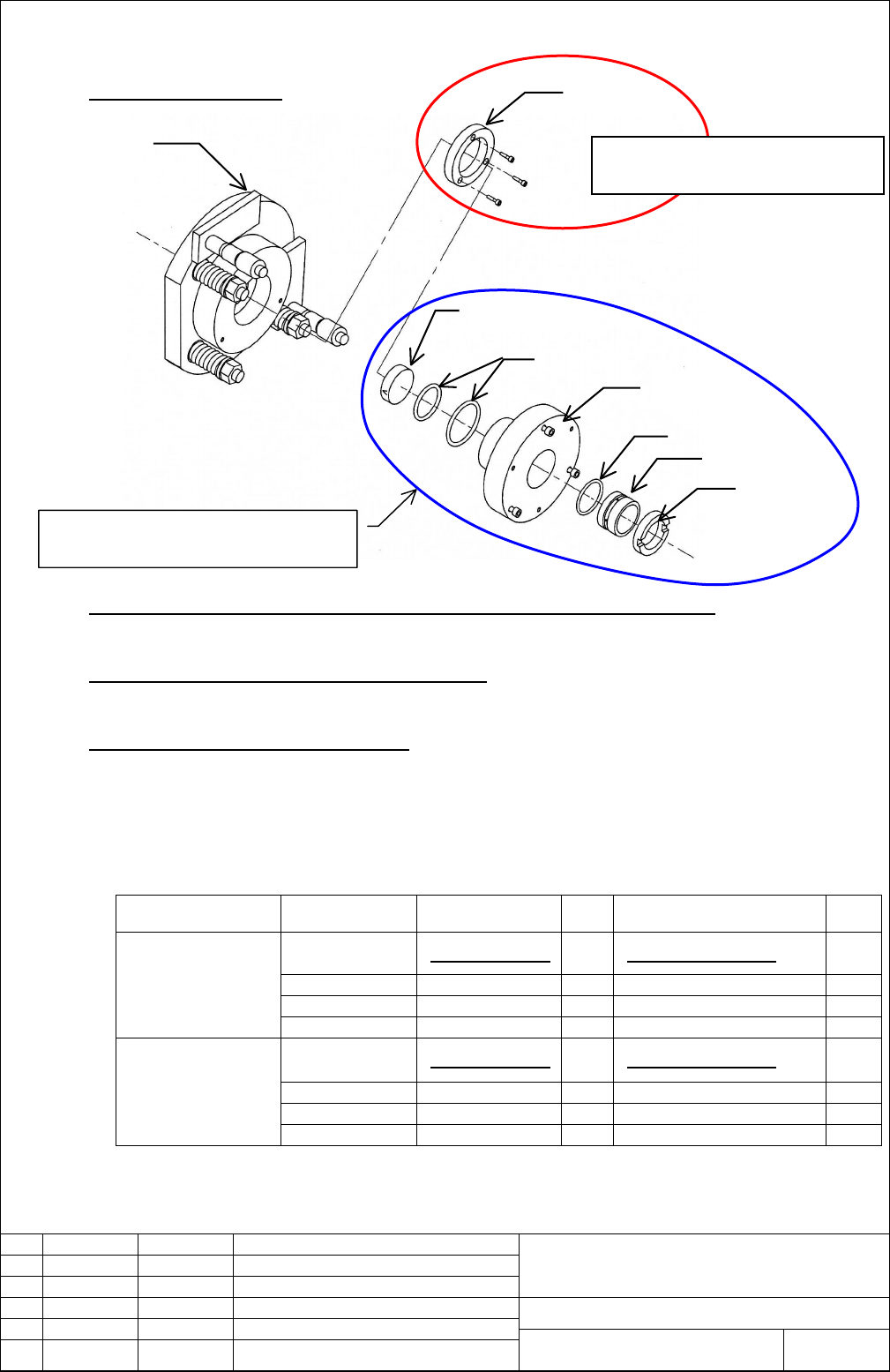

3. Stage block diagram
4. About the method of maintaining a output coupler and a rear mirror
Mirror base
This is deleted by the improvemen
t
design at this time.
Stage
It is as usual and there is no change.
(There is interchangeability)
O.C., R.M.
Mirror holde
r
Mirror su
pp
ort
Screw
O-ring
O-ring
It is as usual, and there is no change.
5. About the method of maintaining the stage
It is as usual, and there is no change. There is an upward compatibility.
6. Change in spare part specification
Please arrange according to the table below.
6-1-1. C4000-E
When the Cavity mirrors are specified with
A98L-0003-0036 (OC), A98L-0003-0037 (RM).
ITEM Name Old spec. Q'ty New spec. Q'ty
STAGE A290-4540-V161
A290
-4540-V151
1 A290-4540-V163#ST
A290-4540-V153#ST
1
FITTING (attached) - A97L-0200-0648#L-2A-B 1
FITTING (attached) - A97L-0200-0651#N-06A-B 2
STAGE
(for Output Coupler)
MIRROR BASE A290-4530-X161 1 (unnecessary) -
STAGE A290-4540-V151
A290
-4540-V161
1 A290-4540-V153#ST
A290-4540-V163#ST
1
FITTING (attached) - A97L-0200-0648#L-2A-B 1
FITTING (attached) - A97L-0200-0651#N-06A-B 2
STAGE
(for Rear Mirror)
MIRROR BASE A290-4530-X161 1 (unnecessary) -
2/4
FANUC LTD
A-81053E-037
Description Design Date Edit.
01 021007 MURAKAMI
title
Sheet
Draw. No.
Add C1000-E, C2000-E
Changed table 6-1-1
030127
