Additional Manual
FANUC LASER C series
Improved Mirror Stage

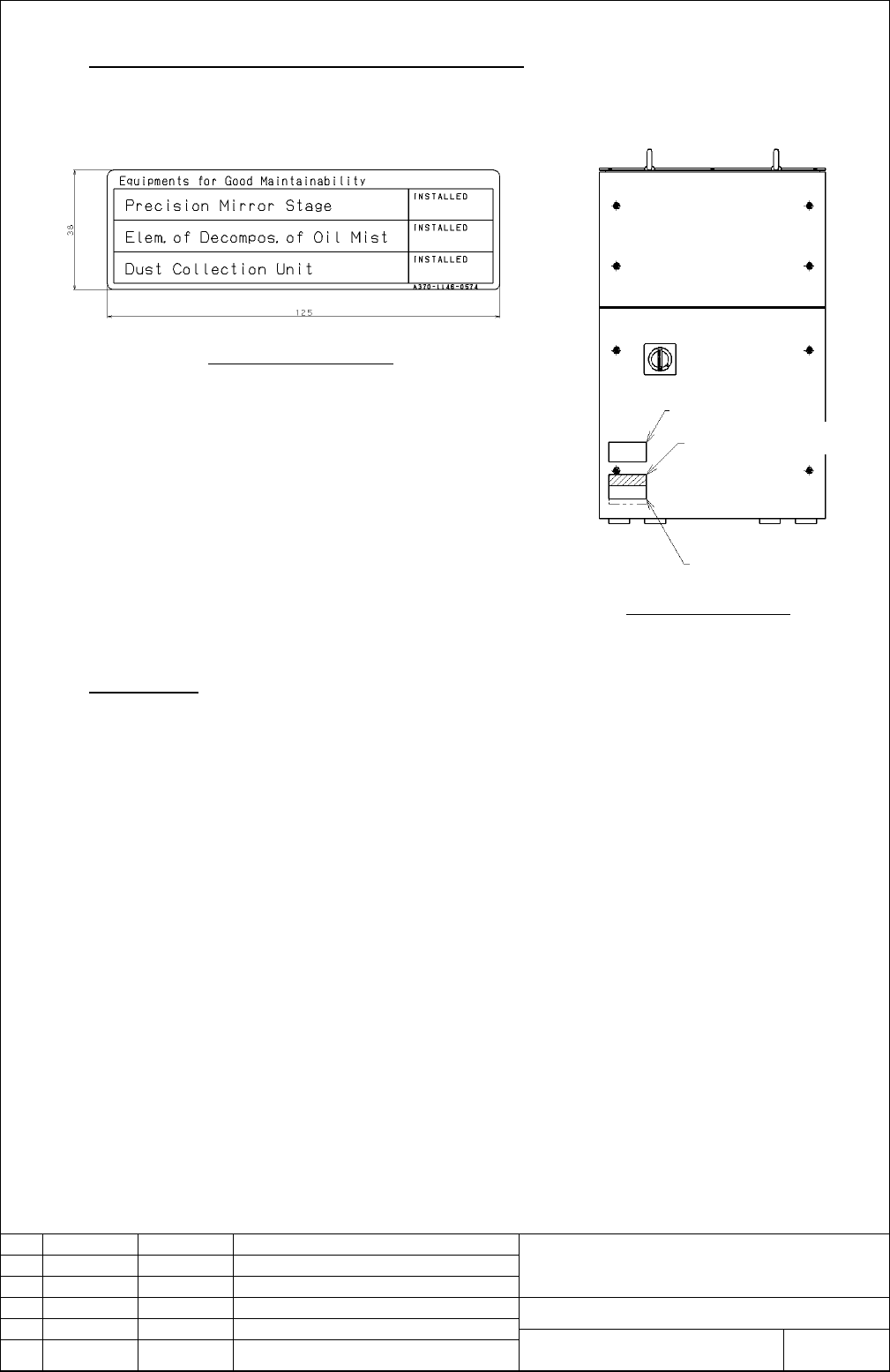

7. Identification of oscillator improvement applied
In oscillator to which the above-mentioned improvement design is applied, the sticker
of the figure below has been added in the panel.
Detail of additional sticker
A
dditional sticke
r
Name plate
(CE mark)
Sticker putting position
8. Application
Applied oscillator’s S/N is as follows.
8-1. C4000-E
All oscillators have been applied since L02740475.
8-2. C2000-E
L02Z20684∼L02Z20689, L02Z20692, L02Z20693, L03120695
All oscillators have been applied since L03120698.
8-3. C1000-E
L03210827, L03210830∼ L03210833
All oscillators have been applied since L03210836.
4/4
FANUC LTD
A-81053E-037
Description Design Date Edit.
01 021007 MURAKAMI
title
Sheet
Draw. No.
MURAKAMI
Add C1000-E, C2000-E
03 030303
