4. NOTES ON INSTALLATION
B–65152E/03
BCATLTLON EOT TFC α
30
CAUTION
7 Mounting the lid on the terminal box
The lid of the terminal box is provided with rubber gasket to make it waterproof. Check that
the lid has this gasket, then mount it on the terminal box.

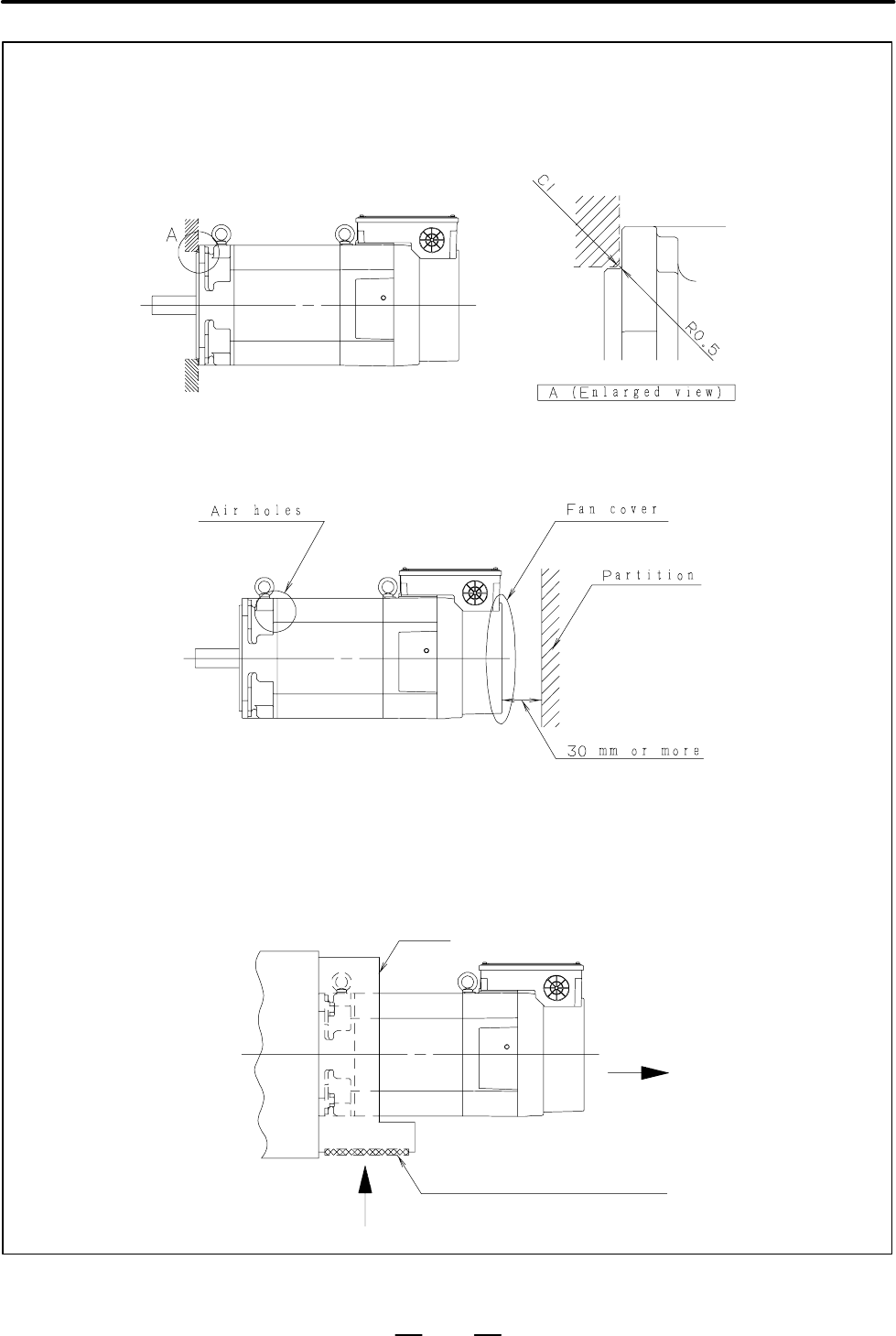

8 The edge of the fauset joint to mount the motor should be chamfered about C1.
9 Please space 30 mm or more between the fan cover and the partition to keep the cooling ability
well.
We recommend to take a structure such as you can clean air holes and the fan cover easily.
10 If much oil mist, dust, or other foreign matter settles on the motor, the cooling performance is
degraded, resulting in degraded performance of the motor. Design the machine such that only
clean cooling air is drawn into the motor.
Example) When a duct with a filter is installed on a flange mounting type motor with a
rearward exhaust slot
(The filter requires periodic cleaning.)
Duct
Cooling air
Cooling air
Filter (must be cleaned)
