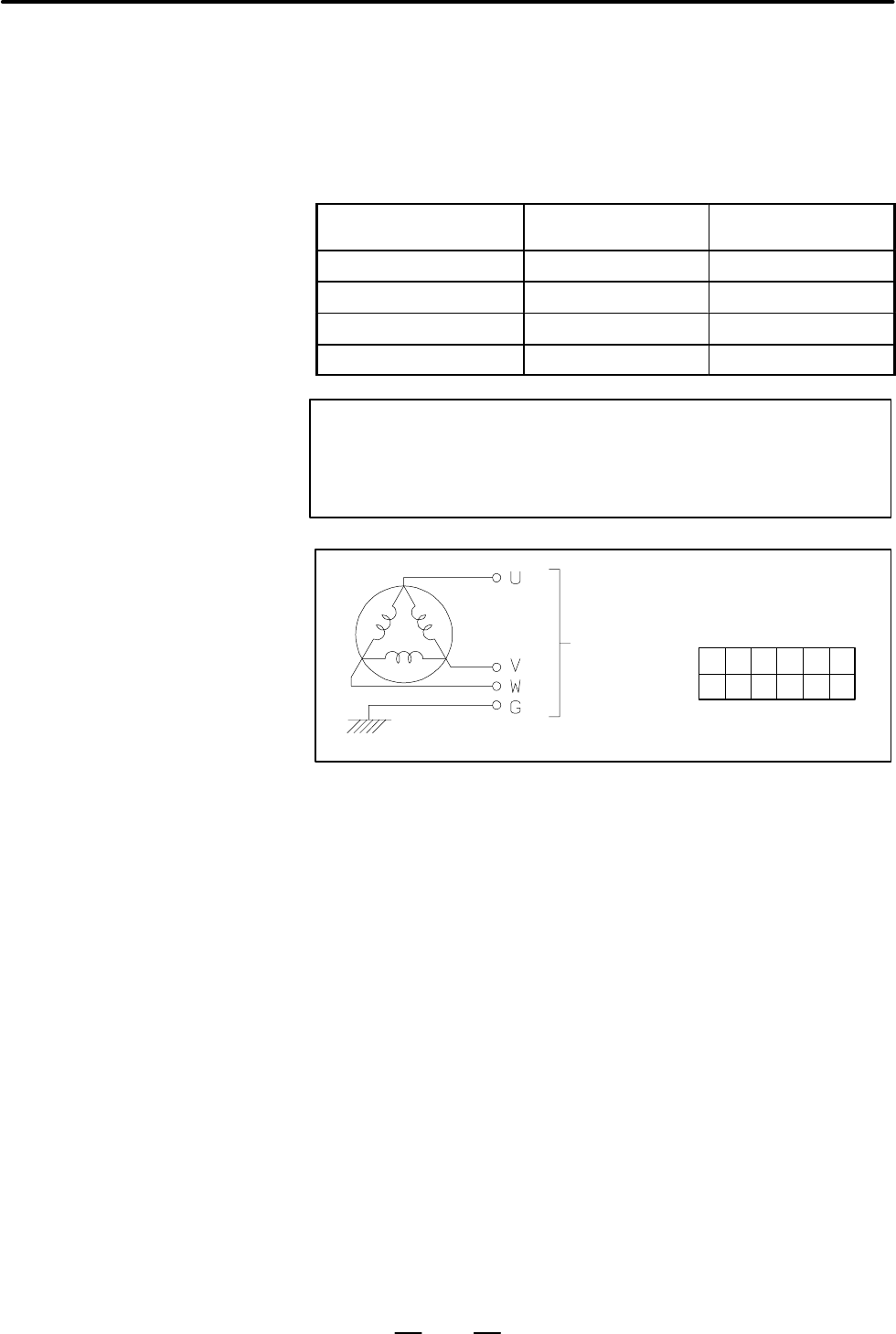

5. CONNECTIONS
B–65152E/03
FANUC AC SPINDLE MOTOR α series
62
The power–line and signal line are connected with the connector. Please
use the shield cable for the connection.
Please refer to FANUC SERVO AMPLIFIER a series (B–65162E) for
other respects in the connection.
Connector parts related to cable side
FANUC purchase
specification
NIHON–AMP
specification
Connector (*1) (*2) A63L–0001–0428/CT 176346–6
Contact A63L–0001–0456/AS 1–175218–2
Contact crimp tool A97L–0200–0979/L 914596–3
Contact pulling out tool A97L–0200–0980/D3 914677–1
NOTE
*1 Six contacts are contained.
*2 Order specification (A06B–6050–K121) is prepared as a
connector kit.
Power–lines
GWVU
654321
Connector pins arrangement
5.1
MODEL a0.5
Connection of
power–line
Previous page
Next page
