AC SPINDLE MOTOR Alpha series Descriptions Page 65

Descriptions
B–65152E/03
5. CONNECTIONS
FANUC AC SPINDLE MOTOR α series
65

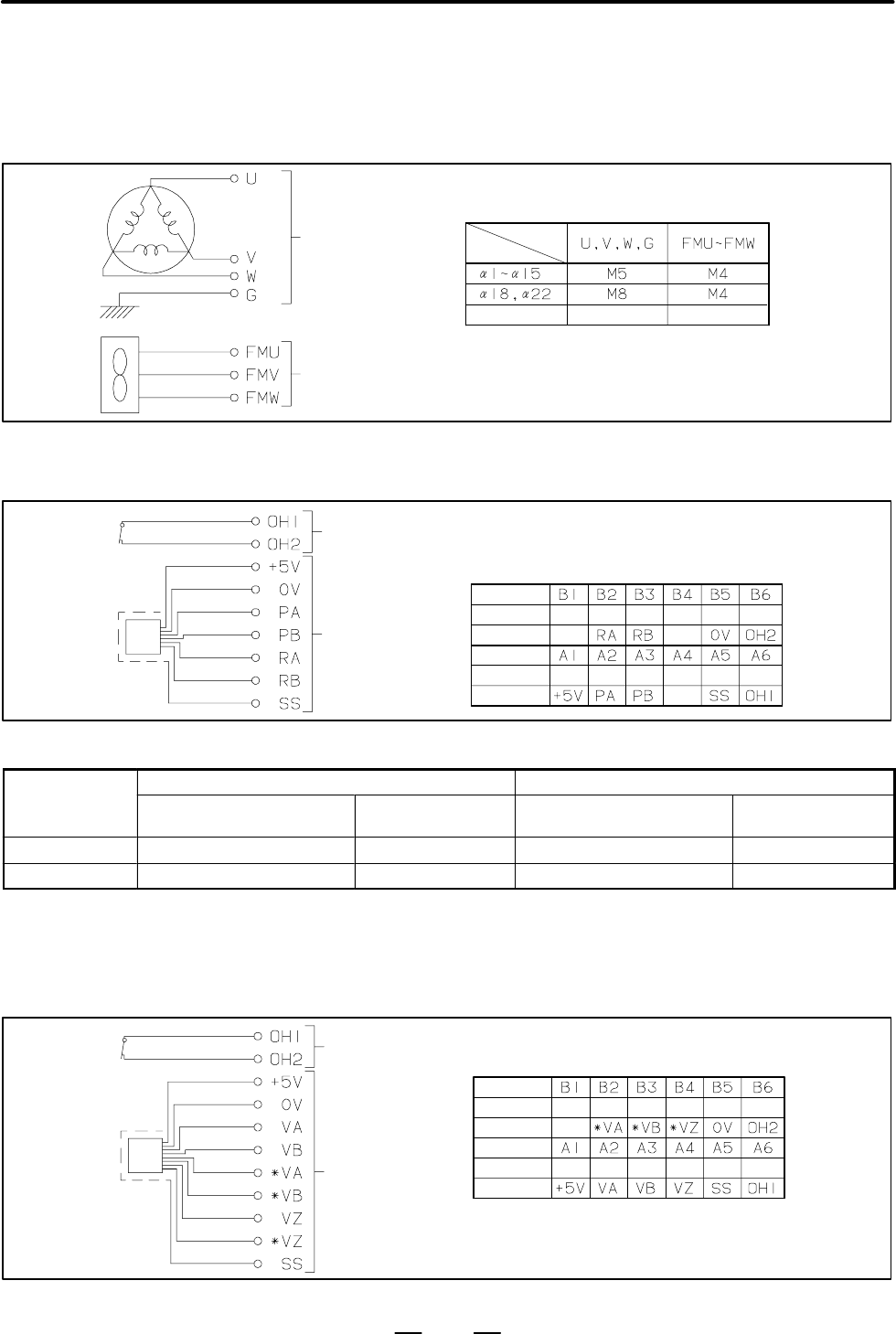

Cables of primary winding and fan motor are connected to the terminal
block.
M sensor (or built in sensor) and the over heat signal use a connector
manufactured by AMP.
The connector housing and the connector are attached to the motor.
Primary
winding
Fan motor
Type of screws used in the terminal block
Motor model
Terminal
name
a30, a40
M10
M3.5
NOTE1 Screws of high speed models are same as above.
2 Refer to FANUC SERVO AMPLIFIER α series
DESCRIPTIONS (B–65162E) for specifications of
connection cables.
Overheat
signal
M sensor
Pin assignment in the connector
Number
Color
Signal
Number
Color
Signal
Green
Red
White Yellow
Black Blue
No
color
Connector: Manufactured by D–3000 series
Motor side Cable side
FANUC purchase
specification
AMP specification
FANUC purchase
specification
AMP specification
Housing A63L–0001–0535/121KDF 178964–6 A63L–0001–0460/121KD 178289–6
Contact A63L–0001–0456/ASMT 175288-2 A63L–0001–0456/ASM 1–175217–2
Crimping tool : 919601–1
Extractor : 914677–1
Overheat
signal
MZ sensor
Pin assignment in the connector
Number
Color
Signal
Number
Color
Signal
Connector, Crimping tool and Extractor
are same as above case of M sensor.
Blue
White–
orange
White–
purple
Orange
Red Black Green Gray
No
color
5.2
MODELS a1–a40
When M sensor is
provided
When MZ sensor is
provided
