/ 851

PROGRAMMING14. COMPENSATION FUNCTION

B–63094EN/02

274

(α, β)

Center of

rotation

Angle of rotation R (incremental value)

Angle of rotation (absolute value)

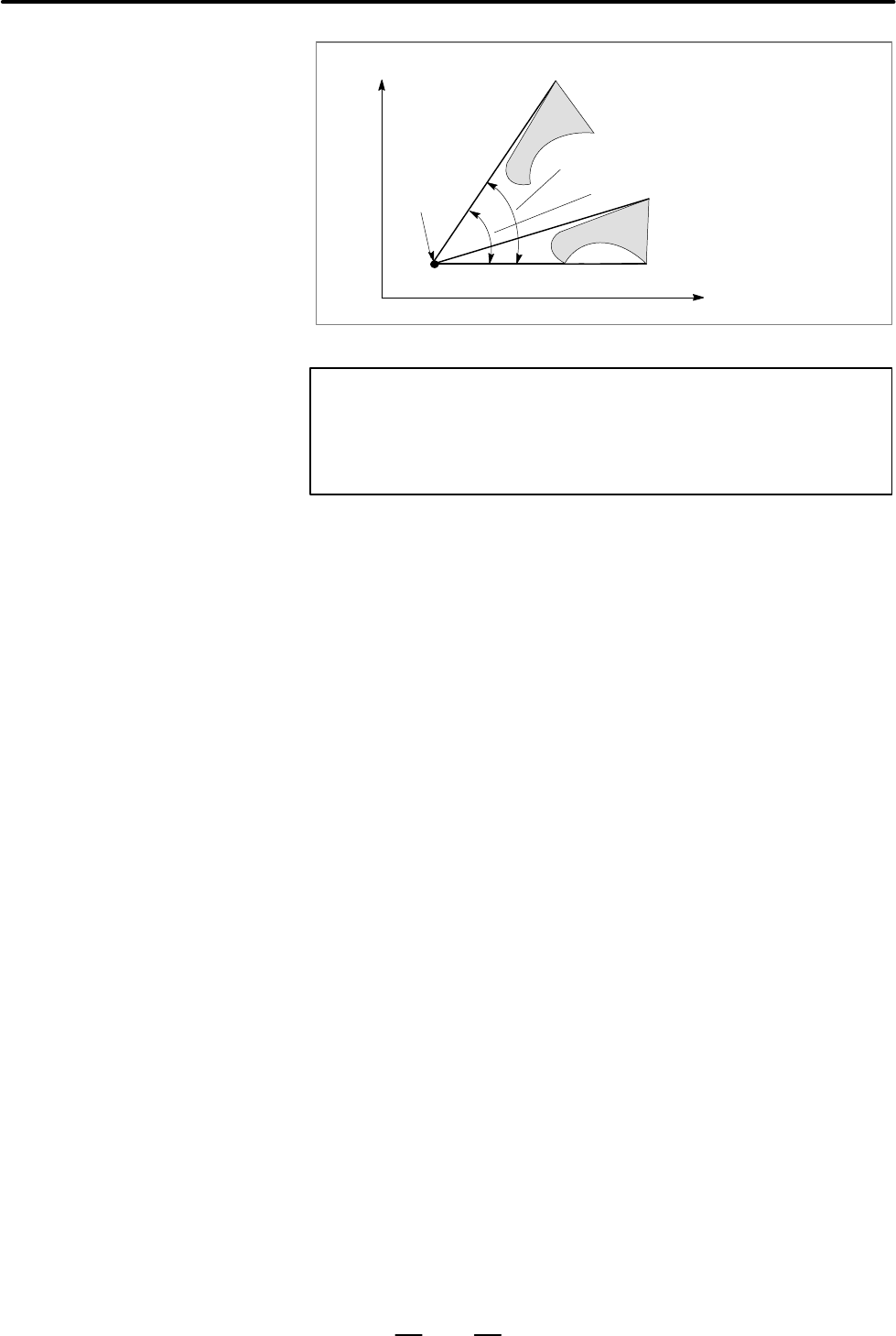

Fig. 14.8 (b) Coordinate system rotation

NOTE

When a decimal fraction is used to specify angular

displacement (R_), the 1’s digit corresponds to degree

units.

The G code for selecting a plane (G17,G18,or G19) can be specified

before the block containing the G code for coordinate system rotation

(G68). G17, G18 or G19 must not be designated in the mode of coordinate

system rotation.

The center of rotation for an incremental command programmed after

G68 but before an absolute command is the tool position when G68 was

programmed (Fig. 14.8 (c)).

When α_β_ is not programmed, the tool position when G68 was

programmed is assumed as the center of rotation.

When R_ is not specified, the value specified in parameter 5410 is

assumed as the angular displacement.

The G code used to cancel coordinate system rotation (G69) may be

specified in a block in which another command is specified.

Cutter compensation, tool length compensation, tool offset, and other

compensation operations are executed after the coordinate system is

rotated.

Both coordinate system rotation and three–dimensional coordinate

conversion use the same G codes: G68 and G69. The G code with I, J,

and K is processed as a command for three–dimensional coordinate

conversion. The G code without I, J, and K is processed as a command

for two–dimensional coordinate system rotation.

Explanations

D G code for selecting a

plane: G17,G18 or G19

D Incremental command in

coordinate system

rotation mode

D Center of rotation

D Angular displacement

D Coordinate system

rotation cancel

command

D Tool compensation

D Relationship with

three–dimensional

coordinate conversion

(G68, G69)
