Tool axis compensation in tool axis direction Additional Manual Page 20

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
Tool axis compensation in tool axis direction
A-78437E
Page
19/24
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa
19657
Master rotation axis number
[Input type] Parameter input
[Data type]
word type
[Valid data range] 0 - Max axes
When a machine does not have the rotation axis that turns about the
tool axis, the axis number of a rotation axis used as the master axis
is set. For machines not using the master-axis configuration, 0 is
set.
When the tool axis direction is controlled by two rotation axes,
neither of which turns about the tool axis, one of the rotation axes is
mounted on the other rotation axis as shown in the figure below. In
this case, the rotation axis on which the other rotation axis is
mounted is called the master axis.

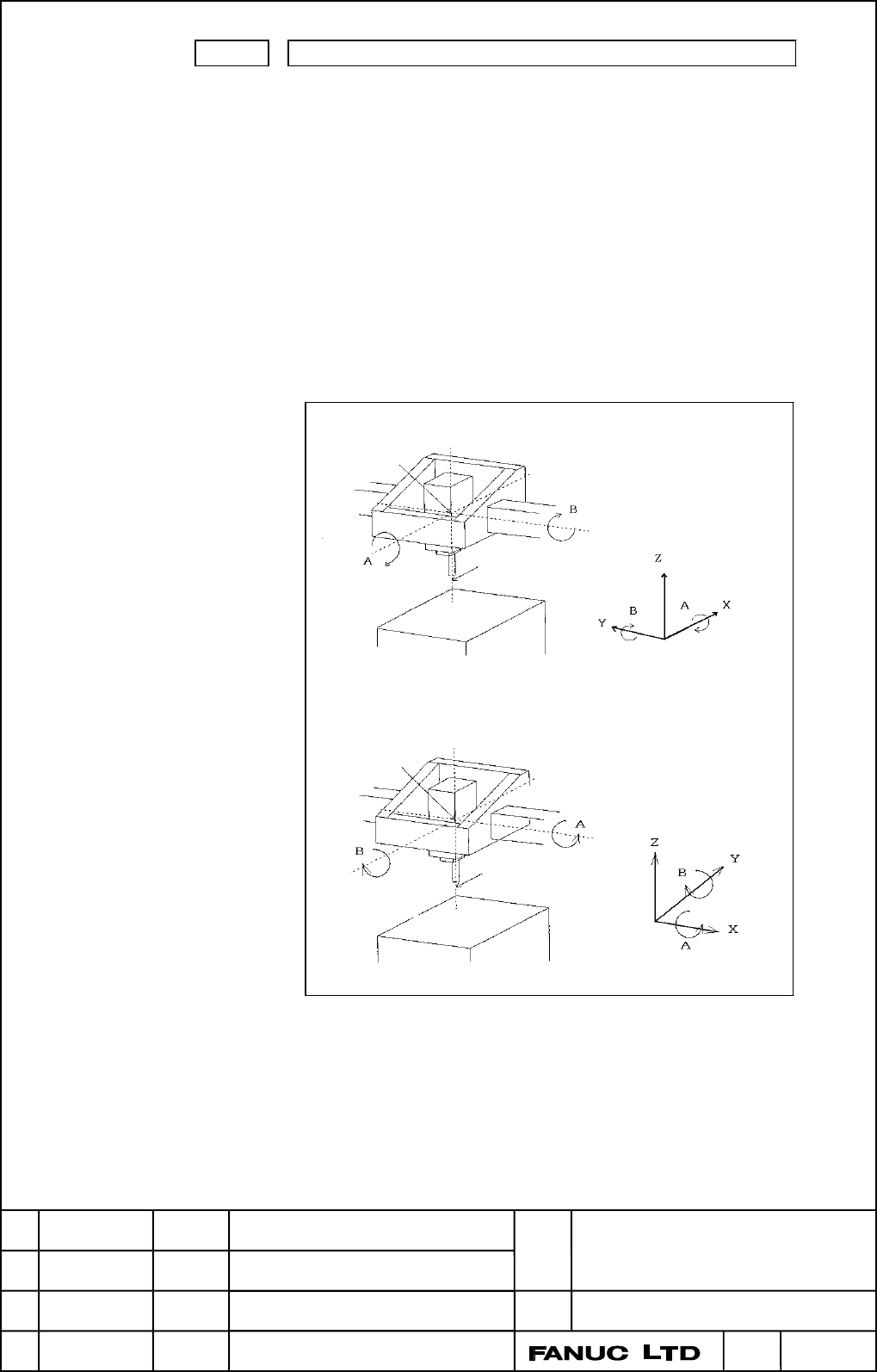

A- and B-axes (The tool axis is the Z-axis, and the B-axis is the master.)
A- and B-axes (The tool axis is the Z-axis, and the A-axis is the master.)
Rotation cente
r
Tool axis direction
Workpiece
Workpiece
Tool axis direction
Rotation cente
r
Example for setting parameters that determine the machine onfiguration
Tool axis direction: Z-axis
Axis configuration: W, X, Y, Z, A, B
Rotation axes: A-axis (axis rotating about the X-axis) , B-axis (axis rotating about the Y-
axis)
Master axis: A-axis
