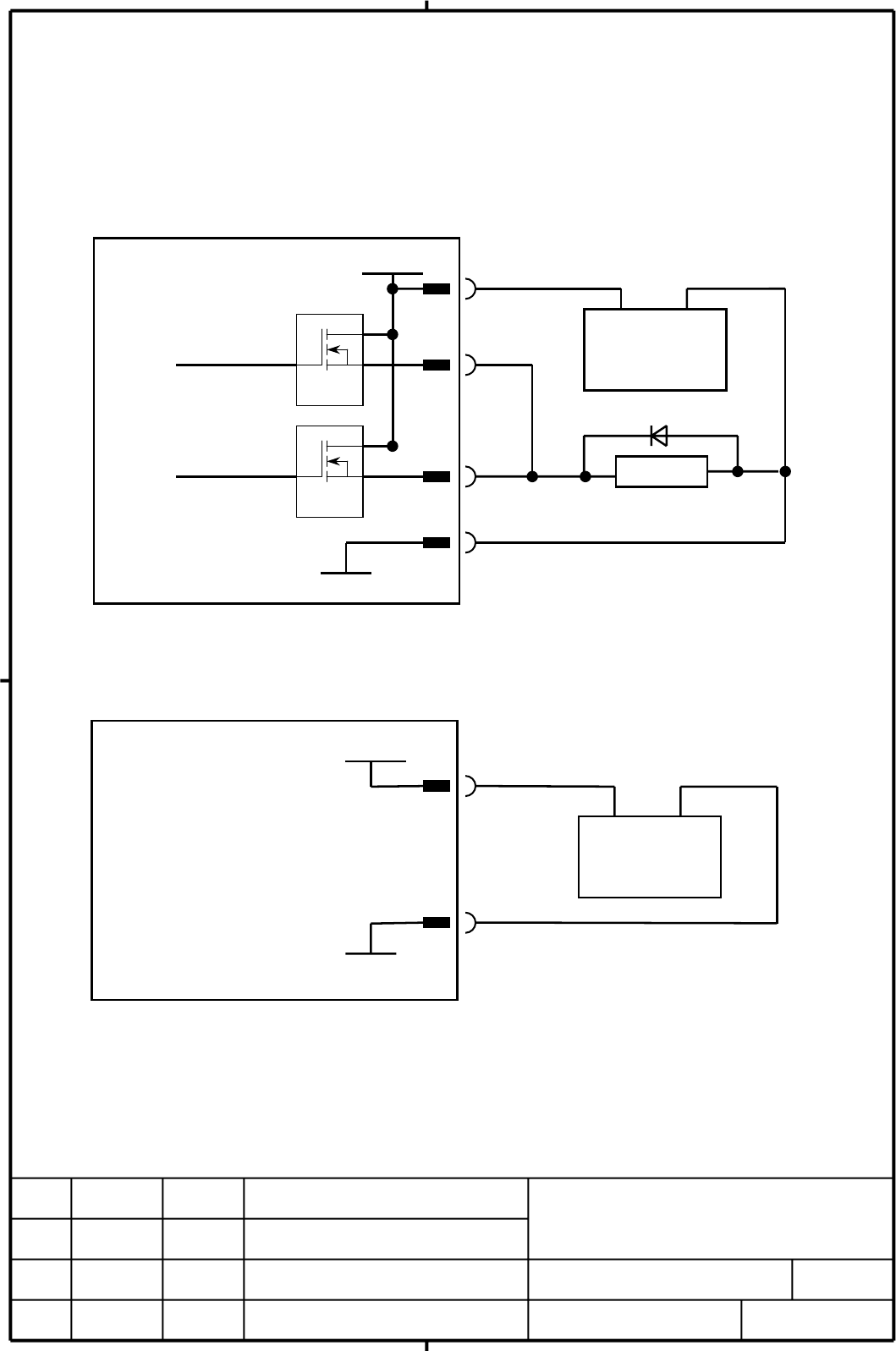

Parallel DO(output signal) connection
A DO load current of twice the level can be obtained by connecting DO points in parallel
and exercising ON/OFF control at the same time in the sequence. Namely, the maximum
load current per DO point is 200mA.By connecting two DO points in parallel and turning
on the two DO points at the same time, 400mA can be obtained. In this case, however,
the leakage current is doubled up to 40μA when the DO points are turned off.
11. Power supply Connection
Note : The +24V signal to be supplied to the I/O module moust not be turned off
During operation. Otherwise, a CNC communication alarm is issued. Ensurethat+24V
is supplied either when or before the power to the CNC is turned on, and that +24V
is removed either when or after the power to the CNC is turned off.
