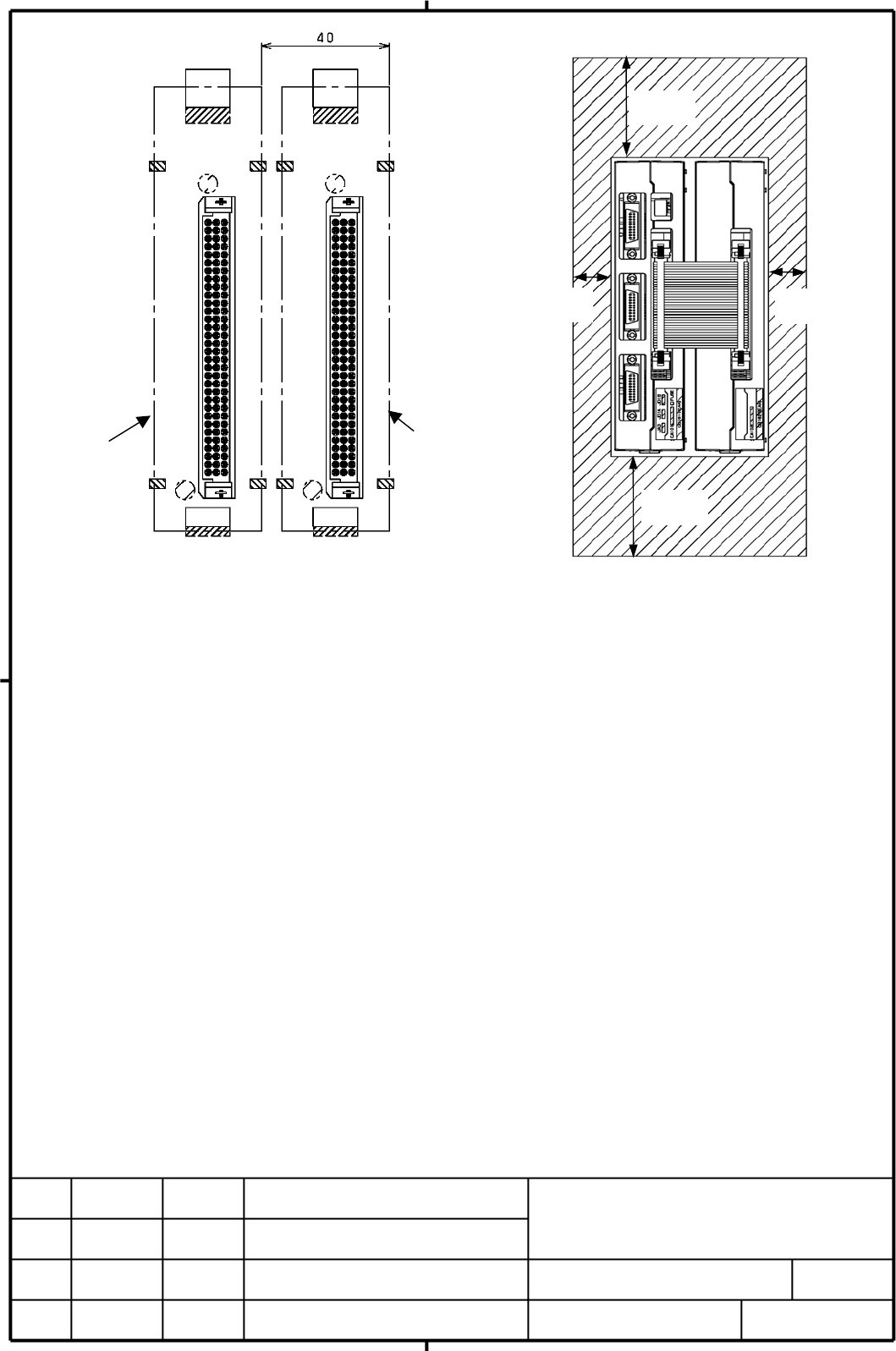

Note
(1) For ventilation, leave a space at least 50mm on the upper and down side, and 10mm
on the right and left side.
(2) For wiring, leave a space at least 70mm on the front of module.
(3) Leave a space at least 40mm between Basic module and Expansion module.
(4) Leave a space at least 6mm backside of connector panel printed circuit board because
hook and stopper protrude from the back side.
(5) Basic module must be installed to the left of Expansion module
(6) Attach the pedestal on the backside of the connector panel printed circuit board
board to prevent it from bending when the modules are installed.
(7) Thickness of connector panel printed circuit board must be 1.7±0.1mm
50m
50m
10m
Modules need to be spaced at
least 40mm.
The spaces shown in above
figure are required to ensure
air flow
Expansion
module
10m
Basic
module
