FANUC Pulse Input Type
Digital Servo Adapter
Connection Manual (Hardware)
A-77226EN
/ 26

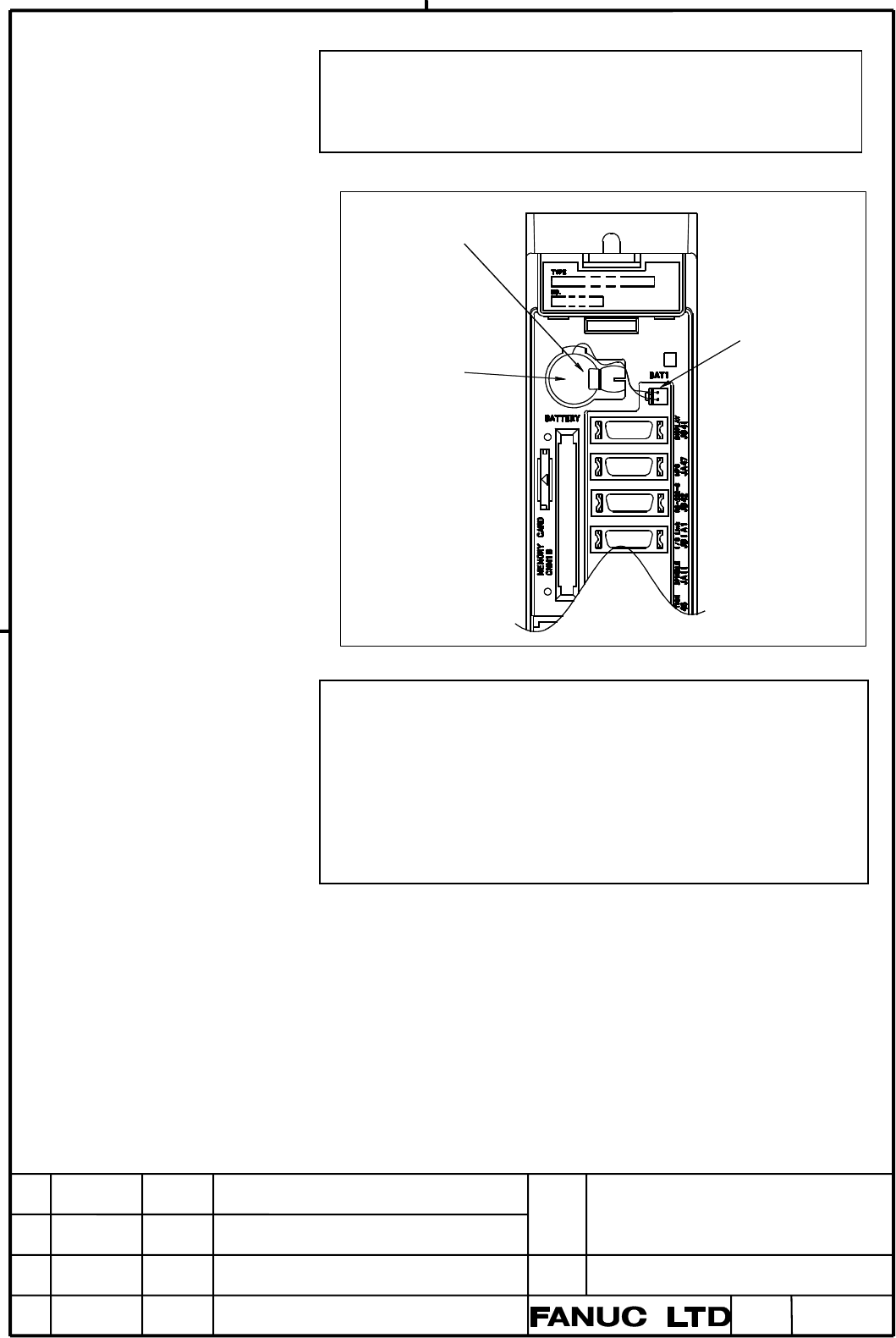

Lithium battery
Battery latch
Battery connector
Used batteries must be discarded according to appropriate local
ordinances or rules.
When discarding batteries, insulate them by using tape and so forth
to prevent the battery terminals from short-circuiting.
CAUTION
1. Before replacing the battery, check that the latest data of the SRAM
memory is already backed up.
2. Turn off the power to the machine before replacing the battery.
Only personnel trained in maintenance and safety can replace the
battery when the power to the machine is on.
3. Complete steps (3) to (5) above within 30 minutes.
If the battery is detached for a long time, the contents of the SRAM
memory are lost.
WARNING
Using other than the recommended battery may result in the batter
y
exploding.
Replace the battery only with the specified battery (A02B-0200-K102).
