FANUC Series16i /18i – MB/TB
Retract for high-speed remote buffer
A
-78086EN/03
2000.03.15
02 2005.02.22 Out of frame 2 is added
03 2005.11.04 Out of frame 3 is corrected
2. Specification
The retract operation is done to each axis when the retract signal is input while operating the
high-speed remote buffer, and the high-speed remote buffer operating does the deceleration
stop. It enters the state of reset after retraction. The acceleration/deceleration type of the retract
operation is a linear acceleration/deceleration of a time constant type. Moreover, set the time
constant to Parameter No.7521, the retract value to Parameter No.7522, and feedrate to
Parameter No.7523.

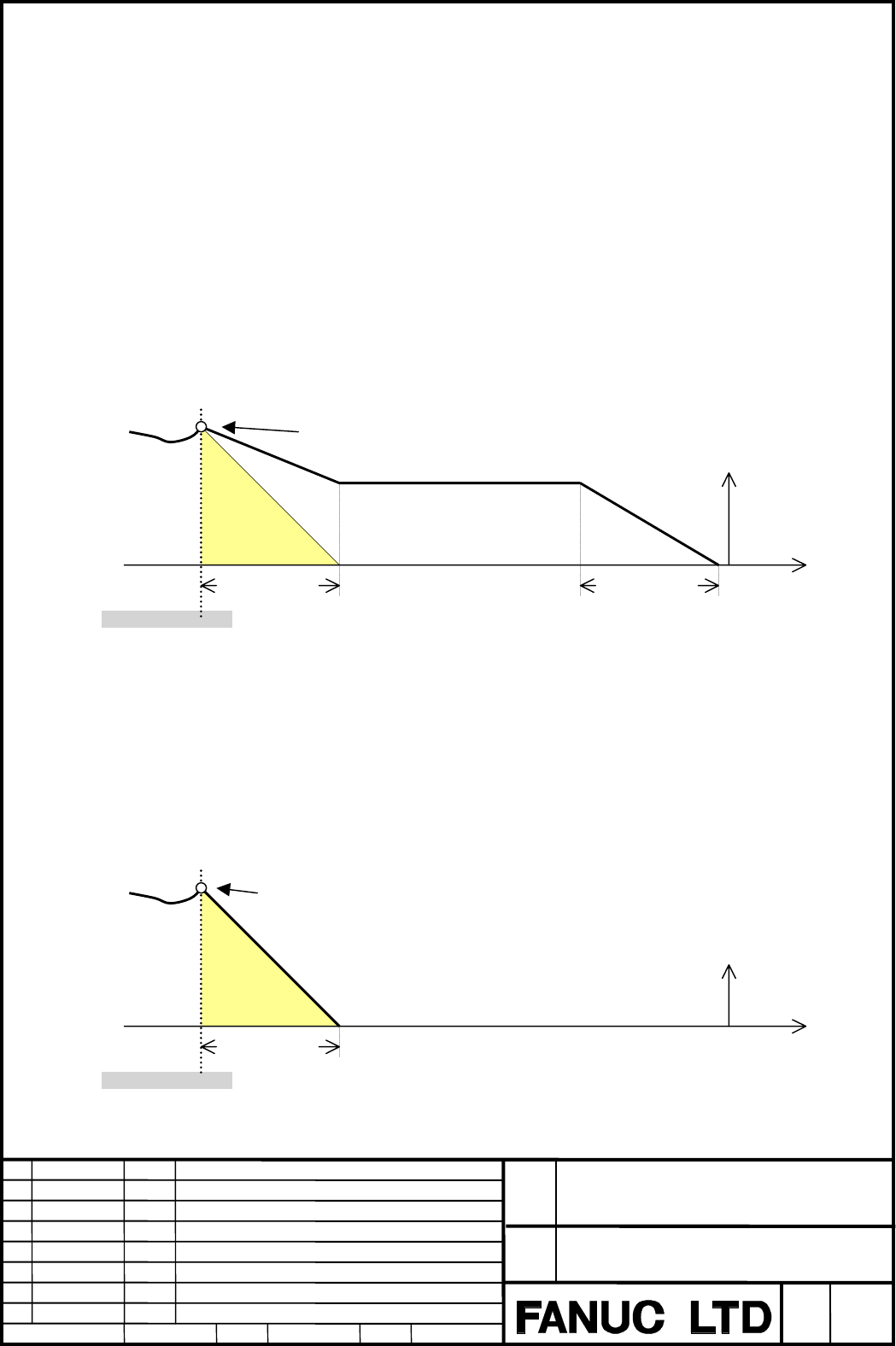

(Retract value <> 0)
Deceleration and retract movement starting
Feedrate value
Retract value
Time constant Time constant
Retract signal ON
The retract movement starts, and the high-speed remote buffer operating does the deceleration
stop.
(Retract value = 0)
Deceleration starting
Feedrate value
Time constant
Retract signal ON
Previous page
Next page

Contents Summary of FANUC Series 16i/18i Additional Manual
