FANUC Series16i /18i – MB/TB
Retract for high-speed remote buffer
A
-78086EN/03
2000.03.15
02 2005.02.22 Out of frame 2 is added
03 2005.11.04 Out of frame 3 is corrected
When there is a standard axis, which passes a constant position at the cycle operation,
the deceleration can be started at the specified timing. By setting the parameter of the
standard axis (No.7524) and the absolute coordinate position (No.7525), the deceleration
is started after the retract signal is input and the standard axis passes the specified
absolute coordinate position.

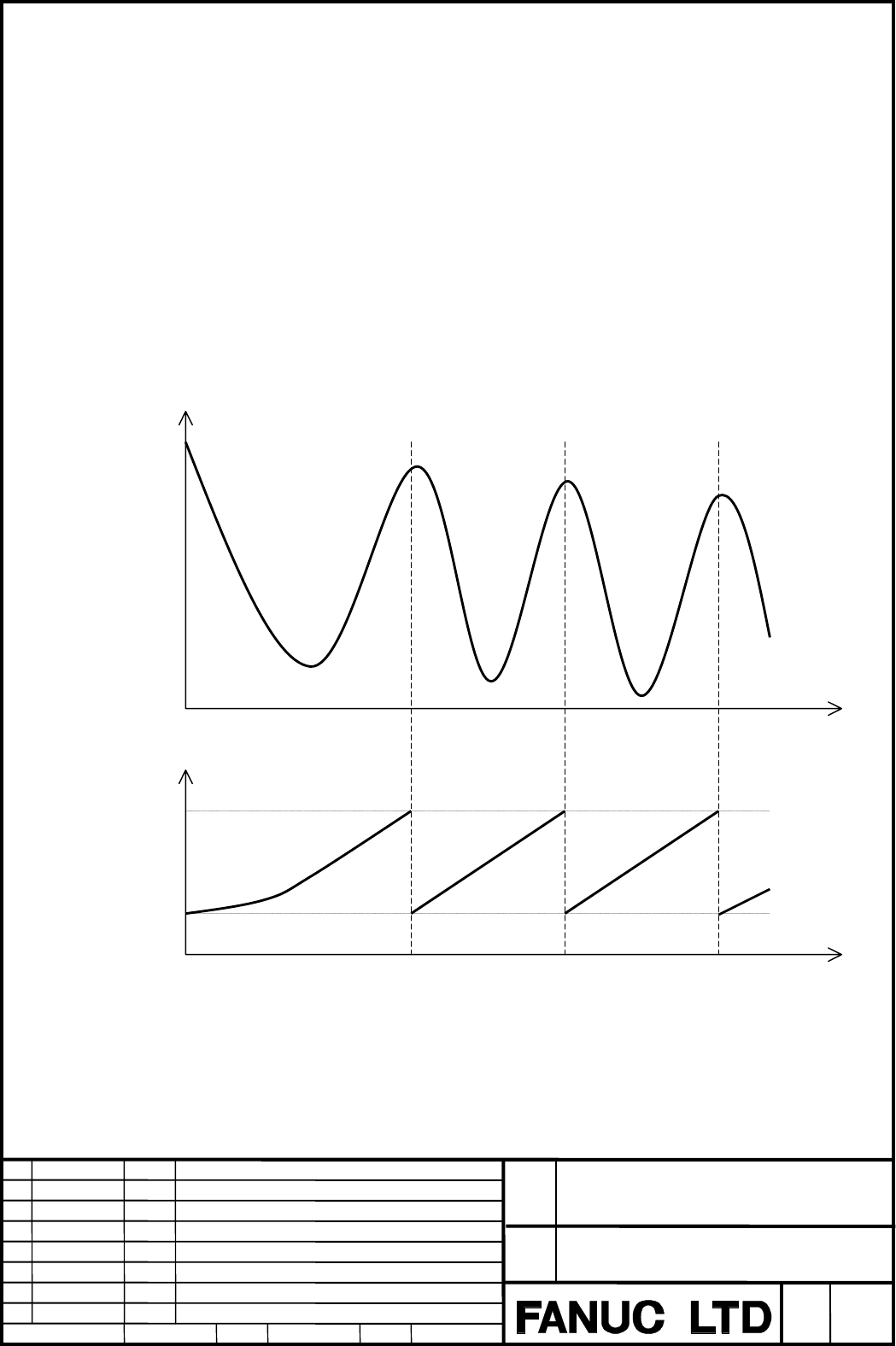

For example in the figure below, at X axis is operating the back and forth and C axis is
operating equal velocity rotates, if the deceleration stop at the position where X axis is the
farthest from C axis, C axis is assumed to be a standard axis and the absolute coordinate
position are assumed to be 0deg.
(C axis is rounded to 360deg.)
X axis
G05 start
C axis
360 deg
0 deg
G05 start
Specified position Specified position Specified position
X axis starts to decelerate at a specified position if the retract signal is input.
