FANUC Series16i /18i – MB/TB
Retract for high-speed remote buffer
A
-78086EN/03
2000.03.15
02 2005.02.22 Out of frame 2 is added
03 2005.11.04 Out of frame 3 is corrected
It is possible to decelerate and stop the remote buffer operation at finishing the retract value
movement after inputting the retract signal.
When the parameter No.7502#6 is set to 1 and the standard axis for retract is set to the
parameter No.7524, the remote buffer operation is decelerated and stopped at the same time
that the standard axis movement for retract value is finished.
As for the axis except the standard axis, when the retract value remains at the remote buffer
operation stop, the axis decelerates and stops after moving the remaining retract value.

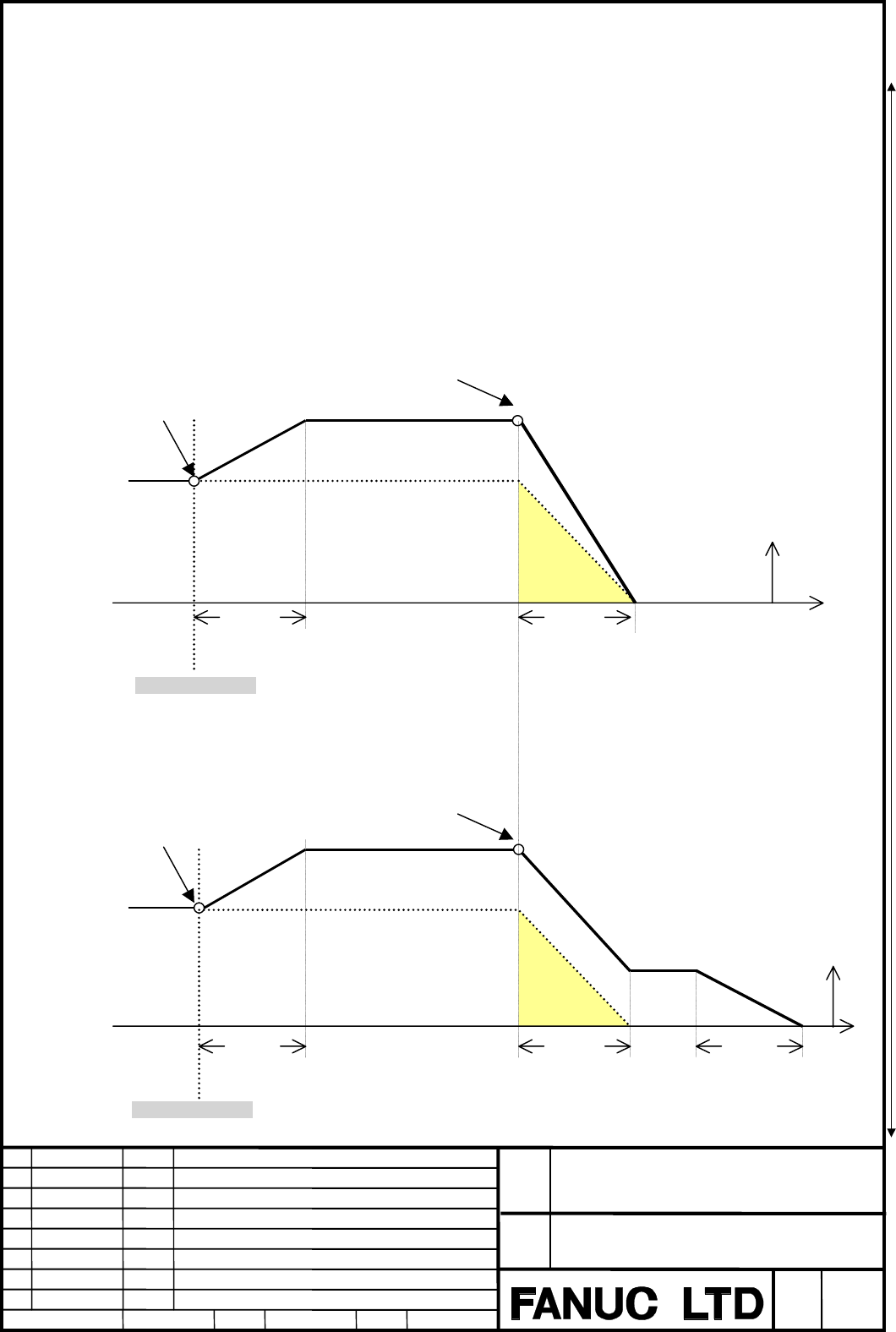

• The standard axis (parameter No.7524 setting axis) behavior
• The axis except the standard axis behavior (In case that the retract value remains.)
Feedrate value
Time constantTime constant
Retract signal ON
Retract value
Retract movement starts
Deceleration starts
Feedrate value
Retract signal ON
Time constant
Time constant
Time constant
Retract value
Retract movement starts
Deceleration starts
