F L-net Board for FANUC Series 30i/300i, 31i/310i, 32i/320i-MODEL A Operators manual Page 104

Operators manual
1.SETTING OF FL-net FUNCTION SETTING B-64164EN/01
- 94 -
1.2.2 Network Management Table
The FL-net network management table screen allows the user to
reference the parameters of each node in the FL-net network
management table.
Procedure
1 Press the [NETWORK] soft key. The NETWORK screen
(Screen 1-5) then appears.

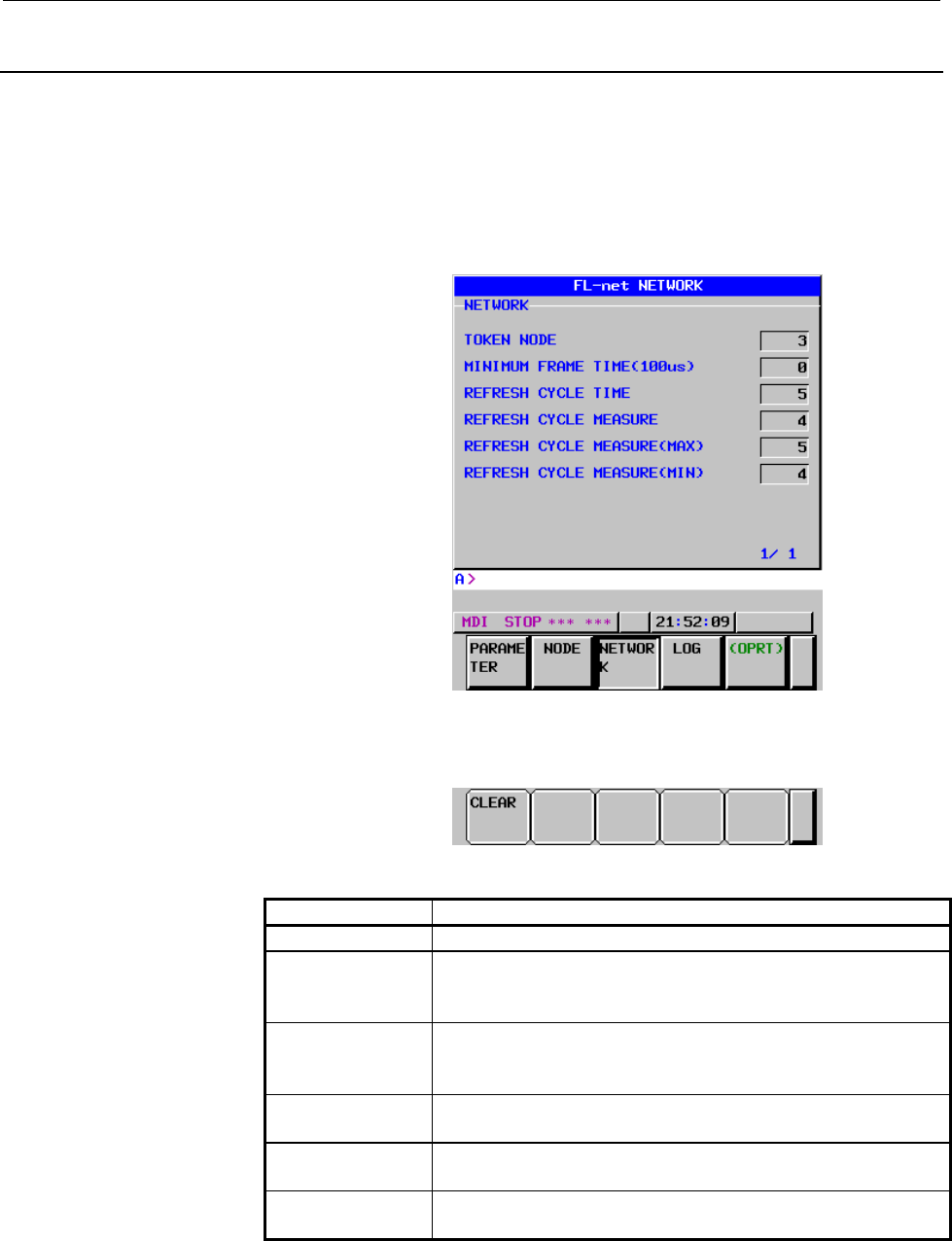

Screen 1-5 FL-net NETWORK Screen
2 As necessary, press the [(OPRT)] soft key, then use the following
soft keys:
Display item
Item Description
TOKEN NODE Indicates the node number of a node having a token.
MINIMUM FRAME
TIME
Indicates the maximum value among the minimum allowable
frame intervals of the nodes participating in the network.
(Unit: 100 µs)
REFRESH CYCLE
TIME
Indicates the current allowable refresh cycle time measured for
the local node. (Unit: 1 ms)
This value is 120% of the refresh cycle measurement time.
REFRESH CYCLE
MEASURE
Indicates the current refresh cycle measurement time measured
for the local node. (Unit: 1 ms)
REFRESH CYCLE
MEASURE(MAX)
Indicates the maximum value among the refresh cycle
measurement times measured for the local node. (Unit: 1 ms)
REFRESH CYCLE
MEASURE(MIN)
Indicates the minimum value among the refresh cycle
measurement times measured for the local node. (Unit: 1 ms)
CLEAR
Pressing the [CLEAR] soft key resets the maximum value and
minimum value of refresh cycle measurement times.
