F L-net Board for FANUC Series 30i/300i, 31i/310i, 32i/320i-MODEL A Operators manual Page 88

Operators manual
1.SETTING OF FL-net FUNCTION SETTING B-64164EN/01
- 78 -

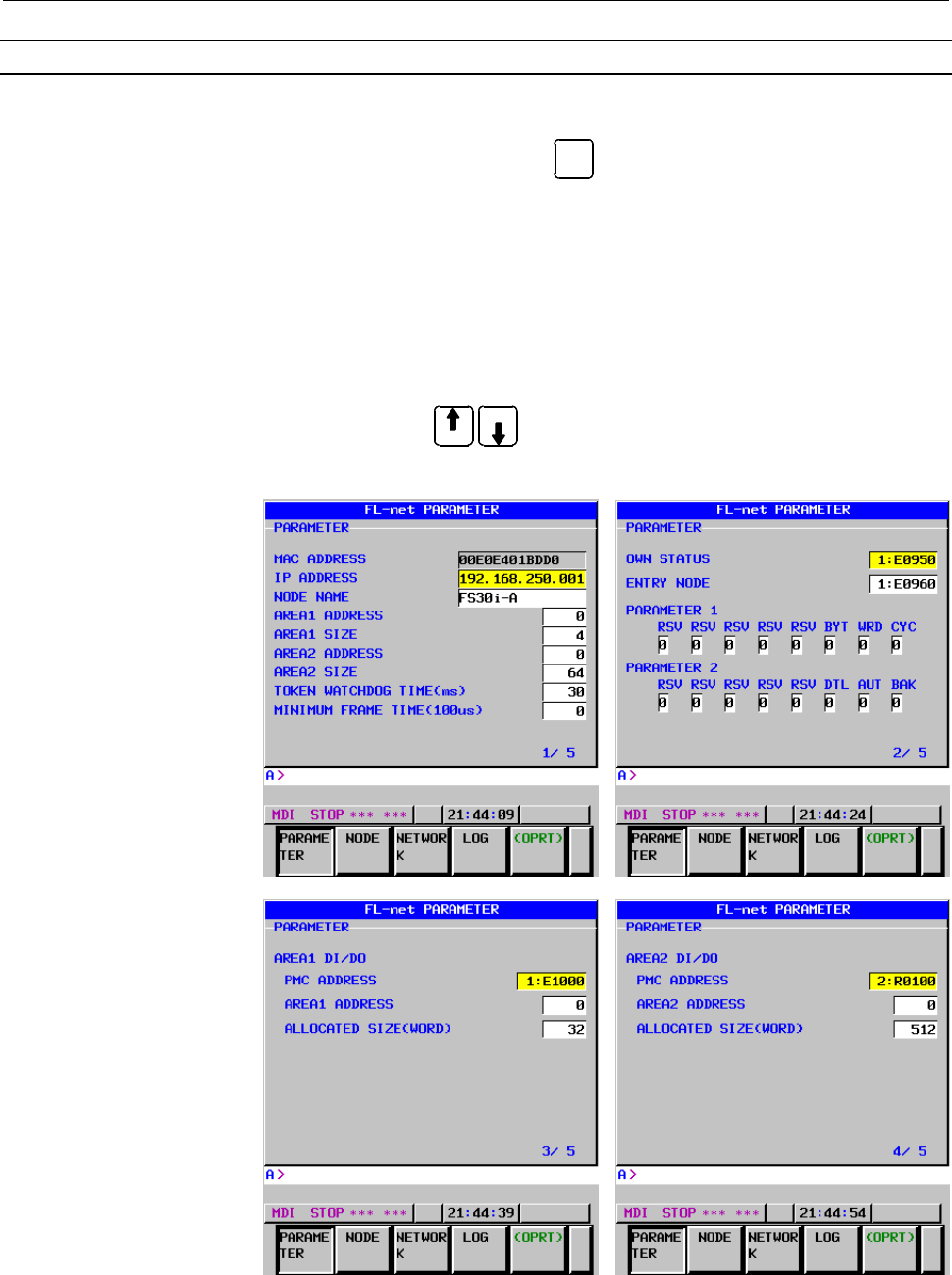

Displaying the parameter screen
Procedure
1 Press function key
SYSTEM
.
2 The [FL-net] soft key appears. (If the [FL-net] soft key is not
displayed, press the next-menu key several times, which is
located at the right end of soft keys.)
3 Pressing the [FL-net] soft key displays the FL-net PARAMETER
screen, the FL-net NODE MONITOR screen, the FL-net
NETWORK screen, or the FL-net LOG screen.
4 Press the [PARAMETER] soft key to display the parameter
screen (Screen 1-1).
5 You can change pages of the parameter screen by using page
keys
PAGE
PAGE
.
6 Move the cursor to the item you want to set, and enter a
parameter value.
Previous page
Next page
