1. Fanuc
  2. F L-net Board for FANUC Series 30i/300i, 31i/310i, 32i/320i-MODEL A

F L-net Board for FANUC Series 30i/300i, 31i/310i, 32i/320i-MODEL A Operators manual Page 134

Operators manual
2.CABLE CONNECTION CONNECTION B-64164EN/01
- 124 -

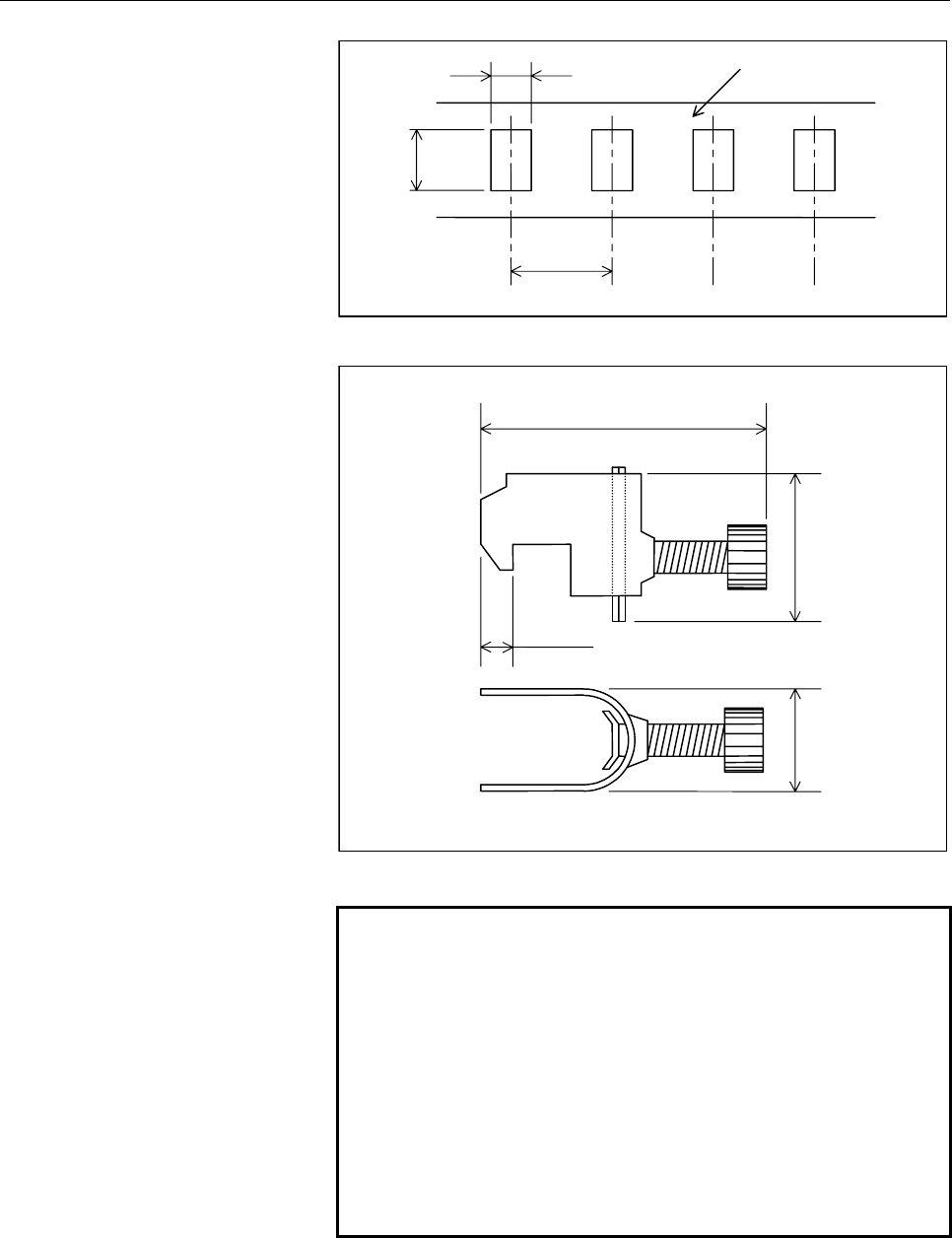

Ground
p
late
8mm
12mm
20mm
Details of clamp fixture mounting holes
55mm max.
28mm
6mm
17mm
External dimensions of clamp fixture
NOTE
1 Unlike ordinary Ethernet communication, FL-net
communication does not perform retransmission
processing that is performed at intervals of several
seconds. This is to achieve high-speed response.
Therefore, FL-net cable installation must be more
resistant to noise than ordinary Ethernet cable
installation.
2 After cable installation, conduct sufficient
communication tests not only before system
operation but also after system operation to ensure
noise resistance.
