Instruction: Acceptance Test Report for Dual Check Safety Users manual Page 13

Users manual

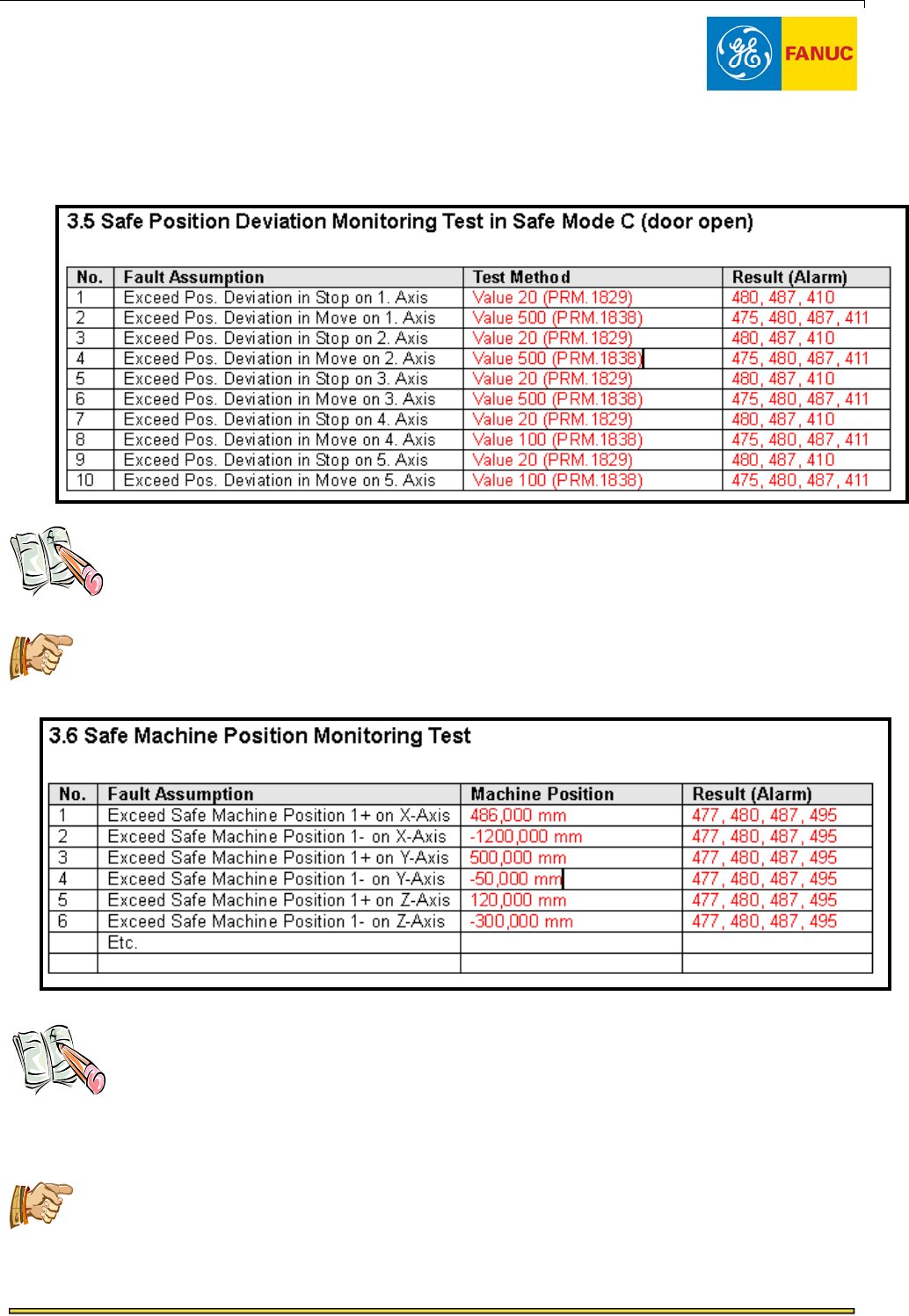

For the test of the Safe Position Deviation Monitoring halve the original values set in
PRM.1829, 1838 accordingly (example: normal value for PRM.1829: 40; test setting:
20).
most probably come up
with alarm at the next power on after the parameter change.
For the test of safe stop deviation monitoring the machine will
n
be tested and corresponding machine position has to be filled in the draft as
above.
or
ct trigger position for the alarm is not to be
documented. A servo waveform is not necessary.
I order to test safe machine position in Safe Mode C each of the safe stroke limits
have to
Often the software stroke limits prevent the axis from entering the safe stroke limit. F
test purpose please adapt temporarily the normal soft stroke limits accordingly. The
limiting machine position, at which the dual check safety alarm occurs, has to match with the
corresponding value of the safety parameter. The exa
File Name: Guideline DCS Acceptance Test
Created by: Edgar Weiter at 30-Nov-04
Page 13 of 21
