B–62073E–1/04 2. INTERFACE BETWEEN CNC AND PMC–NA OR NB

– 137 –

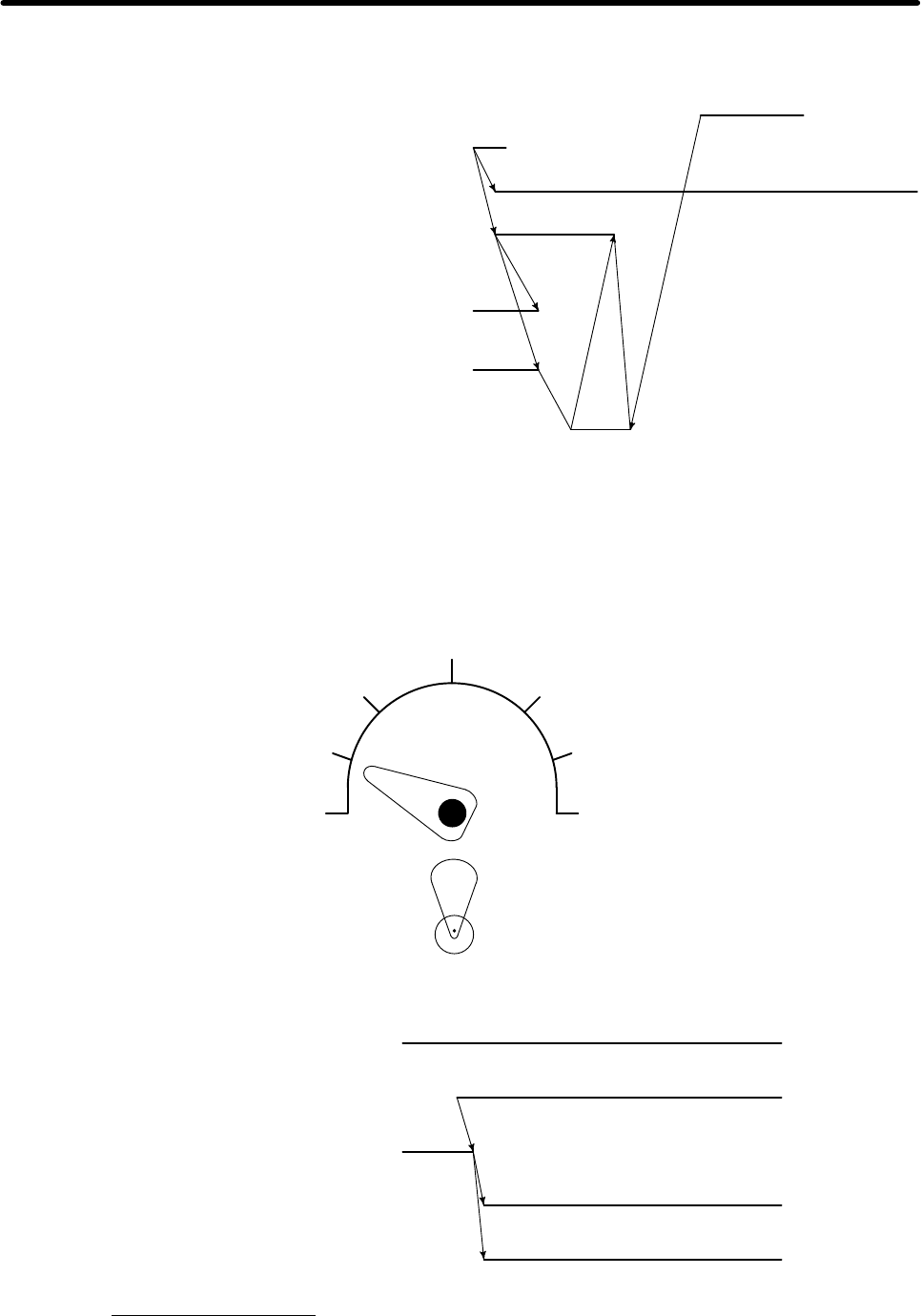

3 The following time chart shows the operation for block M∆∆ ; which switches simultaneous automatic and

manual operation to automatic operation:

Next block

M command M∆∆ ;

Code signal M0-M31

Strobe signal MF

Automatic/manual simultaneous

operation selection signal MOVL

Signal for selecting manual mode H/J/S

End signal

Set signal MOVL low for selecting simultaneous automatic and manual operation after setting a signal low

for selecting a manual mode, or turn them low at the same time.

Assume that a switch named “Manual handle interrupt” is prepared on the machine operator’s panel to

enable the operator to interrupt the cutting axis by manual handle feed to change the cutting depth. If the

sequence is set as shown in the following time chart, operation immediately changes from automatic op-

eration to simultaneous automatic and manual operation and it is possible to interrupt the cutting axis by

manual operation.

Tape ending

Memory operation

Tape operation

MDI

Incremental feed

Manual reference

point return

Manual handle feed

OFF

Memory command selection

signal MEM

Z-axis manual handle interrupt switch

Z-axis parking signal PK3

Automatic/manual simultaneous

operation selection signal MOVL

Manual handle feed selection signal H

Z axis manual handle interrupt

Selecting the interrupt type

The interrupt type is switched between cutting axis interrupt and setup interrupt according to the states of park-

ing signals (PK1, PK2, PK3, ...) when the simultaneous automatic and manual mode is selected. The following
