SERIES 15-150 MODEL B Connection manual Page 219

Connection manual

Page of 353

/ 353

B–62073E–1/04 2. INTERFACE BETWEEN CNC AND PMC–NA OR NB

– 213 –

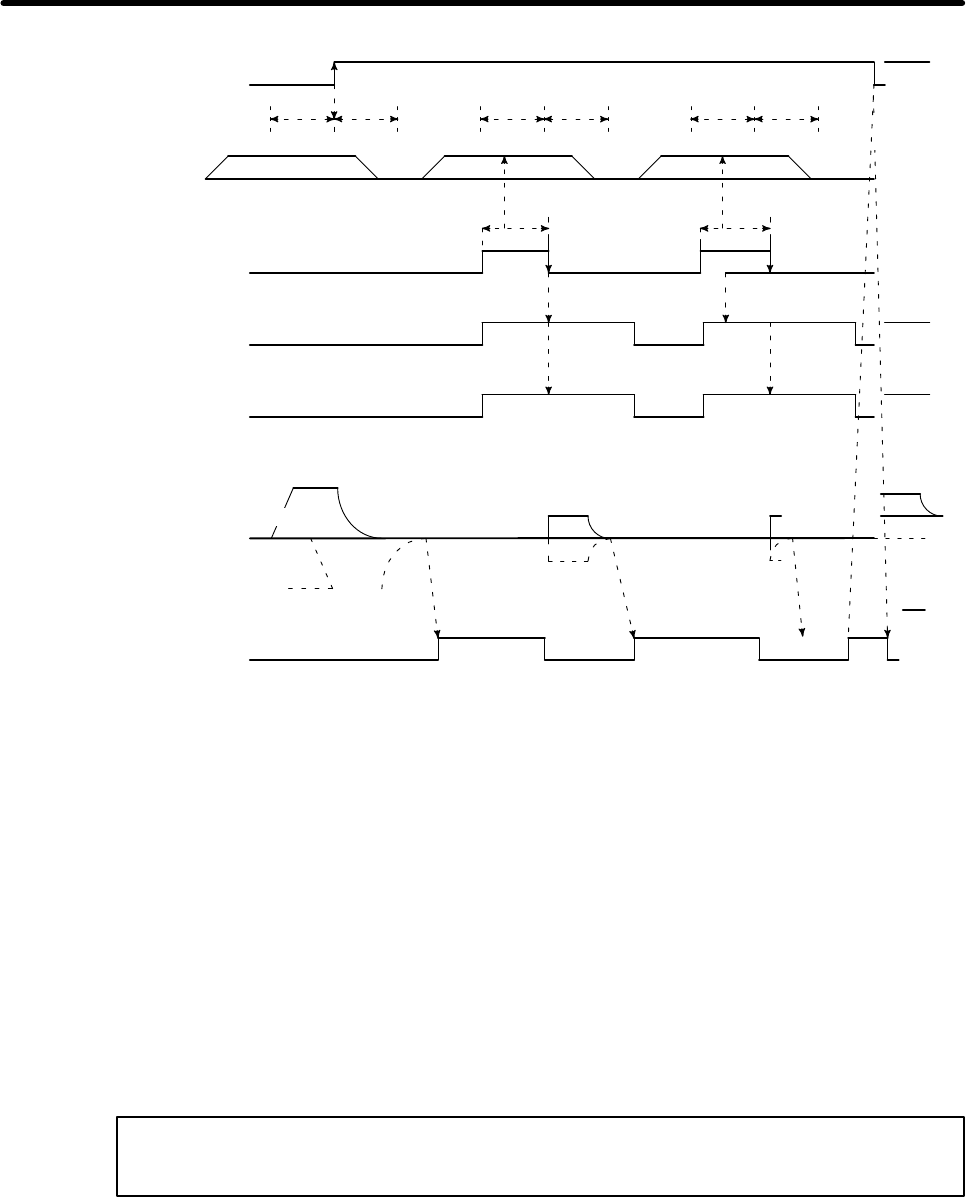

(2) Sample sequence when the spindle orientation with the stop position set externally function is executed

Stop 3

Spindle orientation command

ORCMA

Position command

SHA00-1

Stop position change command

INDXA

Rotational command at

stop position changing A

Short path command at

stop position changing of

setting stop position exterĆ

nally. A

Motor speed

Spindle orientation completion signal

ORARA

*1 = Should be at least 50 msec

*1 *1 *1 *1 *1 *1

*1 *1

Stop 1 Stop 2

Spindle

stop

ROTA

NRRO

Clockwise

Counter-clockwise

(Note 2)

(Note 1)

Stop (1)

⋅ A normal orientation command stops the spindle at the predetermined position.

⋅ The direction of rotation of the spindle motor is determined by the parameter.

⋅ When the function is executed for the first time after the power is turned on, the spindle rotates

at the orientation speed. The spindle stops at the predetermined position after the single rotation

signal is detected. When the function is executed for the second time or later, the spindle stops

at the predetermined position before it is rotated once.

⋅ If the data of the signal for specifying a stop position in spindle orientation, SHA00 to SHA11, has

already been set when the spindle orientation with the stop position set externally function is used

for the second time or later, the spindle is shifted by the angular displacement specified by the data

of the stop position detected at the rising edge of ORCMA. Then the spindle stops at the predeter-

mined position.

Stop (2), (3)

⋅ The spindle orientation with the stop position set externally function stops the spindle at the pre

determined position.

⋅ The direction of rotation of the spindle motor depends on ROTAA and NRROA.

NOTE 1 INDXA is valid only when ORCMA is set high.

NOTE 2 The machine tool builder can specify the signal as required.

Other notes:

1. If the spindle orientation function is started by ORCMA while the spindle is rotating, the forward spindle rotation

signal, SFRA, and the reverse spindle rotation signal, SRVA, must be set to zero for the sake of safety.

2. ORCMA must be set to zero by the tool change completion signal or the workpiece load/unload completion

signal that is provided by the machine tool builder.

3. Before the power is turned on ORCMA must be set to zero.

4. If the emergency stop function is executed while the spindle orientation is in progress, ORCMA must be

reset to zero.
