SERIES 15-150 MODEL B Connection manual Page 195

Connection manual

Page of 353

/ 353

B–62073E–1/04 2. INTERFACE BETWEEN CNC AND PMC–NA OR NB

– 189 –

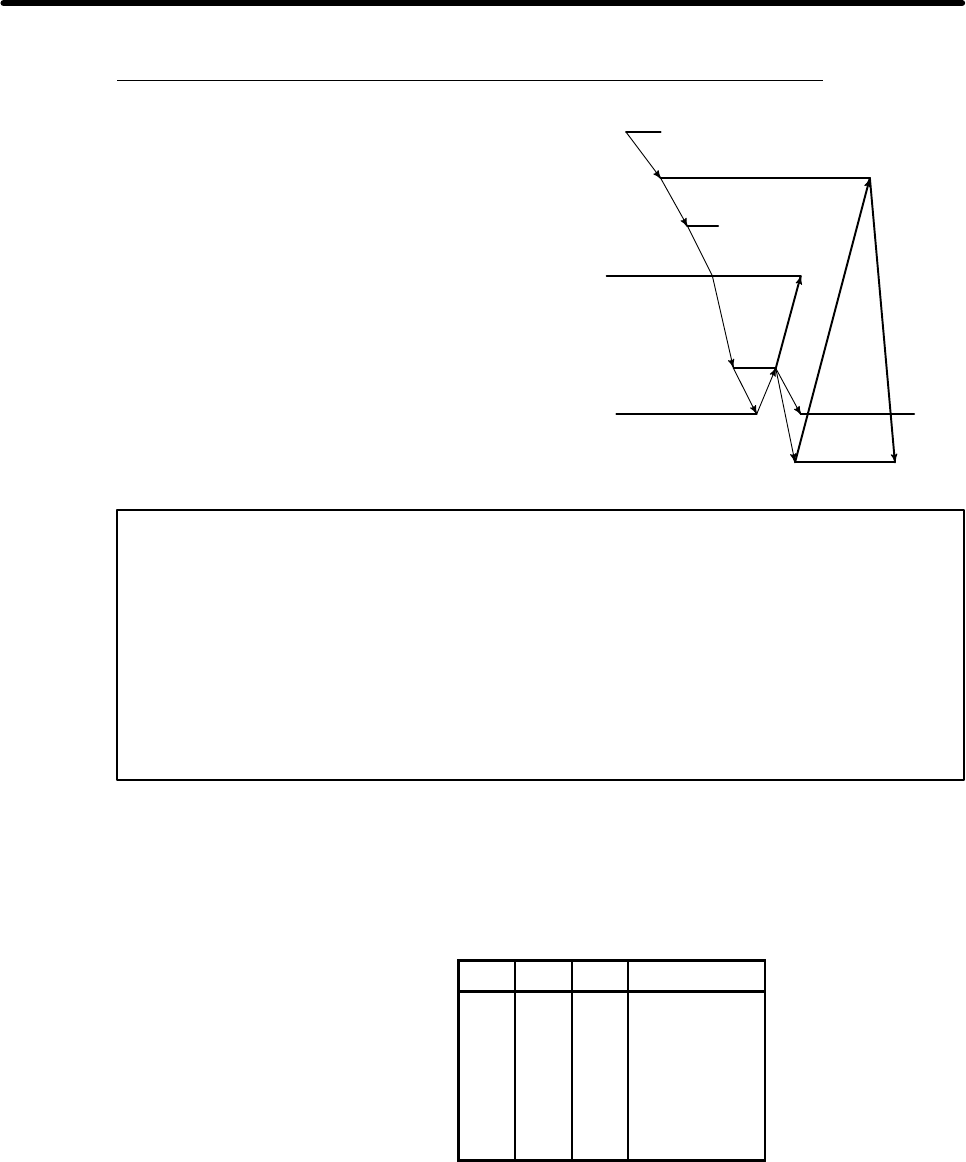

The following time chart shows the above sequence:

Time chart for exiting the spindle positioning mode and entering the spindle turning mode

(1) (2) (3) (4) (5) (6) (7) (8)

M command ( independent ) Mzz

Strobe signal MF

Spindle stop check signal SPSTP

Spindle position control

Spindle position control servo-ON

Spindle unclamp signal SUCLP

Spindle unclamp completion signal *SEUCL

Auxiliary function completion signal FIN

NOTE 1 Automatic operation stop signal *SP is disabled when operations are executed for exiting the

spindle turning mode and entering the spindle positioning mode (Mxx command), positioning

the spindle in the spindle positioning mode (Myy to Myy+5 commands and C command), or

exiting the spindle positioning mode and entering the spindle turning mode (Mzz command).

Automatic operation is not stopped until each of the above operations is completed even if the

*SP signal is turned off.

NOTE 2 Dry run signal DRN and machine lock signal MLK are invalid for spindle positioning.

NOTE 3 Miscellaneous function lock signal AFL is invalid for spindle positioning with an M command

(Mxx command, Myy to Myy+5 commands, and Mzz command).

(a) Spindle gear selection signals (GS1, GS2, GS4)

[Classification]

Input signals

[Function] These signals notify the control unit of the state of the gear between the spindle motor and

spindle. The gear ratio itself is not input; the currently selected gear among the several steps

of gear provided on the machine is input in binary.

GS4 GS2 GS1 Gear selection

1st step

2nd step

3rd step

4th step

5th step

6th step

7th step

8th step

The mode of the spindle control unit is changed from spindle control to position control in order

to exit the spindle turning mode and enter the spindle positioning mode. In position control,

the specified angle by which to turn the spindle is input to the error counter and converted to

a speed command to the motor. The factor for the conversion (loop gain multiplier) differs

depending on the gear ratio between the spindle motor and spindle. The loop gain multiplier

for the gear currently selected is set in the position control circuit based on the gear selection

signals. Set the loop gain multiplier for each gear in a parameter beforehand.

When the serial interface spindle is used, up to four steps of gear can be used. (See the sub-

sections on spindle serial output and Cs contour control function for details.)
