FANUC Series 16i /18i -TB
Specifications of Servo-Spindle synchronous control
function
7/
17
• Servo-Spindle synchronous control mode
The servo motor becomes a Servo-Spindle synchronous mode by making Servo-
Spindle synchronous signal SYSS '1'. The servo motor is accelerated up to the
same speed as the spindle specified by parameter No.3844 or decelerates when
entering the Servo-Spindle synchronous mode. When the de-and acceleration is
completed, Servo-Spindle synchronous mode acc/deceleration completion signal
SYAR becomes '1'. Afterwards, the servo motor rotates synchronizing with the
feedback pulse of the position coder.
The signal SYSSM becomes '1' when becoming a Servo-Spindle synchronous
mode. When signal SYSS is made '0', the Servo-Spindle synchronous mode is
released. When signal SYSS is made '0', the deceleration is begun. When the
releasing of synchronization is completed, signal SYSSM becomes '0'.

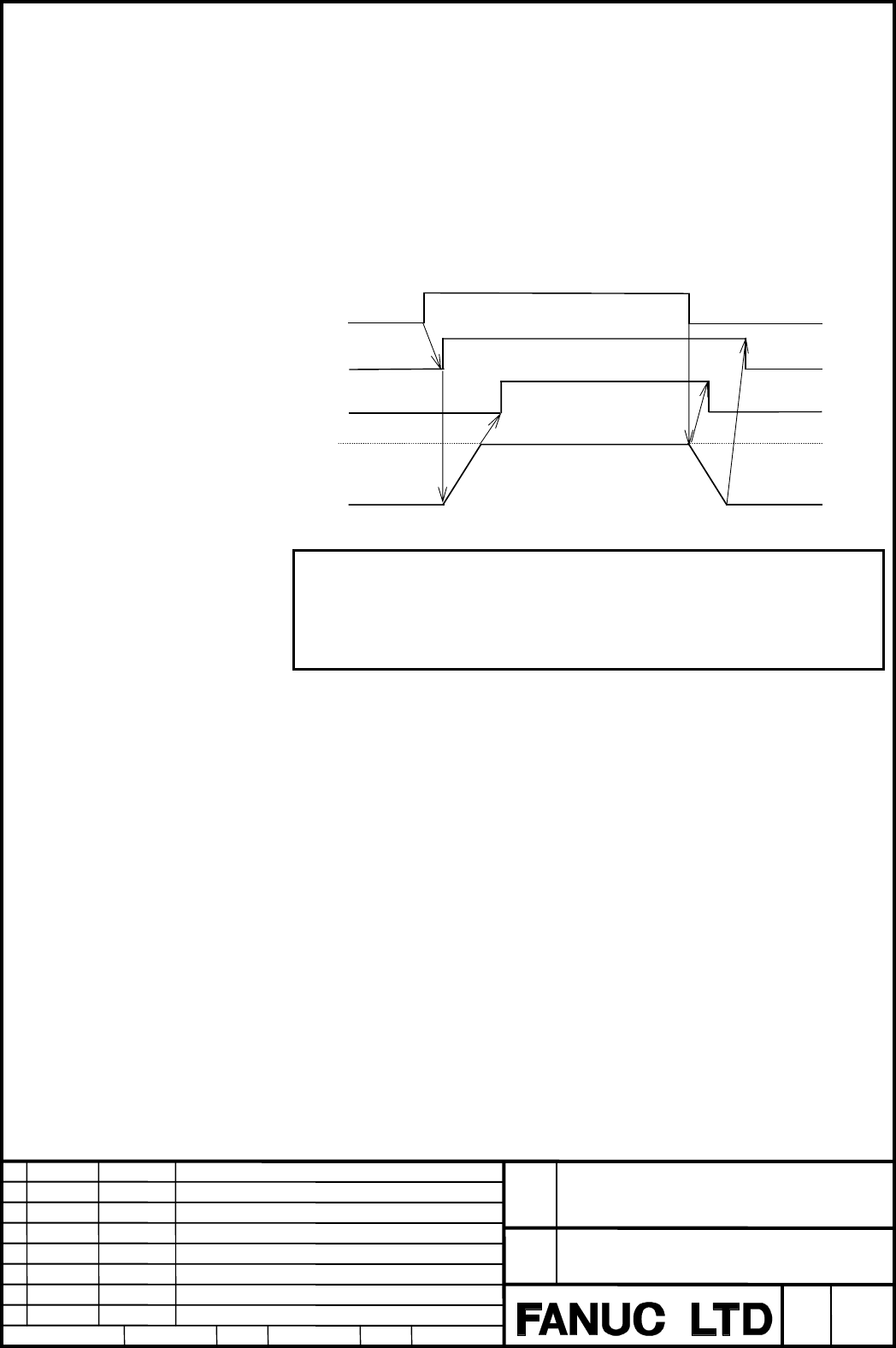

Spindle speed
Servo m otor speed
SYAR(Output)
SYSSM(Output)
SYSS(Input)
Note
As for the spindle control mode inside, the coordinates value is not updated.
Therefore, the relation between coordinates value and an actual machine position
is lost. In a word, the update of the coordinates value by the NC command in the
Servo-Spindle synchronous mode does not show the movement of an actual
machine.
• Relation to spindle control mode
The rotation command by the spindle control (SVSP,SVRxxI) becomes invalid in
the Servo-Spindle synchronous mode. When input signal SYSS is turned off, the
rotation command by the spindle control (SVSP,SVRxxI) becomes effective
again.
Previous page
Next page
