FS 16i/18i-TB, FS 16i/18i/21i-MB Machining Condition Selecting Function Additional Manual Page 11

Additional Manual
2002/03/11 T.Inagaki E.Genma
A-78708EN
FANUC Series 16i/18i –TB
FANUC Series 16i/18i/21i –MB
Machining condition selecting function
Title
Drawing No.
Page
Descri
p
tionDate Edit
10/31
02 020423 T.Inagaki Make an overall revision
Caution
1. On APC/AICC/AI-APC/AI-nano/HPCC,this item is common to all axis.
2. On AI-HPCC/AI-nano-HPCC, this item need to be set for each axis.
The acceleration change time (bell-type)
The acceleration change time for bell-shaped acc/dec before interpolation is
set. (Unit: ms)
[Valid data range] : 0-100(ms: APC/AICC/AI-APC/AI-nano)
: 0-200(ms: HPCC)
[Data size] : Byte(APC/AICC/AI-APC/AI-nano)
: Dword(HPCC/AI-HPCC/AI-nano-HPCC)
When this item is set, following parameters are changed.
[APC/AICC/AI-APC/AI-nano]
Prm.13612(LV1 : highest priority to velocity)
Prm.13613(LV10: highest priority to precision)
[HPCC/AI-HPCC/AI-nano HPCC]
Prm.13662(LV1 : highest priority to velocity)
Prm.13663(LV10: highest priority to precision)
By selecting the precision level, following parameters are set.
[APC/AICC/AI-APC/AI-nano]
Prm.1772 : Time constant for bell-shaped acc/dec of acceleration time
fine type before look-ahead interpolation.
[HPCC/AI-HPCC/AI-nano HPCC]
Prm.8416 : Acceleration change time for look-ahead bell-shaped acc/dec
before interpolation.

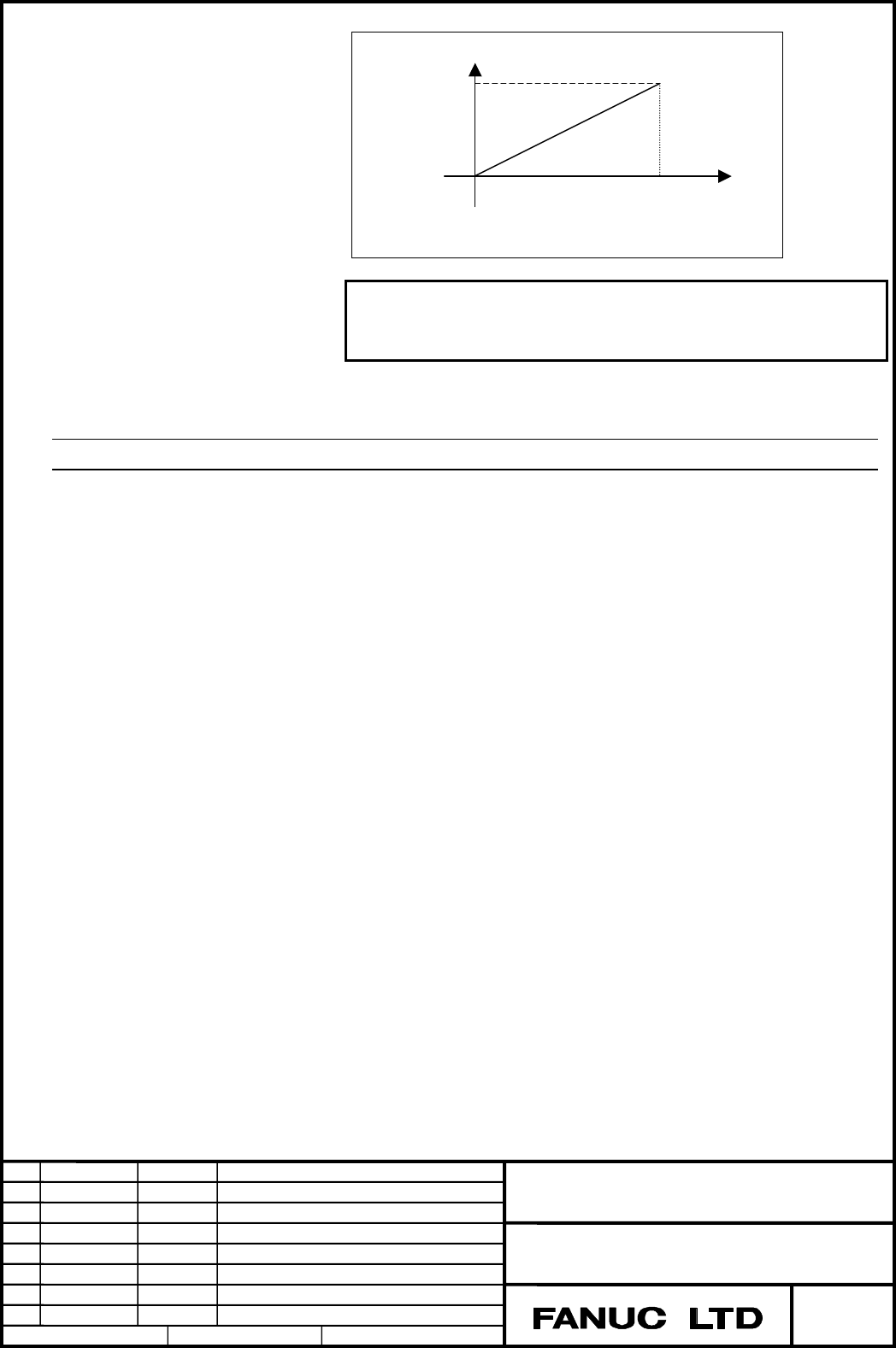

Velocity
Max acceleration
No.1770 or
No.8400
0 No.1771 or Time
No.8401 or
No.19510
